ATUM 29XD3 SOMT 09T308

Name: ATUM 29XD3 SOMT 09T308
Brand: Axior
SKU: ATUM 29XD3 SOMT 09T308

ATUM XD3 SOMT series · see all 40 sizes

This size is built for the insert designation SOMT 09T308 (as listed in the catalogue data).

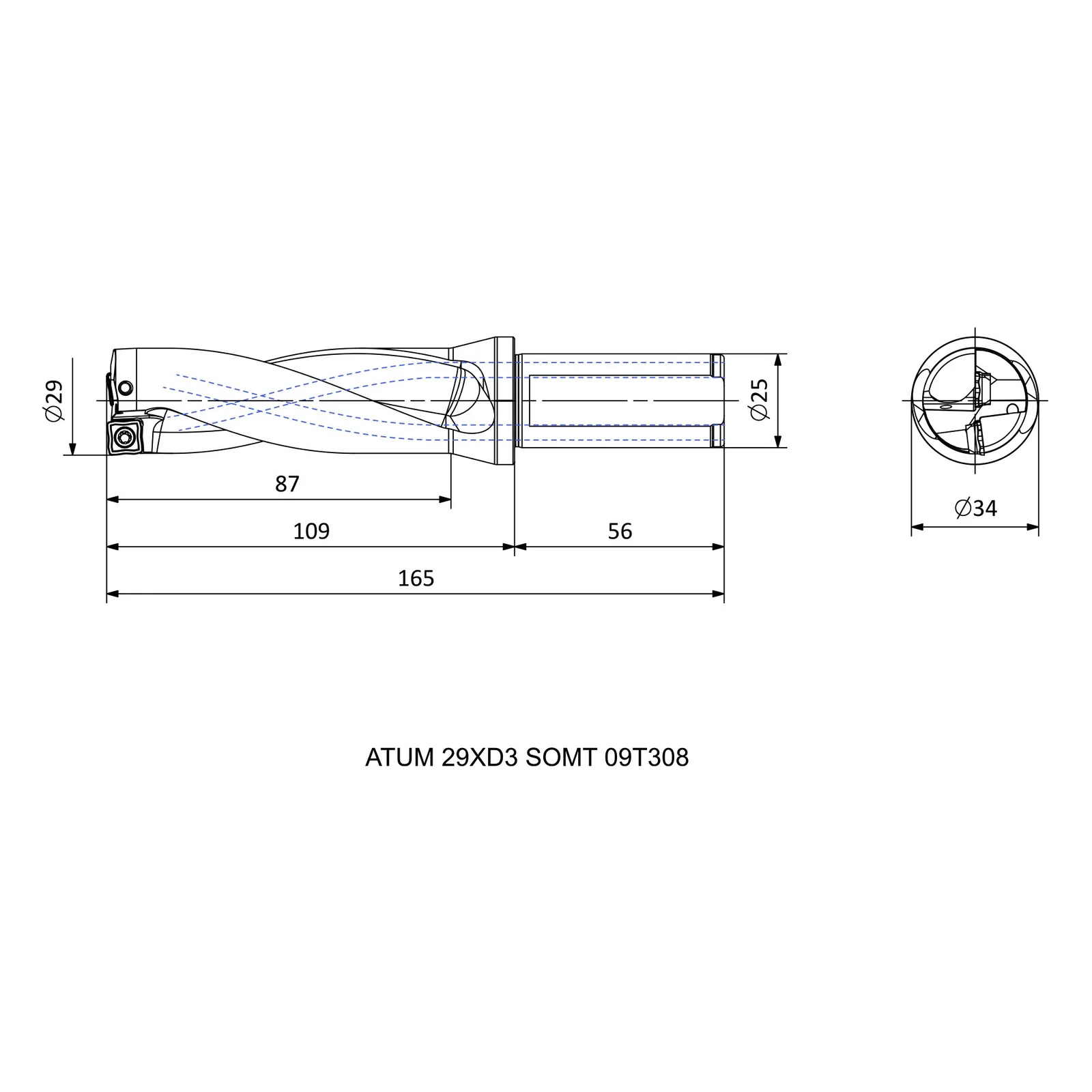

Specifications — ATUM 29XD3 SOMT 09T308

Insert Code	Insert designation	SOMT 09T308
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	29
DCON	Connection diameter (mm)	25
DCSFMS	Contact-face diameter, machine side (mm)	34
OAL	Overall length (mm)	165
LU	Usable length (mm)	87
LPR	Protruding / projection length (mm)	109
LS	Shank length (mm)	56
X max [mm]	Adjustment range, max (mm)	0.5
X min [mm]	Adjustment range, min (mm)	30

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 14XD3 SOMT 050204	R	14	20	25
ATUM 14.5XD3 SOMT 050204	R	14.5	20	25
ATUM 15XD3 SOMT 050204	R	15	20	25
ATUM 15.5XD3 SOMT 050204	R	15.5	20	25
ATUM 16XD3 SOMT 050204	R	16	25	34
ATUM 16.5XD3 SOMT 060204	R	16.5	25	34
ATUM 17XD3 SOMT 060204	R	17	25	34
ATUM 17.5XD3 SOMT 060204	R	17.5	25	34
ATUM 18XD3 SOMT 060204	R	18	25	34
ATUM 18.5XD3 SOMT 060204	R	18.5	25	34
ATUM 19XD3 SOMT 060204	R	19	25	34
ATUM 19.5XD3 SOMT 070306	R	19.5	25	34
ATUM 20XD3 SOMT 070306	R	20	25	34
ATUM 20.5XD3 SOMT 070306	R	20.5	25	34
ATUM 21XD3 SOMT 070306	R	21	25	34
ATUM 22XD3 SOMT 070306	R	22	25	34
ATUM 22.5XD3 SOMT 08T306	R	22.5	25	34
ATUM 23XD3 SOMT 08T306	R	23	25	34
ATUM 23.5XD3 SOMT 08T306	R	23.5	25	34
ATUM 24XD3 SOMT 08T306	R	24	25	34
ATUM 24.5XD3 SOMT 08T306	R	24.5	25	34
ATUM 25XD3 SOMT 08T306	R	25	25	34
ATUM 26XD3 SOMT 08T306	R	26	25	34
ATUM 27XD3 SOMT 09T308	R	27	25	34
ATUM 27.5XD3 SOMT 09T308	R	27.5	25	34
ATUM 28XD3 SOMT 09T308	R	28	25	34
ATUM 29XD3 SOMT 09T308	R	29	25	34
ATUM 30XD3 SOMT 09T308	R	30	32	44
ATUM 32XD3 SOMT 11T308	R	32	32	44
ATUM 33XD3 SOMT 11T308	R	33	32	44
ATUM 34XD3 SOMT 11T308	R	34	32	44
ATUM 35XD3 SOMT 11T308	R	35	32	44
ATUM 36XD3 SOMT 11T308	R	36	32	44
ATUM 37XD3 SOMT 130408	R	37	32	44
ATUM 38XD3 SOMT 130408	R	38	32	44
ATUM 39XD3 SOMT 130408	R	39	32	44
ATUM 40XD3 SOMT 130408	R	40	32	44
ATUM 45XD3 SOMT 150510	R	45	40	54
ATUM 49XD3 SOMT 150510	R	49	40	54
ATUM 50XD3 SOMT 150510	R	50	40	54
