Tool Holders / Atum Drill
ATUM 40XD3 SP.. 110408
ATUM XD3 SP1 series · see all 32 sizes
Insert compatibility
This size is built for the insert designation SP.. 110408 (as listed in the catalogue data).

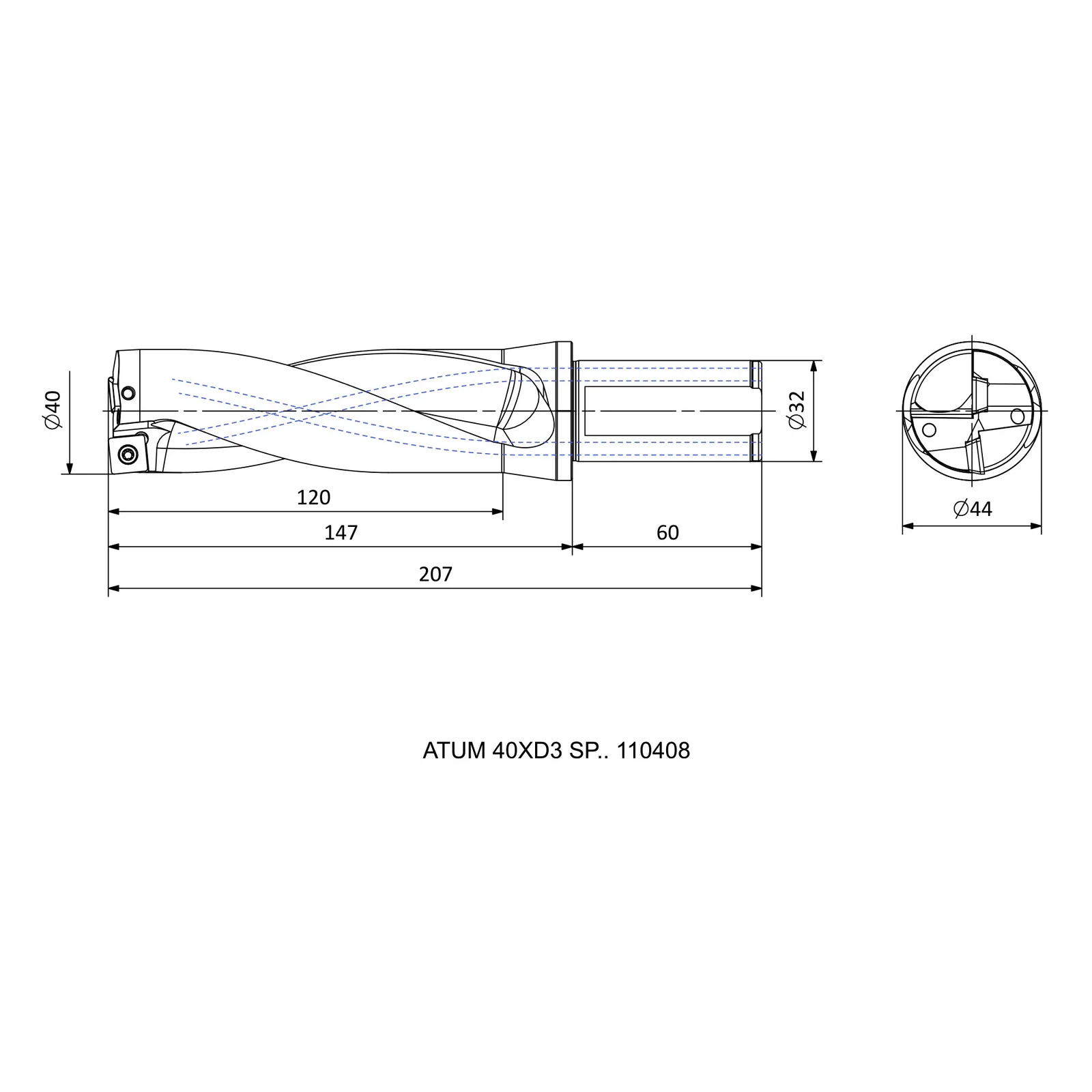

Specifications — ATUM 40XD3 SP.. 110408
| Insert Code | Insert designation | SP.. 110408 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 40 |
| DCON | Connection diameter (mm) | 32 |
| DCSFMS | Contact-face diameter, machine side (mm) | 44 |
| OAL | Overall length (mm) | 207 |
| LU | Usable length (mm) | 120 |
| LPR | Protruding / projection length (mm) | 147 |
| LS | Shank length (mm) | 60 |
| X max [mm] | Adjustment range, max (mm) | 0 |
| X min [mm] | Adjustment range, min (mm) | 40 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
