ATUM 47XD3 SP.. 140512

Name: ATUM 47XD3 SP.. 140512
Brand: Axior
SKU: ATUM 47XD3 SP.. 140512

ATUM XD3 SP1 series · see all 32 sizes

This size is built for the insert designation SP.. 140512 (as listed in the catalogue data).

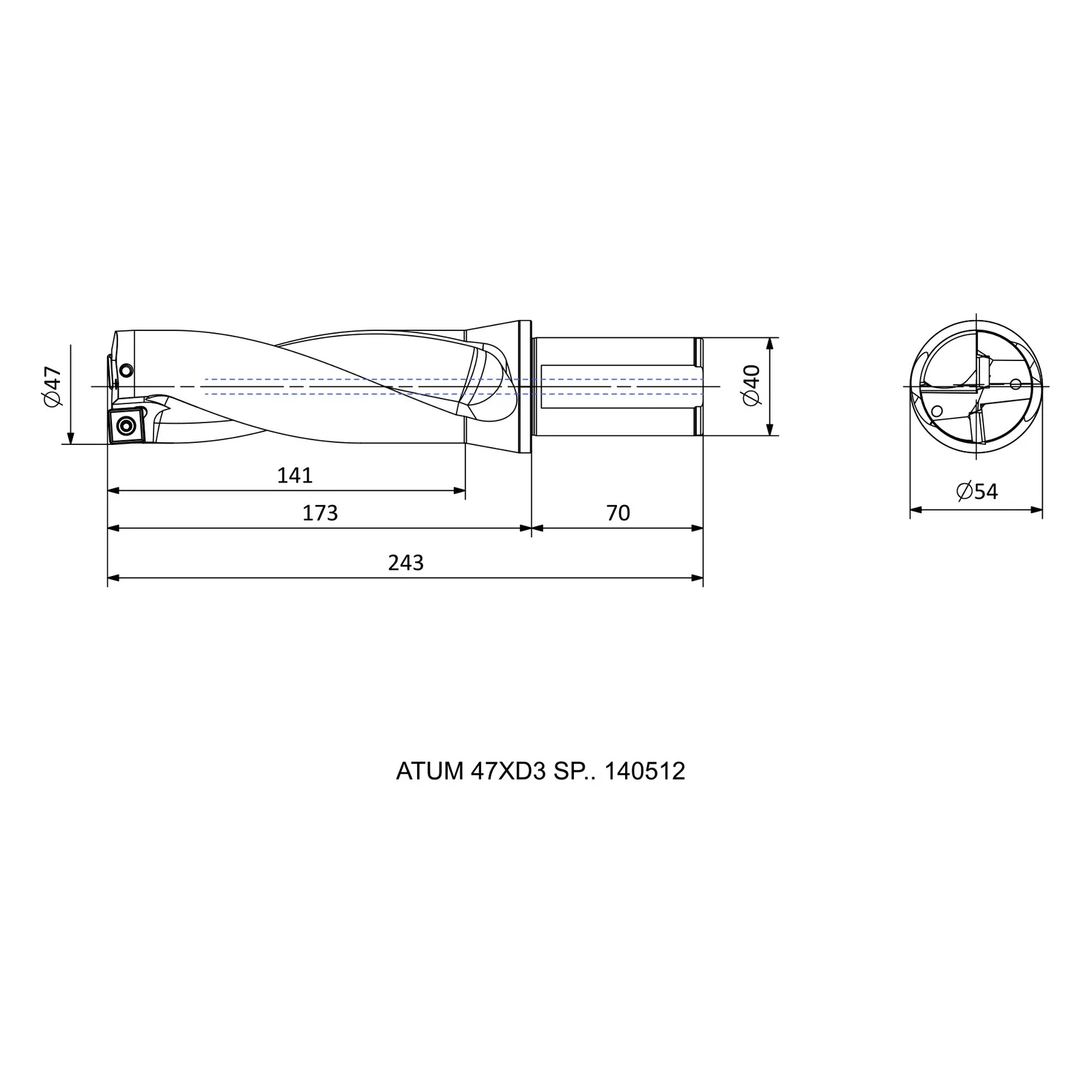

Specifications — ATUM 47XD3 SP.. 140512

Insert Code	Insert designation	SP.. 140512
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	47
DCON	Connection diameter (mm)	40
DCSFMS	Contact-face diameter, machine side (mm)	54
OAL	Overall length (mm)	243
LU	Usable length (mm)	141
LPR	Protruding / projection length (mm)	173
LS	Shank length (mm)	70
X max [mm]	Adjustment range, max (mm)	0.2
X min [mm]	Adjustment range, min (mm)	47.4

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 48.5XD3 SP.. 140512	R	48.5	40	54
ATUM 34XD3 SP.. 110408	R	34	32	44
ATUM 34.5XD3 SP.. 110408	R	34.5	32	44
ATUM 35XD3 SP.. 110408	R	35	32	44
ATUM 35.5XD3 SP.. 110408	R	35.5	32	44
ATUM 36XD3 SP.. 110408	R	36	32	44
ATUM 36.5XD3 SP.. 110408	R	36.5	32	44
ATUM 37XD3 SP.. 110408	R	37	32	44
ATUM 37.5XD3 SP.. 110408	R	37.5	32	44
ATUM 38XD3 SP.. 110408	R	38	32	44
ATUM 38.5XD3 SP.. 110408	R	38.5	32	44
ATUM 39XD3 SP.. 110408	R	39	32	44
ATUM 39.5XD3 SP.. 110408	R	39.5	32	44
ATUM 40.5XD3 SP.. 110408	R	40.5	32	44
ATUM 40XD3 SP.. 110408	R	40	32	44
ATUM 41.5XD3 SP.. 110408	R	41.5	32	44
ATUM 41XD3 SP.. 110408	R	41	32	44
ATUM 42.5XD3 SP.. 140512	R	42.5	32	44
ATUM 43XD3 SP.. 140512	R	43	32	44
ATUM 43.5XD3 SP.. 140512	R	43.5	32	44
ATUM 42XD3 SP.. 140512	R	42	32	44
ATUM 44.5XD3 SP.. 140512	R	44.5	32	44
ATUM 44XD3 SP.. 140512	R	44	32	44
ATUM 45.5XD3 SP.. 140512	R	45.5	40	54
ATUM 45XD3 SP.. 140512	R	45	40	54
ATUM 46XD3 SP.. 140512	R	46	40	54
ATUM 47XD3 SP.. 140512	R	47	40	54
ATUM 48XD3 SP.. 140512	R	48	40	54
ATUM 49XD3 SP.. 140512	R	49	40	54
ATUM 50XD3 SP.. 140512	R	50	40	54
ATUM 51XD3 SP.. 140512	R	51	40	54
ATUM 52XD3 SP.. 140512	R	52	40	54
