Tool Holders / Atum Drill
ATUM 24XD3 WCM. 050308
ATUM XD3 WCM series · see all 38 sizes
Insert compatibility
This size is built for the insert designation WCM. 050308 (as listed in the catalogue data).

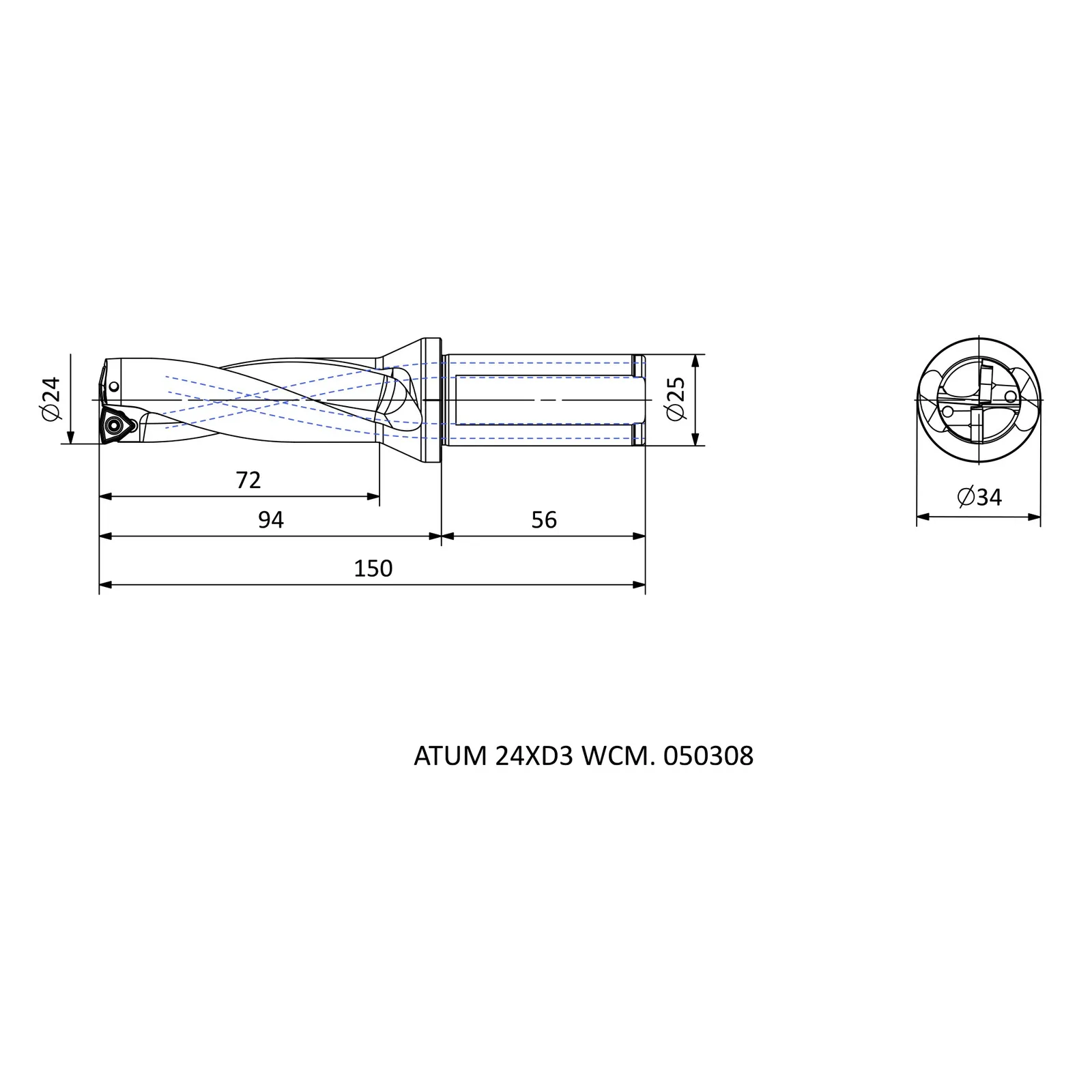

Specifications — ATUM 24XD3 WCM. 050308
| Insert Code | Insert designation | WCM. 050308 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 24 |
| DCON | Connection diameter (mm) | 25 |
| DCSFMS | Contact-face diameter, machine side (mm) | 34 |
| OAL | Overall length (mm) | 150 |
| LU | Usable length (mm) | 72 |
| LPR | Protruding / projection length (mm) | 94 |
| LS | Shank length (mm) | 56 |
| X max [mm] | Adjustment range, max (mm) | 1.4 |
| X min [mm] | Adjustment range, min (mm) | 26.8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
