ATUM 33.5XD3 WCM. 06T308

Name: ATUM 33.5XD3 WCM. 06T308
Brand: Axior
SKU: ATUM 33.5XD3 WCM. 06T308

ATUM XD3 WCM series · see all 38 sizes

This size is built for the insert designation WCM. 06T308 (as listed in the catalogue data).

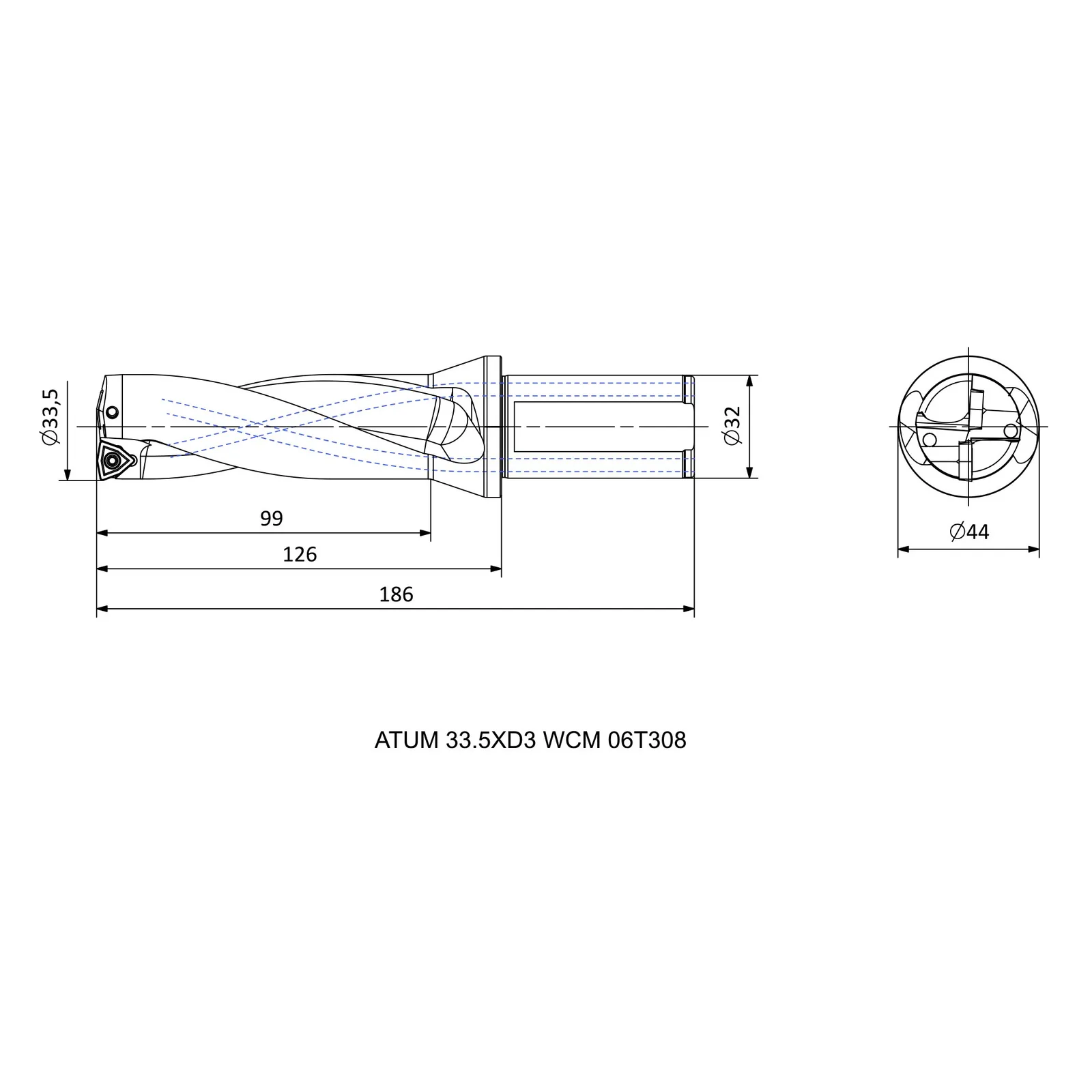

Specifications — ATUM 33.5XD3 WCM. 06T308

Insert Code	Insert designation	WCM. 06T308
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	33.5
DCON	Connection diameter (mm)	32
DCSFMS	Contact-face diameter, machine side (mm)	44
OAL	Overall length (mm)	186
LU	Usable length (mm)	99
LPR	Protruding / projection length (mm)	126
LS	Shank length (mm)	60
X max [mm]	Adjustment range, max (mm)	1.9
X min [mm]	Adjustment range, min (mm)	37.3

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 21.5XD3 WCM. 040208	R	21.5	25	34
ATUM 22XD3 WCM. 040208	R	22	25	34
ATUM 16XD3 WCM. 030208	R	16	25	34
ATUM 16.5XD3 WCM. 030208	R	16.5	25	34
ATUM 17XD3 WCM. 030208	R	17	25	34
ATUM 17.5XD3 WCM. 030208	R	17.5	25	34
ATUM 18XD3 WCM. 030208	R	18	25	34
ATUM 18.5XD3 WCM. 030208	R	18.5	25	34
ATUM 19XD3 WCM. 030208	R	19	25	34
ATUM 19.5XD3 WCM. 030208	R	19.5	25	34
ATUM 20XD3 WCM. 040208	R	20	25	34
ATUM 20.5XD3 WCM. 040208	R	20.5	25	34
ATUM 21XD3 WCM. 040208	R	21	25	34
ATUM 22.5XD3 WCM. 040208	R	22.5	25	34
ATUM 23XD3 WCM. 040208	R	23	25	34
ATUM 23.5XD3 WCM. 040208	R	23.5	25	34
ATUM 24XD3 WCM. 050308	R	24	25	34
ATUM 24.5XD3 WCM. 050308	R	24.5	25	34
ATUM 25XD3 WCM. 050308	R	25	25	34
ATUM 25.5XD3 WCM. 050308	R	25.5	25	34
ATUM 26XD3 WCM. 050308	R	26	25	34
ATUM 26.5XD3 WCM. 050308	R	26.5	25	34
ATUM 27XD3 WCM. 050308	R	27	25	34
ATUM 27.5XD3 WCM. 050308	R	27.5	25	34
ATUM 28XD3 WCM. 050308	R	28	25	34
ATUM 28.5XD3 WCM. 050308	R	28.5	25	34
ATUM 29XD3 WCM. 050308	R	29	25	34
ATUM 29.5XD3 WCM. 050308	R	29.5	25	34
ATUM 30XD3 WCM. 06T308	R	30	32	44
ATUM 30.5XD3 WCM. 06T308	R	30.5	32	44
ATUM 31XD3 WCM. 06T308	R	31	32	44
ATUM 31.5XD3 WCM. 06T308	R	31.5	32	44
ATUM 32XD3 WCM. 06T308	R	32	32	44
ATUM 32.5XD3 WCM. 06T308	R	32.5	32	44
ATUM 33XD3 WCM. 06T308	R	33	32	44
ATUM 33.5XD3 WCM. 06T308	R	33.5	32	44
ATUM 34XD3 WCM. 06T308	R	34	32	44
ATUM 34.5XD3 WCM. 06T308	R	34.5	32	44
