Tool Holders / Atum Drill
ATUM 37XD3 WCM. 06T308
ATUM XD3 WCM1 series · see all 37 sizes
Insert compatibility
This size is built for the insert designation WCM. 06T308 (as listed in the catalogue data).

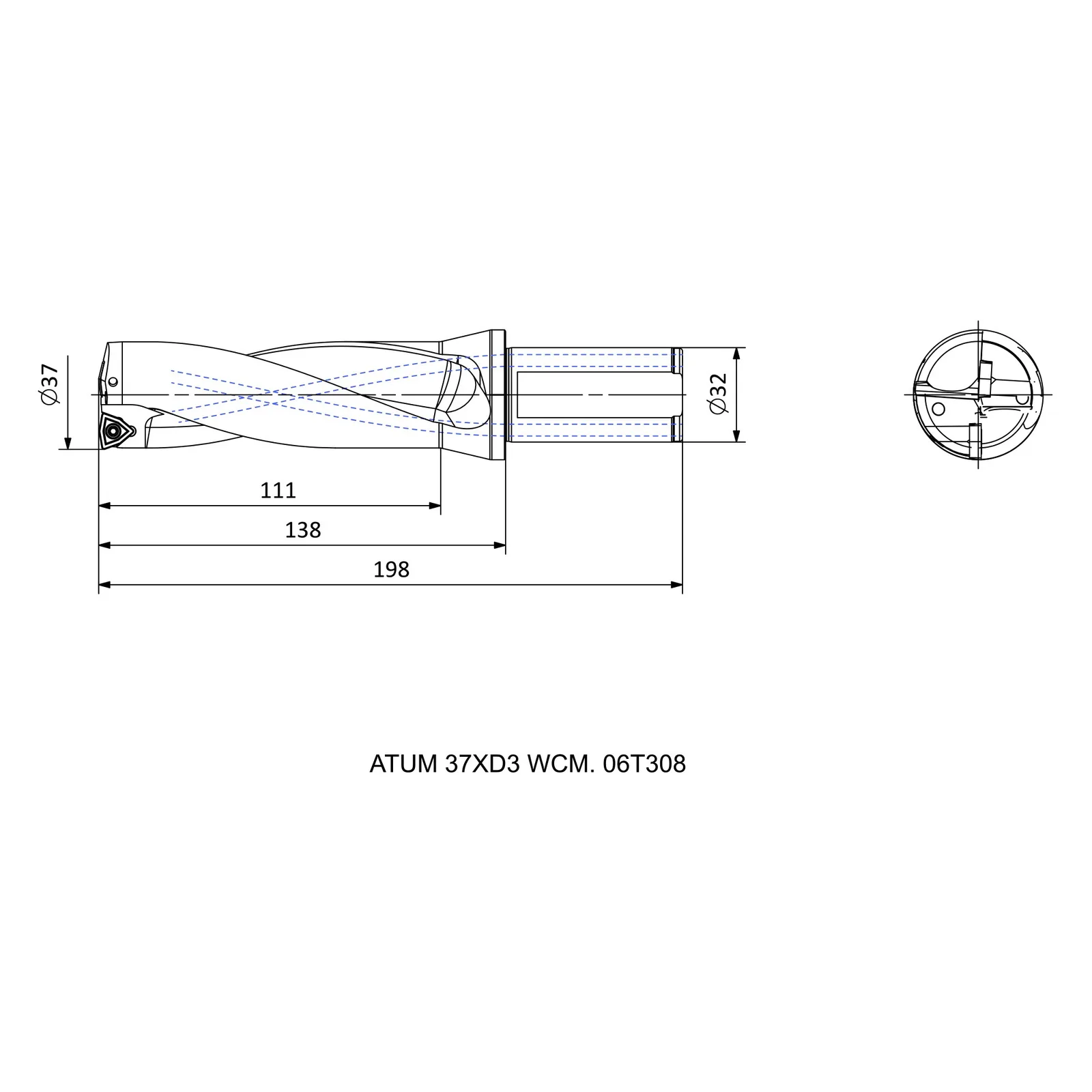

Specifications — ATUM 37XD3 WCM. 06T308
| Insert Code | Insert designation | WCM. 06T308 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 37 |
| DCON | Connection diameter (mm) | 32 |
| DCSFMS | Contact-face diameter, machine side (mm) | 44 |
| OAL | Overall length (mm) | 198 |
| LU | Usable length (mm) | 111 |
| LPR | Protruding / projection length (mm) | 138 |
| LS | Shank length (mm) | 60 |
| X max [mm] | Adjustment range, max (mm) | 1.8 |
| X min [mm] | Adjustment range, min (mm) | 40.6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
