ATUM 55XD3 WCM. 080412

Name: ATUM 55XD3 WCM. 080412
Brand: Axior
SKU: ATUM 55XD3 WCM. 080412

ATUM XD3 WCM1 series · see all 37 sizes

This size is built for the insert designation WCM. 080412 (as listed in the catalogue data).

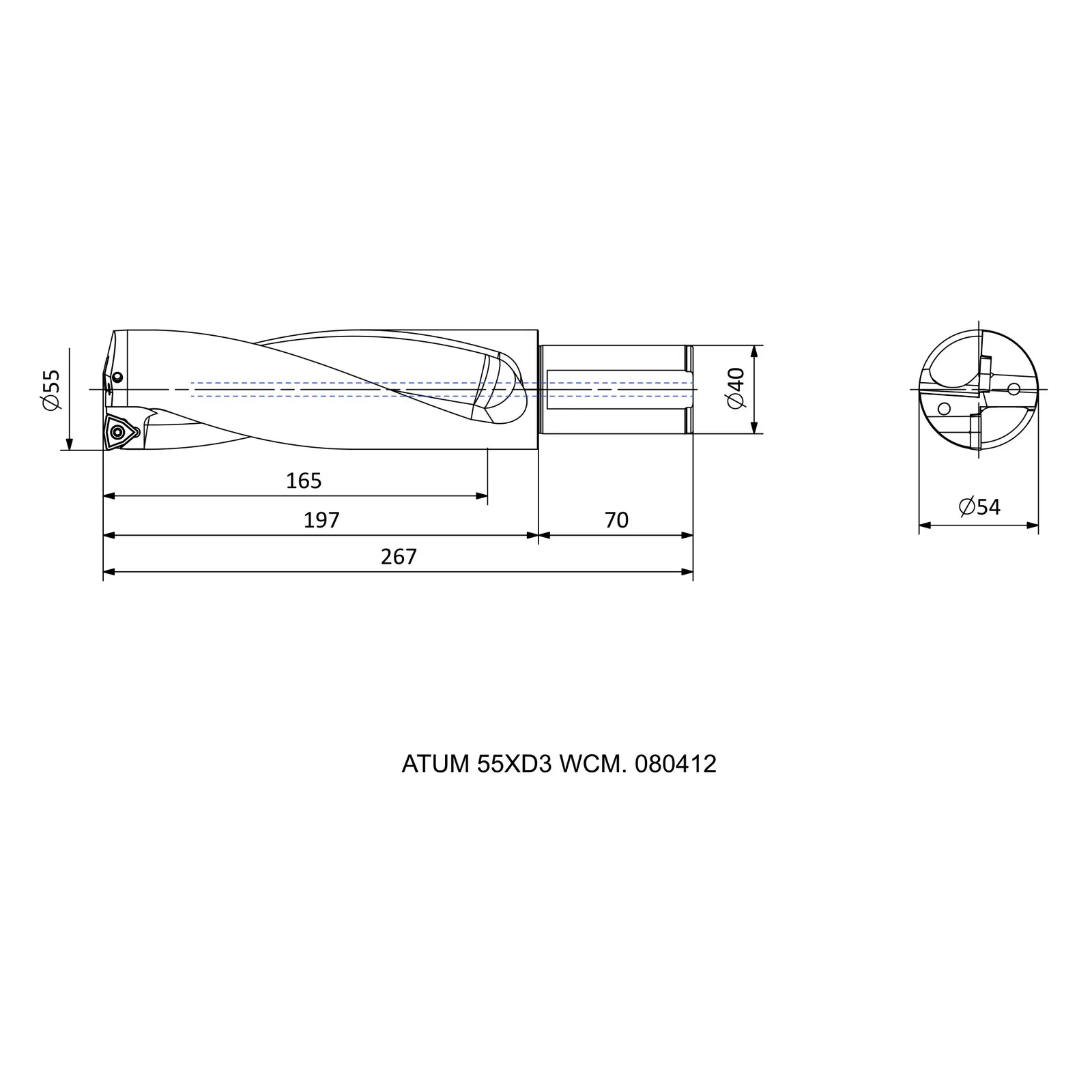

Specifications — ATUM 55XD3 WCM. 080412

Insert Code	Insert designation	WCM. 080412
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	55
DCON	Connection diameter (mm)	40
DCSFMS	Contact-face diameter, machine side (mm)	54
OAL	Overall length (mm)	267
LU	Usable length (mm)	165
LPR	Protruding / projection length (mm)	197
LS	Shank length (mm)	70
X max [mm]	Adjustment range, max (mm)	0.8
X min [mm]	Adjustment range, min (mm)	56.6

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 35XD3 WCM. 06T308	R	35	32	44
ATUM 35.5XD3 WCM. 06T308	R	35.5	32	44
ATUM 36XD3 WCM. 06T308	R	36	32	44
ATUM 36.5XD3 WCM. 06T308	R	36.5	32	44
ATUM 37XD3 WCM. 06T308	R	37	32	44
ATUM 37.5XD3 WCM. 06T308	R	37.5	32	44
ATUM 38XD3 WCM. 06T308	R	38	32	44
ATUM 38.5XD3 WCM. 06T308	R	38.5	32	44
ATUM 39XD3 WCM. 06T308	R	39	32	44
ATUM 39.5XD3 WCM. 06T308	R	39.5	32	44
ATUM 40XD3 WCM. 06T308	R	40	32	44
ATUM 40.5XD3 WCM. 06T308	R	40.5	32	44
ATUM 41XD3 WCM. 06T308	R	41	32	44
ATUM 41.5XD3 WCM. 06T308	R	41.5	32	44
ATUM 42XD3 WCM. 06T308	R	42	32	44
ATUM 42.5XD3 WCM. 06T308	R	42.5	32	44
ATUM 43XD3 WCM. 06T308	R	43	32	44
ATUM 43.5XD3 WCM. 06T308	R	43.5	32	44
ATUM 44XD3 WCM. 06T308	R	44	32	44
ATUM 44.5XD3 WCM. 06T308	R	44.5	32	44
ATUM 45XD3 WCM. 080412	R	45	40	54
ATUM 45.5XD3 WCM. 080412	R	45.5	40	54
ATUM 46XD3 WCM. 080412	R	46	40	54
ATUM 47XD3 WCM. 080412	R	47	40	54
ATUM 48XD3 WCM. 080412	R	48	40	54
ATUM 49XD3 WCM. 080412	R	49	40	54
ATUM 50XD3 WCM. 080412	R	50	40	54
ATUM 51XD3 WCM. 080412	R	51	40	54
ATUM 52XD3 WCM. 080412	R	52	40	54
ATUM 53XD3 WCM. 080412	R	53	40	54
ATUM 54XD3 WCM. 080412	R	54	40	54
ATUM 55XD3 WCM. 080412	R	55	40	54
ATUM 56XD3 WCM. 080412	R	56	40	64
ATUM 57XD3 WCM. 080412	R	57	40	64
ATUM 58XD3 WCM. 080412	R	58	40	64
ATUM 59XD3 WCM. 080412	R	59	40	64
ATUM 60XD3 WCM. 080412	R	60	40	64
