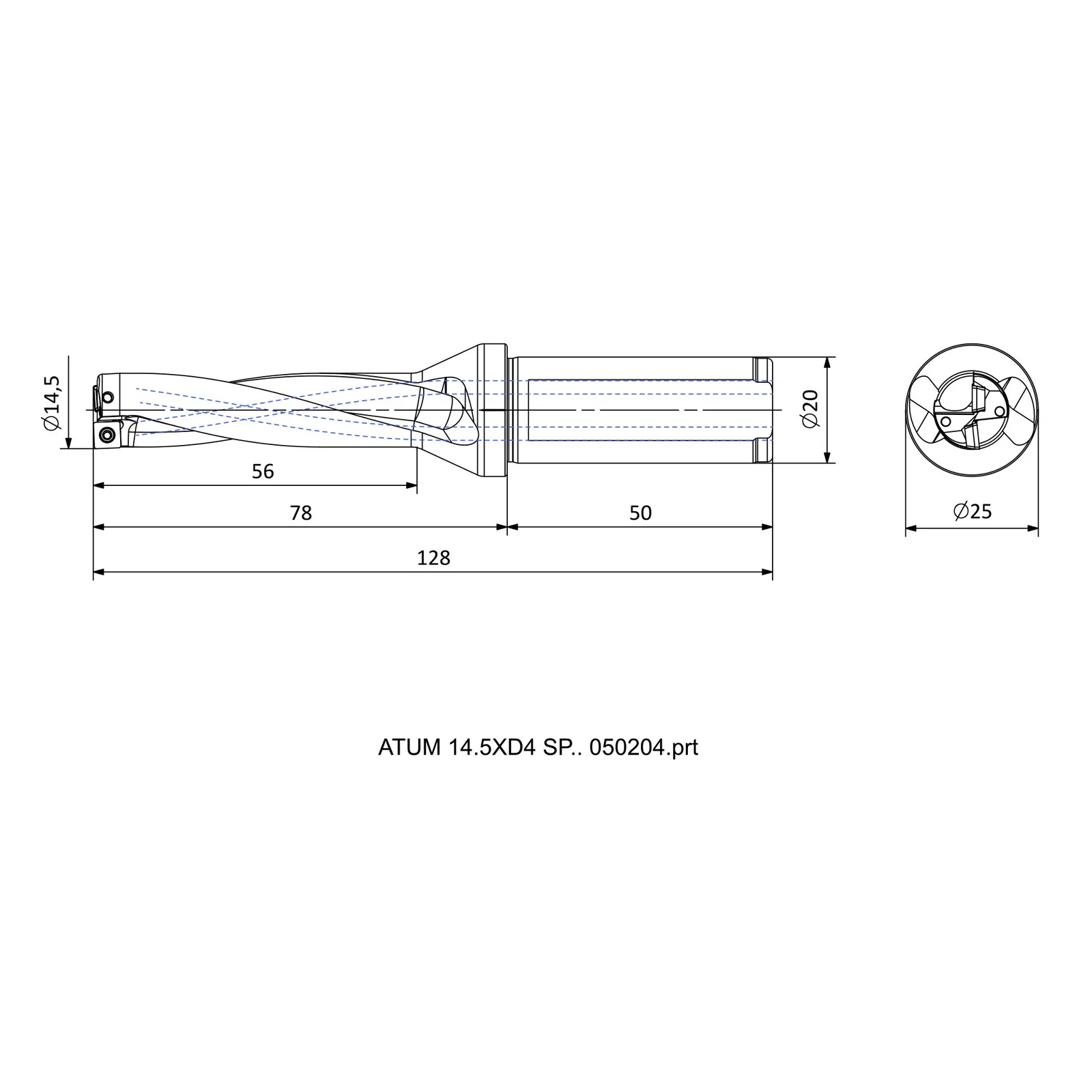

ATUM 14.5XD4 SP.. 050204 — dimensioned drawing
Tool Holders / Atum Drill

ATUM 14.5XD4 SP.. 050204

ATUM XD4 SP series · see all 48 sizes

Insert compatibility

This size is built for the insert designation SPGT 050204 (as listed in the catalogue data).

Ask about this size

Specifications — ATUM 14.5XD4 SP.. 050204

Insert Code Insert designation SPGT 050204
Product Direction Cutting direction (hand) R
DC Cutting diameter (mm) 14.5
DCON Connection diameter (mm) 20
DCSFMS Contact-face diameter, machine side (mm) 25
OAL Overall length (mm) 128
LU Usable length (mm) 56
LPR Protruding / projection length (mm) 78
LS Shank length (mm) 50
X max [mm] Adjustment range, max (mm) 0.6
X min [mm] Adjustment range, min (mm) 15.7

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 48 sizes in ATUM XD4 SP

Product codeCutting direction (hand)Cutting diameter (mm)Connection diameter (mm)Contact-face diameter, machine side (mm)
ATUM 15.5XD4 SP.. 060204 R15.52025
ATUM 16.5XD4 SP.. 060204 R16.52534
ATUM 20.5XD4 SP.. 060204 R20.52534
ATUM 45XD4 SP.. 140512 R454054
ATUM 21.5XD4 SP.. 060204 R21.52534
ATUM 22.5XD4 SP.. 07T308 R22.52534
ATUM 24.5XD4 SP.. 07T308 R24.52534
ATUM 26.5XD4 SP.. 07T308 R26.52534
ATUM 25.5XD4 SP.. 07T308 R24.52534
ATUM 13XD4 SP.. 050204 R132025
ATUM 14XD4 SP.. 050204 R142025
ATUM 14.5XD4 SP.. 050204 R14.52025
ATUM 15XD4 SP.. 050204 R152025
ATUM 16XD4 SP.. 060204 R162534
ATUM 17XD4 SP.. 060204 R172534
ATUM 17.5XD4 SP.. 060204 R17.52534
ATUM 18XD4 SP.. 060204 R182534
ATUM 19XD4 SP.. 060204 R192534
ATUM 19.5XD4 SP.. 060204 R19.52534
ATUM 20XD4 SP.. 060204 R202534
ATUM 21XD4 SP.. 060204 R212534
ATUM 22XD4 SP.. 07T308 R222534
ATUM 23XD4 SP.. 07T308 R232534
ATUM 23.5XD4 SP.. 07T308 R23.52534
ATUM 24XD4 SP.. 07T308 R242534
ATUM 25XD4 SP.. 07T308 R252534
ATUM 26XD4 SP.. 07T308 R262534
ATUM 27XD4 SP.. 07T308 R272534
ATUM 27.5XD4 SP.. 07T308 R27.52534
ATUM 28XD4 SP.. 090408 R282534
ATUM 29XD4 SP.. 090408 R292534
ATUM 30XD4 SP.. 090408 R303244
ATUM 31XD4 SP.. 090408 R313244
ATUM 32XD4 SP.. 090408 R323244
ATUM 33XD4 SP.. 090408 R333244
ATUM 33.5XD4 SP.. 090408 R33.53244
ATUM 34XD4 SP.. 110408 R343244
ATUM 35XD4 SP.. 110408 R353244
ATUM 36XD4 SP.. 110408 R363244
ATUM 37XD4 SP.. 110408 R373244
ATUM 38XD4 SP.. 110408 R383244
ATUM 39XD4 SP.. 110408 R393244
ATUM 41XD4 SP.. 110408 R413244
ATUM 40XD4 SP.. 110408 R403244
ATUM 42XD4 SP.. 140512 R423244
ATUM 43XD4 SP.. 140512 R433244
ATUM 44XD4 SP.. 140512 R443244
ATUM 46XD4 SP.. 140512 R464054

Full specification table & catalogue PDF
