Tool Holders / Countersink Milling Tool For Cylindrical Allen Head Screws (DIN 974-1)
ACBM-CC09-D26X8.5-W25-L130-Z02-H
ACBM series · see all 11 sizes
Insert compatibility
This size is built for the insert designation CC.T 09T3 (as listed in the catalogue data).

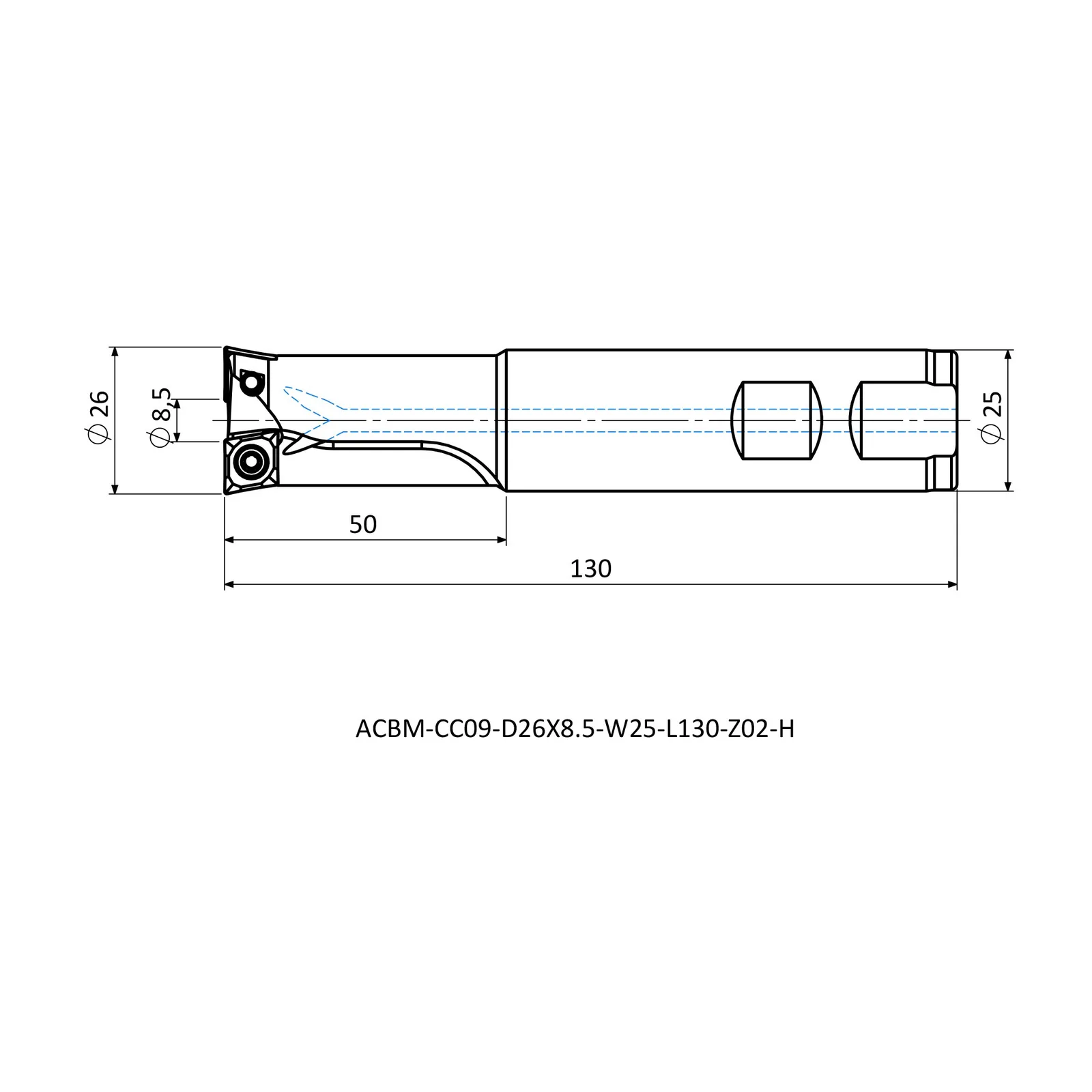

Specifications — ACBM-CC09-D26X8.5-W25-L130-Z02-H
| Insert Code | Insert designation | CC.T 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 8.5 |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 130 |
| DCX | Maximum diameter (mm) | 26 |
| LH | Head length (mm) | 50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
