Tool Holders / Countersink Milling Tool For Cylindrical Allen Head Screws (DIN 974-1)
ACBM-CC09-D30X12.5-W32-L130-Z02-H
ACBM series · see all 11 sizes
Insert compatibility
This size is built for the insert designation CC.T 09T3 (as listed in the catalogue data).

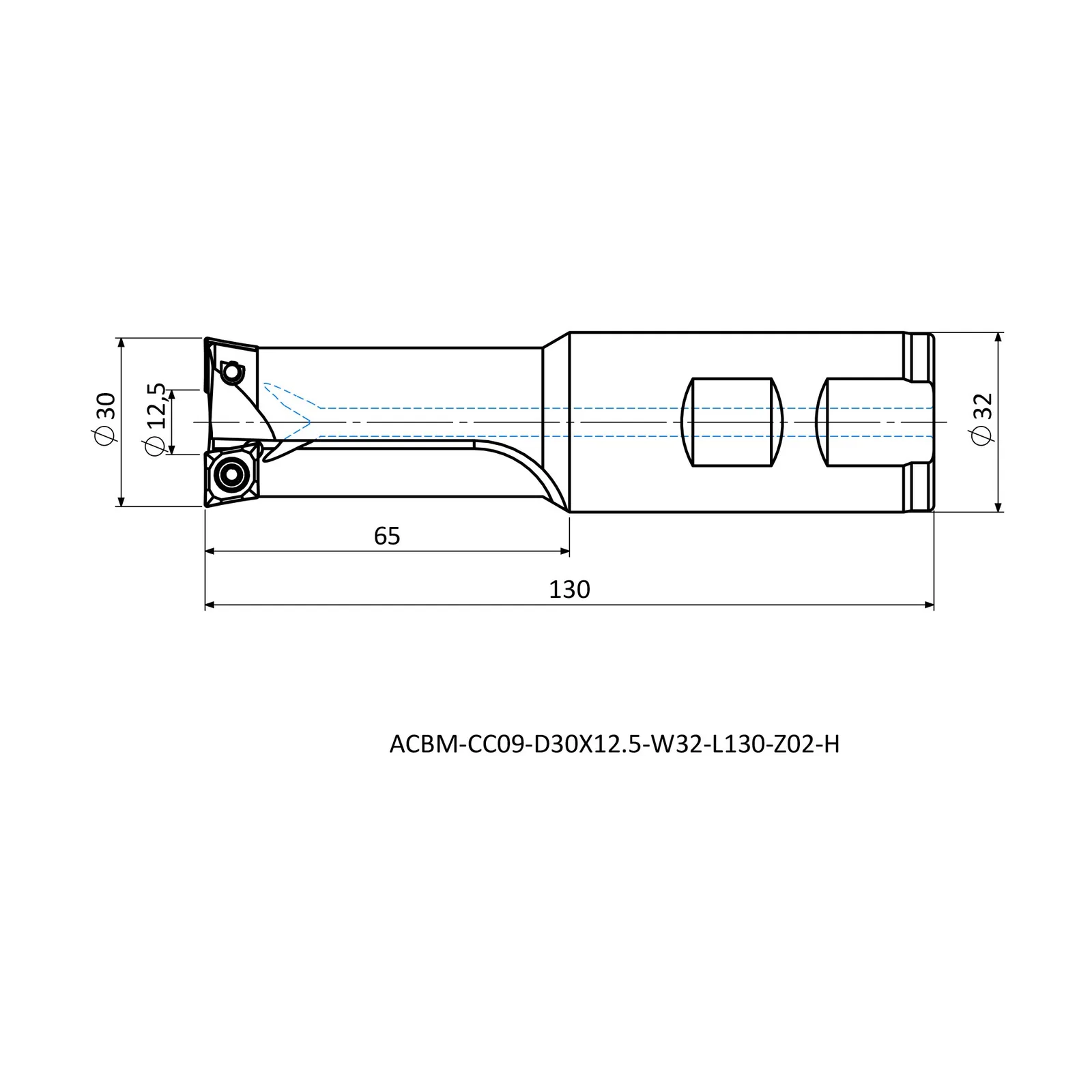

Specifications — ACBM-CC09-D30X12.5-W32-L130-Z02-H
| Insert Code | Insert designation | CC.T 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 12.5 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 130 |
| DCX | Maximum diameter (mm) | 30 |
| LH | Head length (mm) | 65 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 11 sizes in ACBM
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| ACBM-CC06-D17X6-W16-L150-Z02 | R | 6 | 16 | 150 |
| ACBM-CC06-D18X7-W16-L100-Z02-H | R | 7 | 16 | 100 |
| ACBM-CC06-D18X7-W16-L160-Z02-H | R | 7 | 16 | 160 |
| ACBM-CC06-D20X9-W20-L100-Z02-H | R | 9 | 20 | 100 |
| ACBM-CC06-D20X9-W20-L160-Z02-H | R | 9 | 20 | 160 |
| ACBM-CC09-D26X8.5-W25-L130-Z02-H | R | 8.5 | 25 | 130 |
| ACBM-CC09-D26X8.5-W25-L200-Z02-H | R | 8.5 | 25 | 200 |
| ACBM-CC09-D30X12.5-W32-L130-Z02-H | R | 12.5 | 32 | 130 |
| ACBM-CC09-D33X15.5-W32-L130-Z02-H | R | 12.5 | 32 | 130 |
| ACBM-CC09-D33X15.5-W32-L200-Z02-H | R | 15.5 | 32 | 200 |
| ACBM-SP06-D15X4-W16-L160-Z02-H | R | 4 | 16 | 160 |
