Tool Holders / Disc Milling
ASDM-CC06-D200x8-d40-Z18
ASDM-CC series · see all 37 sizes
Insert compatibility
This size is built for the insert designation CC.T 0602 (as listed in the catalogue data).

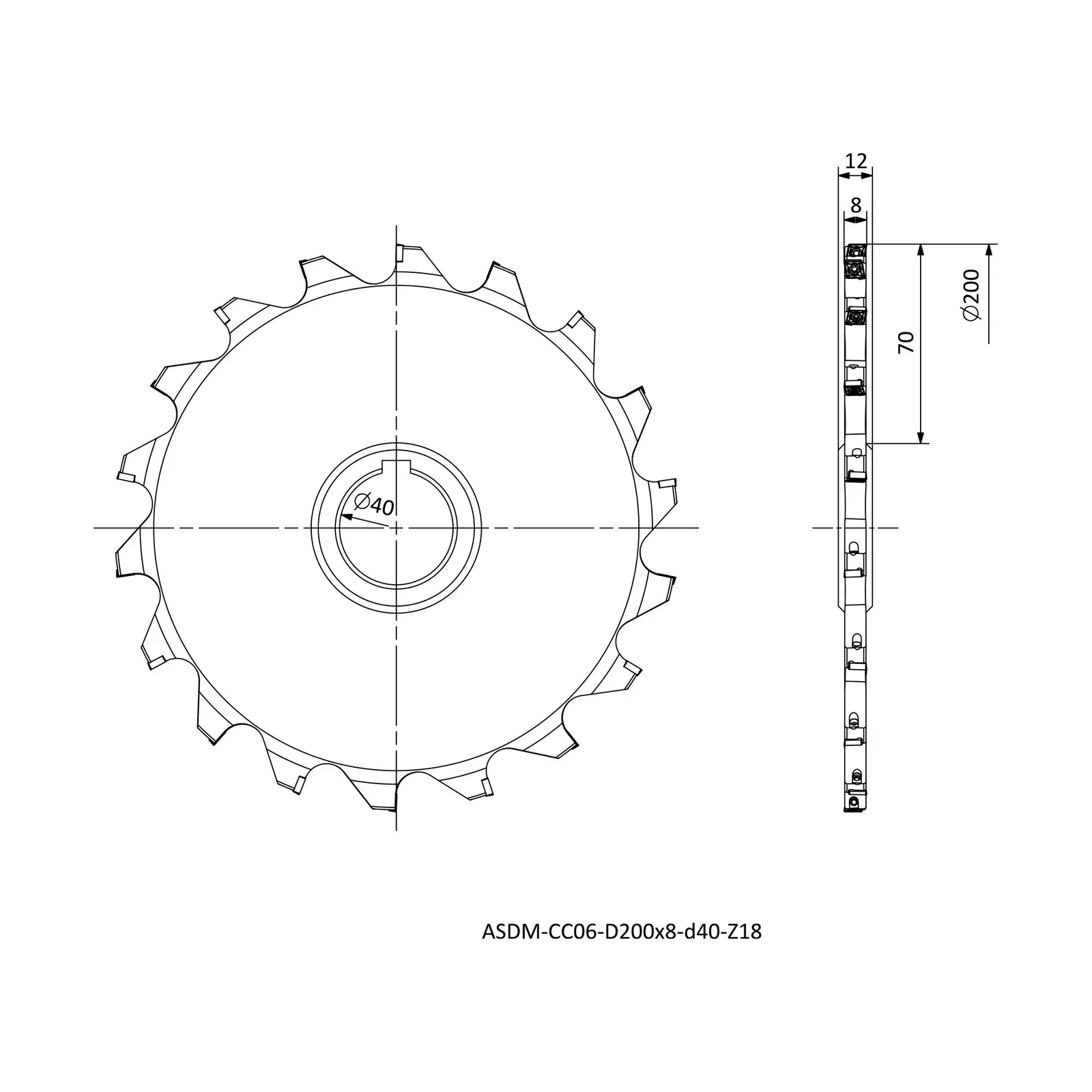

Specifications — ASDM-CC06-D200x8-d40-Z18
| Insert Code | Insert designation | CC.T 0602.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 200 |
| DCON | Connection diameter (mm) | 40 |
| ZEFP ETKILI | Effective cutting edges | 9 |
| CW | Cutting width (mm) | 8 |
| ZEFP Toplam | Total cutting edges | 18 |
| CDX | Cutting depth, maximum (mm) | 70 |
| THUB | Thread — 'UB' dim (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
