Tool Holders / Disc Milling

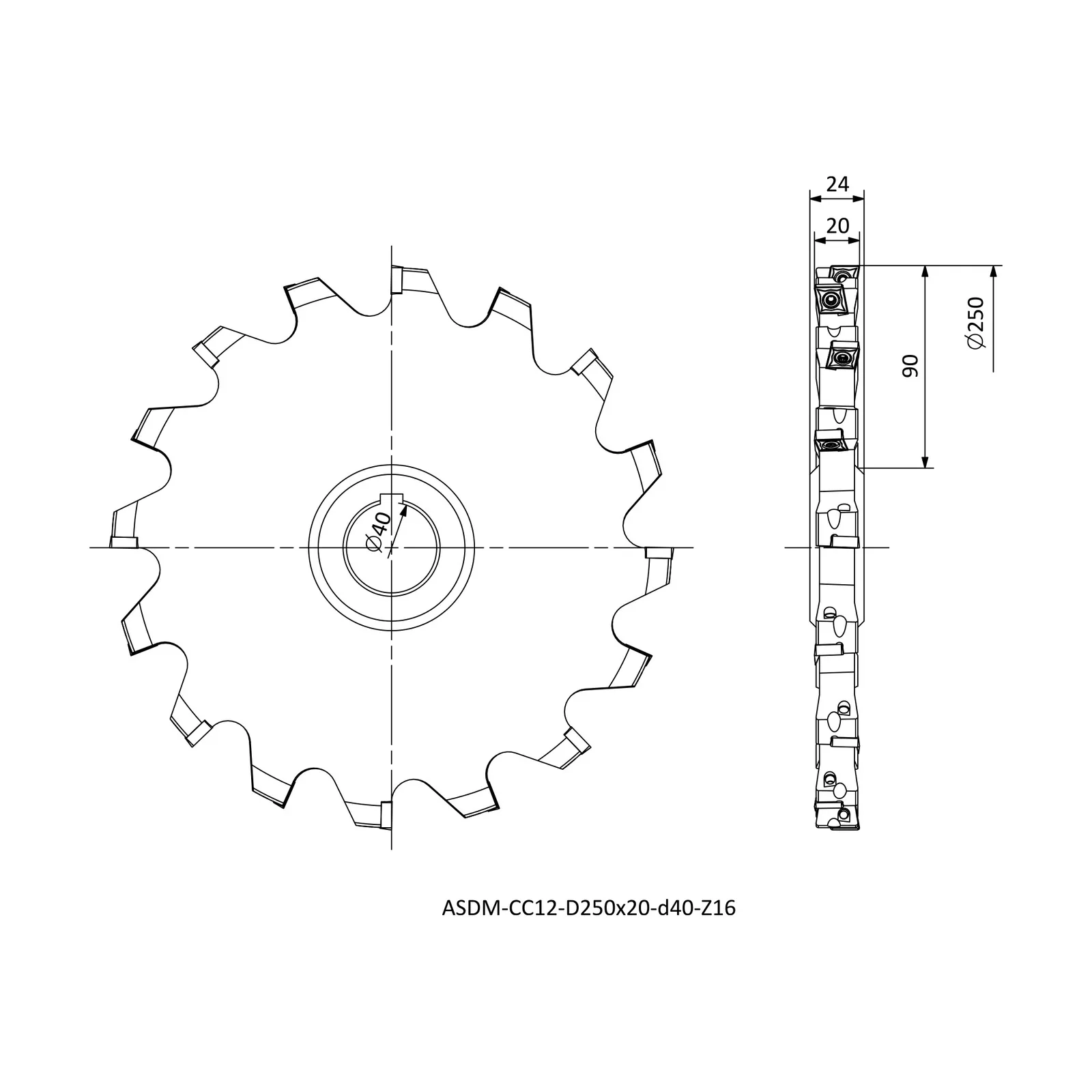

ASDM-CC12-D250x20-d40-Z16

Name: ASDM-CC12-D250x20-d40-Z16
Brand: Axior
SKU: ASDM-CC12-D250x20-d40-Z16

ASDM-CC series · see all 37 sizes

This size is built for the insert designation CC.T 1204 (as listed in the catalogue data).

Specifications — ASDM-CC12-D250x20-d40-Z16

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Effective cutting edges
ASDM-CC06-D80x8-d27-Z10	R	80	27	5
ASDM-CC06-D100x8-d32-Z12	R	100	32	6
ASDM-CC06-D125x8-d40-Z14	R	125	40	7
ASDM-CC06-D160x8-d40-Z16	R	160	40	8
ASDM-CC06-D200x8-d40-Z18	R	200	40	9
ASDM-CC06-D80x10-d27-Z10	R	80	27	5
ASDM-CC06-D100x10-d32-Z12	R	100	32	6
ASDM-CC06-D125x10-d40-Z14	R	125	40	7
ASDM-CC06-D160x10-d40-Z16	R	160	40	8
ASDM-CC06-D200x10-d40-Z18	R	200	40	9
ASDM-CC09-D80x12-d27-Z08	R	80	27	4
ASDM-CC09-D100x12-d32-Z10	R	100	32	5
ASDM-CC09-D125x12-d40-Z12	R	125	40	6
ASDM-CC09-D160x12-d40-Z14	R	160	40	7
ASDM-CC09-D200x12-d40-Z16	R	200	40	8
ASDM-CC09-D80x14-d27-Z08	R	80	27	4
ASDM-CC09-D100x14-d32-Z10	R	100	32	5
ASDM-CC09-D125x14-d40-Z12	R	125	40	6
ASDM-CC09-D160x14-d40-Z14	R	160	40	7
ASDM-CC09-D200x14-d40-Z16	R	200	40	8
ASDM-CC12-D80x16-d27-Z06	R	80	27	3
ASDM-CC12-D100x16-d32-Z08	R	100	32	4
ASDM-CC12-D125x16-d40-Z10	R	125	40	5
ASDM-CC12-D160x16-d40-Z12	R	160	40	6
ASDM-CC12-D200x16-d40-Z14	R	200	40	7
ASDM-CC12-D80x18-d27-Z06	R	80	27	3
ASDM-CC12-D100x18-d32-Z08	R	100	32	4
ASDM-CC12-D125x18-d40-Z10	R	125	40	5
ASDM-CC12-D160x18-d40-Z12	R	160	40	6
ASDM-CC12-D200x18-d40-Z14	R	200	40	7
ASDM-CC12-D250x18-d40-Z16	R	250	40	8
ASDM-CC12-D80x20-d27-Z06	R	80	27	3
ASDM-CC12-D100x20-d32-Z08	R	100	32	4
ASDM-CC12-D125x20-d40-Z10	R	125	40	5
ASDM-CC12-D160x20-d40-Z12	R	160	40	6
ASDM-CC12-D200x20-d40-Z14	R	200	40	7
ASDM-CC12-D250x20-d40-Z16	R	250	40	8
