Tool Holders / Disc Milling
ASDM-CC09-D100x14-d32-Z10
ASDM-CC series · see all 37 sizes
Insert compatibility
This size is built for the insert designation CC.T 09T3 (as listed in the catalogue data).

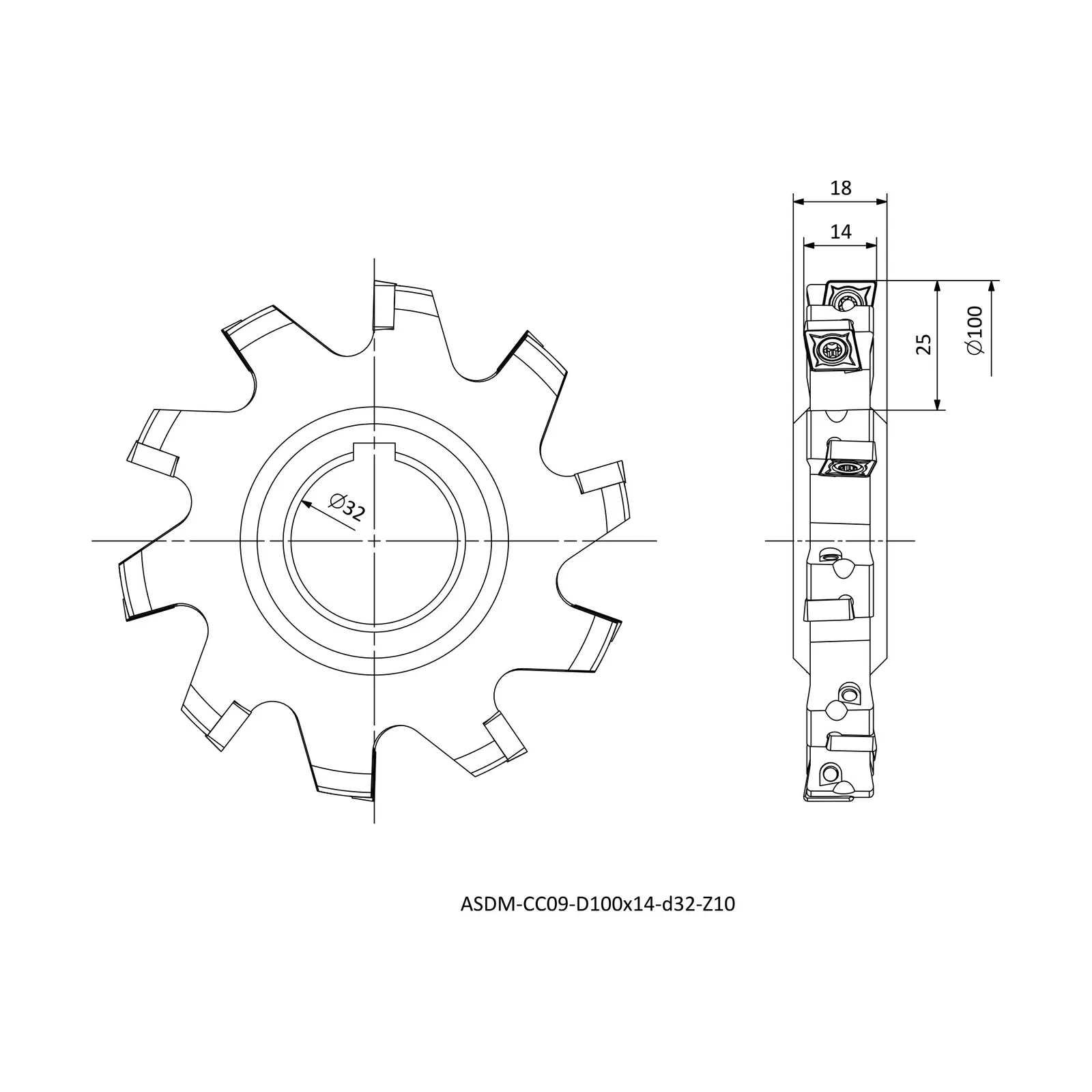

Specifications — ASDM-CC09-D100x14-d32-Z10
| Insert Code | Insert designation | CC.T 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 100 |
| DCON | Connection diameter (mm) | 32 |
| ZEFP ETKILI | Effective cutting edges | 5 |
| CW | Cutting width (mm) | 14 |
| ZEFP Toplam | Total cutting edges | 10 |
| CDX | Cutting depth, maximum (mm) | 25 |
| THUB | Thread — 'UB' dim (mm) | 18 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
