Tool Holders / Face Milling (ARBOR Type)
AFM90-LN1106-D125-B40-Z10
AFM90(L)-LN series · see all 23 sizes
Insert compatibility
This size is built for the insert designation LNMT 1106 (as listed in the catalogue data).

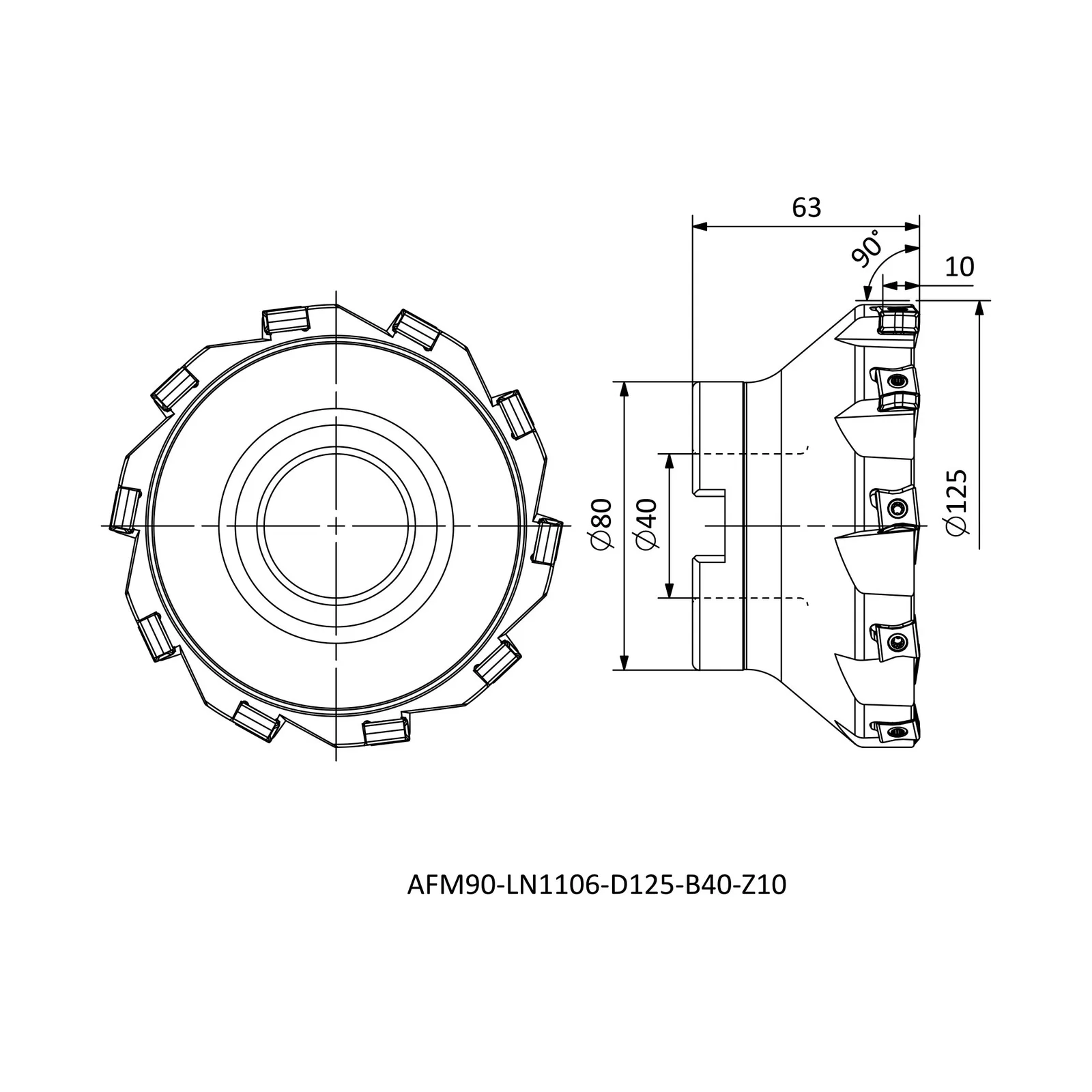

Specifications — AFM90-LN1106-D125-B40-Z10
| Insert Code | Insert designation | LNMT 1106.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 125 |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 63 |
| ZEFP | Effective cutting edges | 10 |
| APMX | Depth of cut, maximum (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 23 sizes in AFM90(L)-LN
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AFM90-LN1106-D040-A16-Z06 | R | 40 | 16 | 40 |
| AFM90-LN1607-D063-A22-Z06-H | R | 63 | 22 | 40 |
| AFM90-LN1106-D050-A22-Z05 | R | 50 | 22 | 40 |
| AFM90-LN1106-D063-A22-Z06 | R | 63 | 22 | 40 |
| AFM90-LN1106-D080-A27-Z08 | R | 80 | 27 | 50 |
| AFM90L-LN1106-D080-A27-Z08 | R | 80 | 27 | 50 |
| AFM90L-LN1106-D100-A32-Z09 | R | 100 | 32 | 50 |
| AFM90-LN1106-D100-A32-Z09 | R | 100 | 32 | 50 |
| AFM90-LN1106-D125-B40-Z10 | R | 125 | 40 | 63 |
| AFM90-LN1306-D040-A16-Z04-H | R | 40 | 16 | 40 |
| AFM90-LN1306-D050-A22-Z05-H | R | 50 | 22 | 40 |
| AFM90-LN1306-D063-A22-Z06-H | R | 63 | 22 | 40 |
| AFM90-LN1607-D080-A27-Z05-H | R | 80 | 27 | 50 |
| AFM90-LN1306-D100-A32-Z08-H | R | 100 | 32 | 50 |
| AFM90L-LN1506-D040-A16-Z04 | R | 40 | 16 | 40 |
| AFM90-LN1506-D040-A16-Z04 | R | 40 | 16 | 40 |
| AFM90-LN1506-D050-A22-Z05 | R | 50 | 22 | 40 |
| AFM90-LN1607-D050-A22-Z03-H | R | 50 | 22 | 40 |
| AFM90-LN1607-D063-A22-Z04-H | R | 63 | 22 | 40 |
| AFM90-LN1506-D063-A22-Z06 | R | 63 | 22 | 40 |
| AFM90-LN1306-D080-A27-Z07-H | R | 80 | 27 | 50 |
| AFM90-LN1506-D080-A27-Z07 | R | 80 | 27 | 50 |
| AFM90-LN1607-D100-A32-Z06-H | R | 100 | 32 | 50 |
