Tool Holders / Face Milling (ARBOR Type)
AFM90L-LN1506-D040-A16-Z04
AFM90(L)-LN series · see all 23 sizes
Insert compatibility
This size is built for the insert designation LNMT 1106 (as listed in the catalogue data).

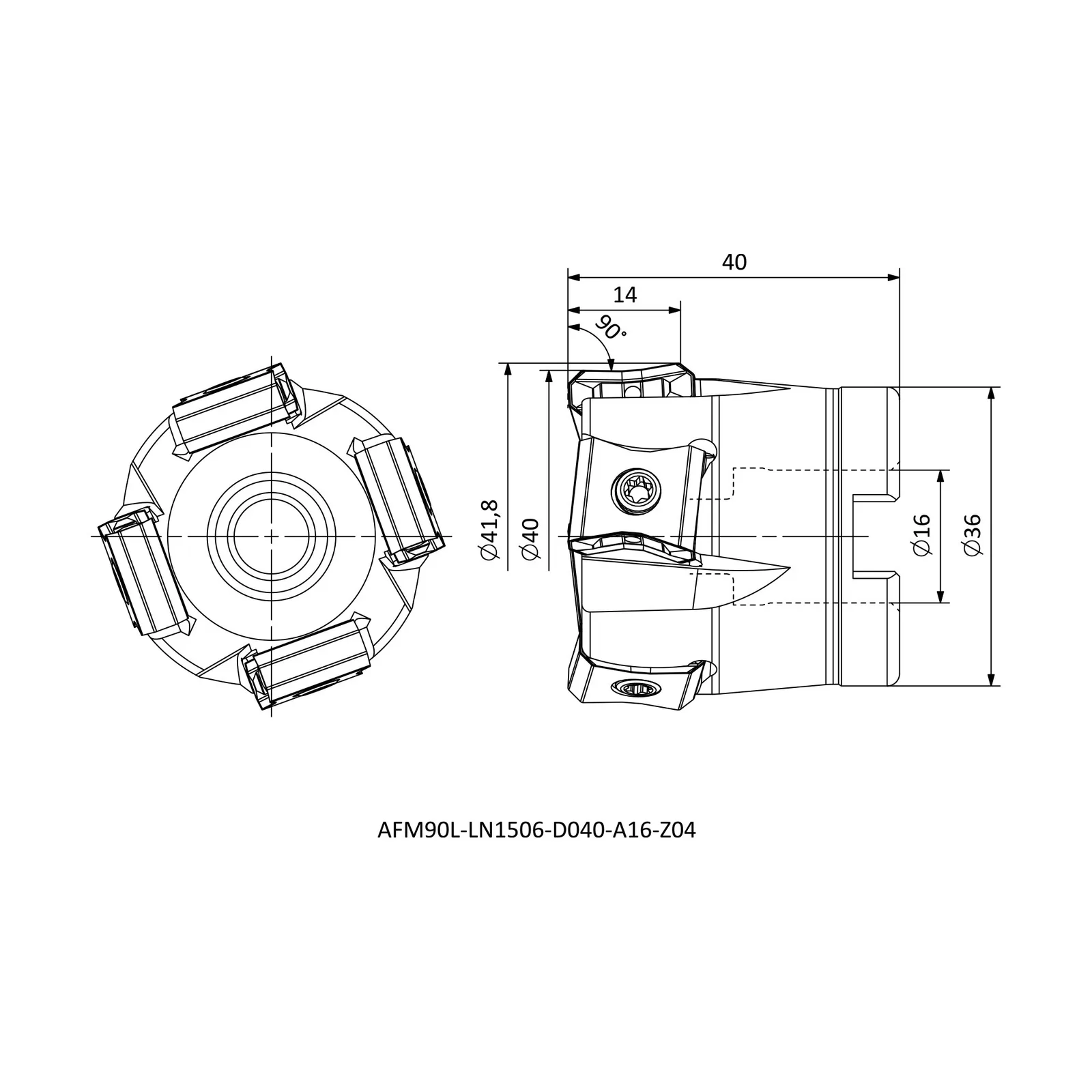

Specifications — AFM90L-LN1506-D040-A16-Z04
| Insert Code | Insert designation | LNMT 1106.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 40 |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 40 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 14 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 23 sizes in AFM90(L)-LN
