Tool Holders / Face Milling (ARBOR Type)
AFM90-LN1506-D080-A27-Z07
AFM90(L)-LN series · see all 23 sizes
Insert compatibility
This size is built for the insert designation LNMT 1506 (as listed in the catalogue data).

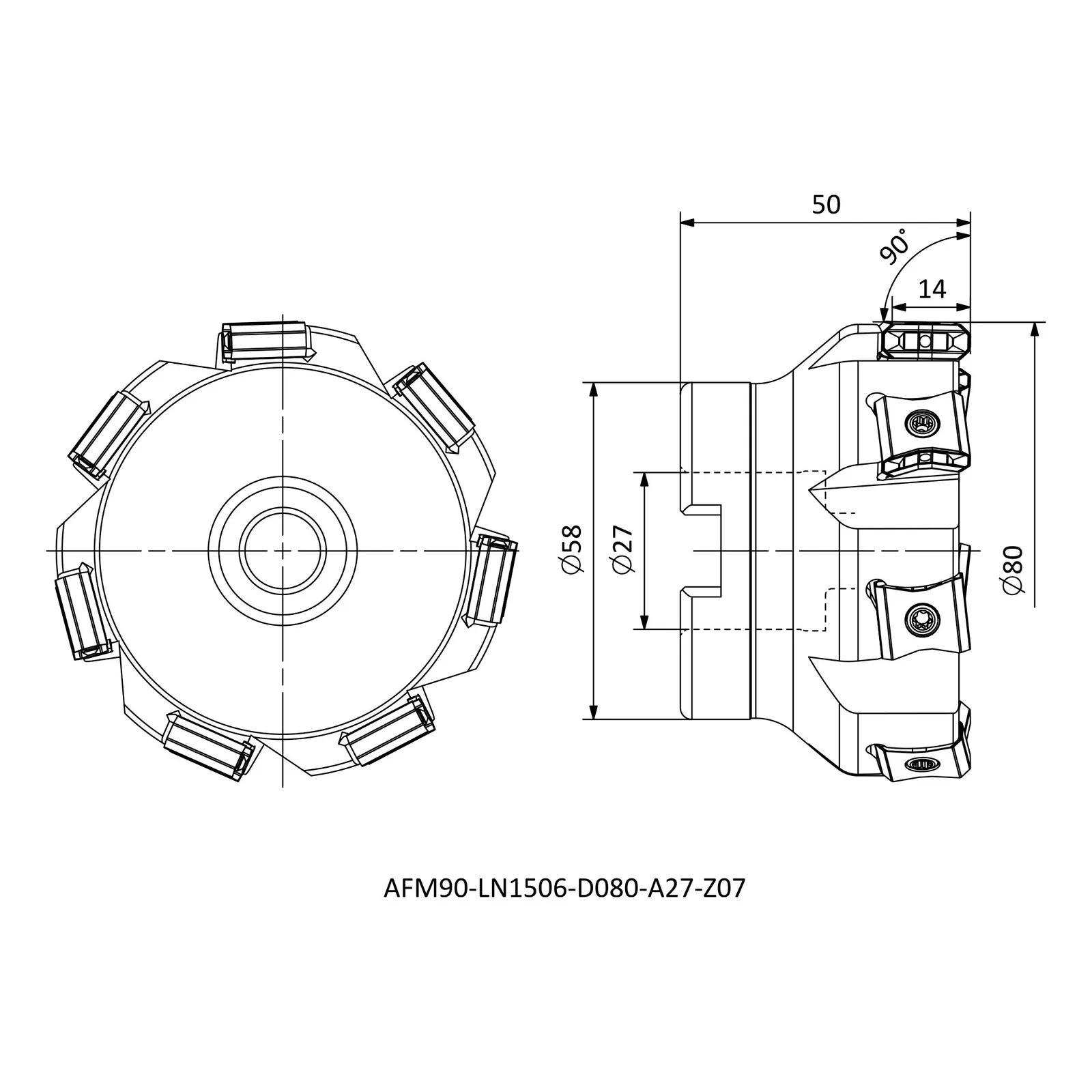

Specifications — AFM90-LN1506-D080-A27-Z07
| Insert Code | Insert designation | LNMT 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 80 |
| DCON | Connection diameter (mm) | 27 |
| LF | Functional length (mm) | 50 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 14 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
