Tool Holders / High Feed Milling Tools (ARBOR Type)
AHFMC-WD0805D-D066-A27-Z05-H
AHFMC-WD series · see all 12 sizes
Insert compatibility
This size is built for the insert designation WD.W 0805 (as listed in the catalogue data).

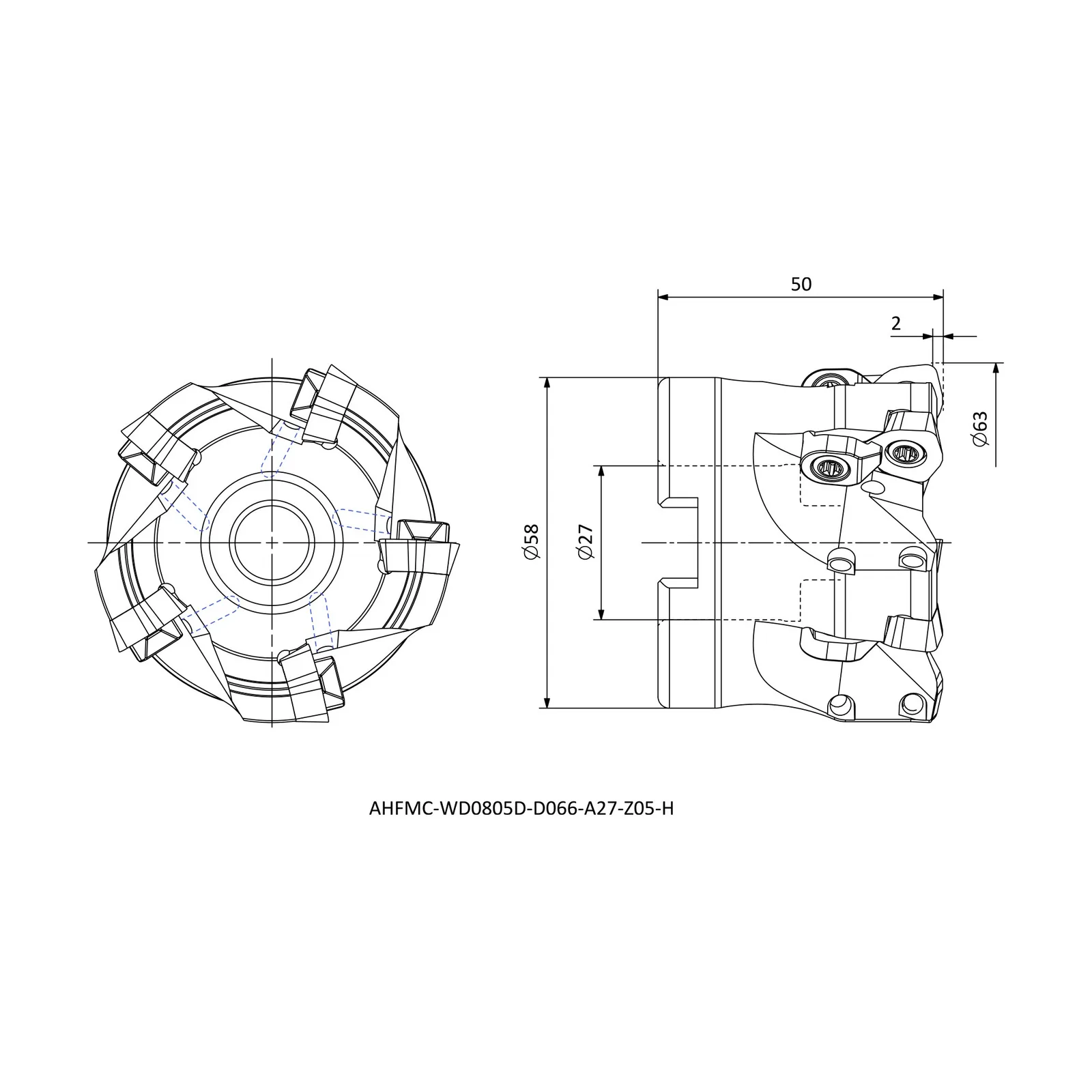

Specifications — AHFMC-WD0805D-D066-A27-Z05-H
| Insert Code | Insert designation | WD.W 0805.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 27 |
| LF | Functional length (mm) | 50 |
| DCX | Maximum diameter (mm) | 66 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 2 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
