Tool Holders / High Feed Milling Tools (ARBOR Type)
AHFMC-WD10X6D-D125-B40-Z06
AHFMC-WD series · see all 12 sizes
Insert compatibility
This size is built for the insert designation WD.W 10X6 (as listed in the catalogue data).

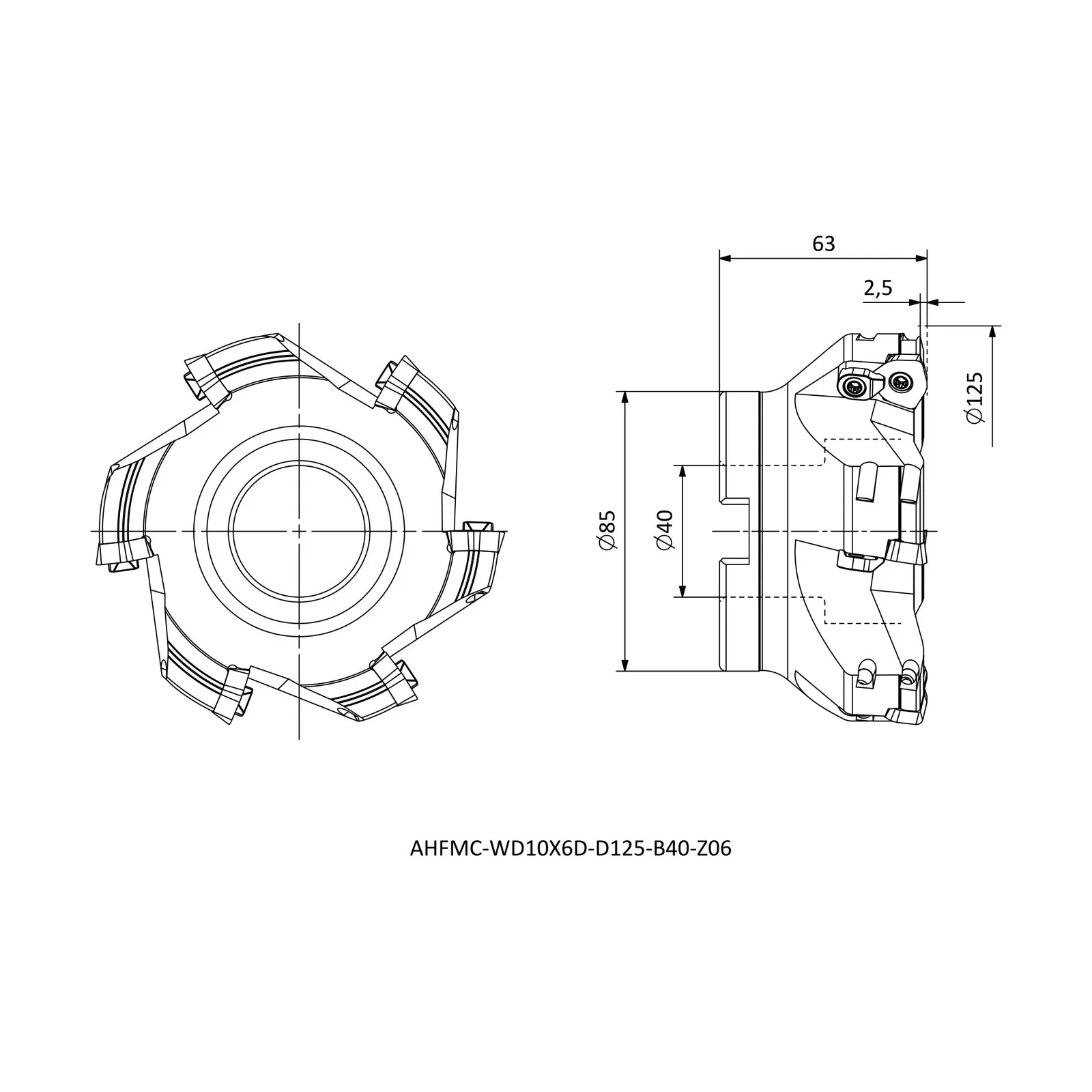

Specifications — AHFMC-WD10X6D-D125-B40-Z06
| Insert Code | Insert designation | WD.W 10X6.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 63 |
| DCX | Maximum diameter (mm) | 125 |
| ZEFP | Effective cutting edges | 6 |
| APMX | Depth of cut, maximum (mm) | 2.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
