Tool Holders / High Feed Milling Tools (ARBOR Type)
AHFMC-WD10X6D-D160-C40-Z07
AHFMC-WD series · see all 12 sizes
Insert compatibility
This size is built for the insert designation WD.W 10X6 (as listed in the catalogue data).

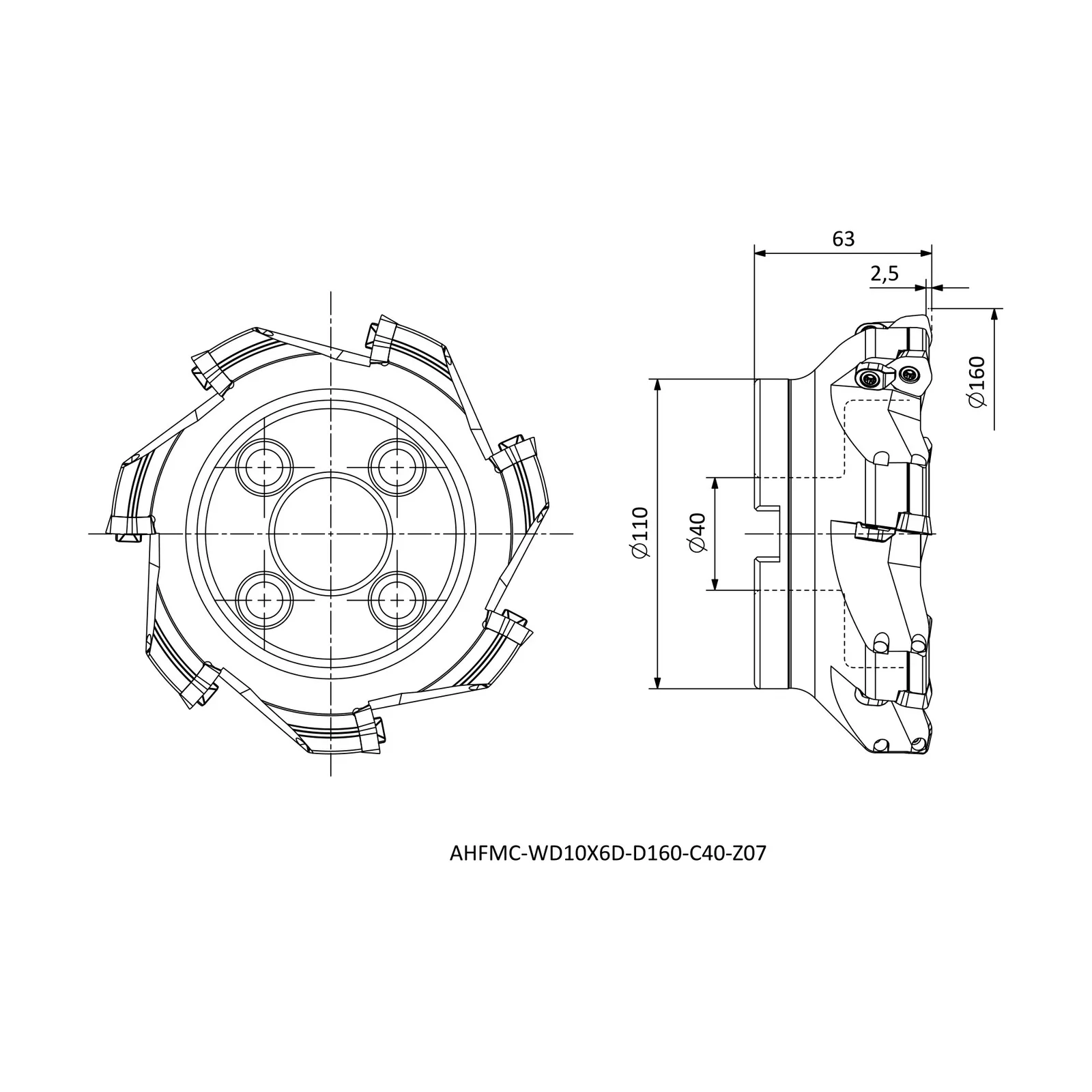

Specifications — AHFMC-WD10X6D-D160-C40-Z07
| Insert Code | Insert designation | WD.W 10X6.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 63 |
| DCX | Maximum diameter (mm) | 160 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 2.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in AHFMC-WD
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFMC-WD06T3D-D042-A16-Z04-H | R | 16 | 45 | 42 |
| AHFMC-WD06T3D-D050-A22-Z05-H | R | 22 | 50 | 50 |
| AHFMC-WD06T3D-D052-A22-Z05-H | R | 22 | 50 | 52 |
| AHFMC-WD0805D-D052-A22-Z04-H | R | 22 | 50 | 52 |
| AHFMC-WD06T3D-D063-A22-Z06-H | R | 22 | 50 | 63 |
| AHFMC-WD0805D-D063-A22-Z05-H | R | 22 | 50 | 63 |
| AHFMC-WD0805D-D063-A27-Z05-H | R | 27 | 50 | 63 |
| AHFMC-WD0805D-D080-A27-Z05 | R | 27 | 50 | 80 |
| AHFMC-WD0805D-D100-A32-Z06 | R | 32 | 50 | 100 |
| AHFMC-WD10X6D-D160-C40-Z07 | R | 40 | 63 | 160 |
| AHFMC-WD10X6D-D125-B40-Z06 | R | 40 | 63 | 125 |
| AHFMC-WD0805D-D066-A27-Z05-H | R | 27 | 50 | 66 |
