Tool Holders / M-System Boring Bars
S20R MTFNR 16
MTFNR/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation TNM. 1604 (as listed in the catalogue data).

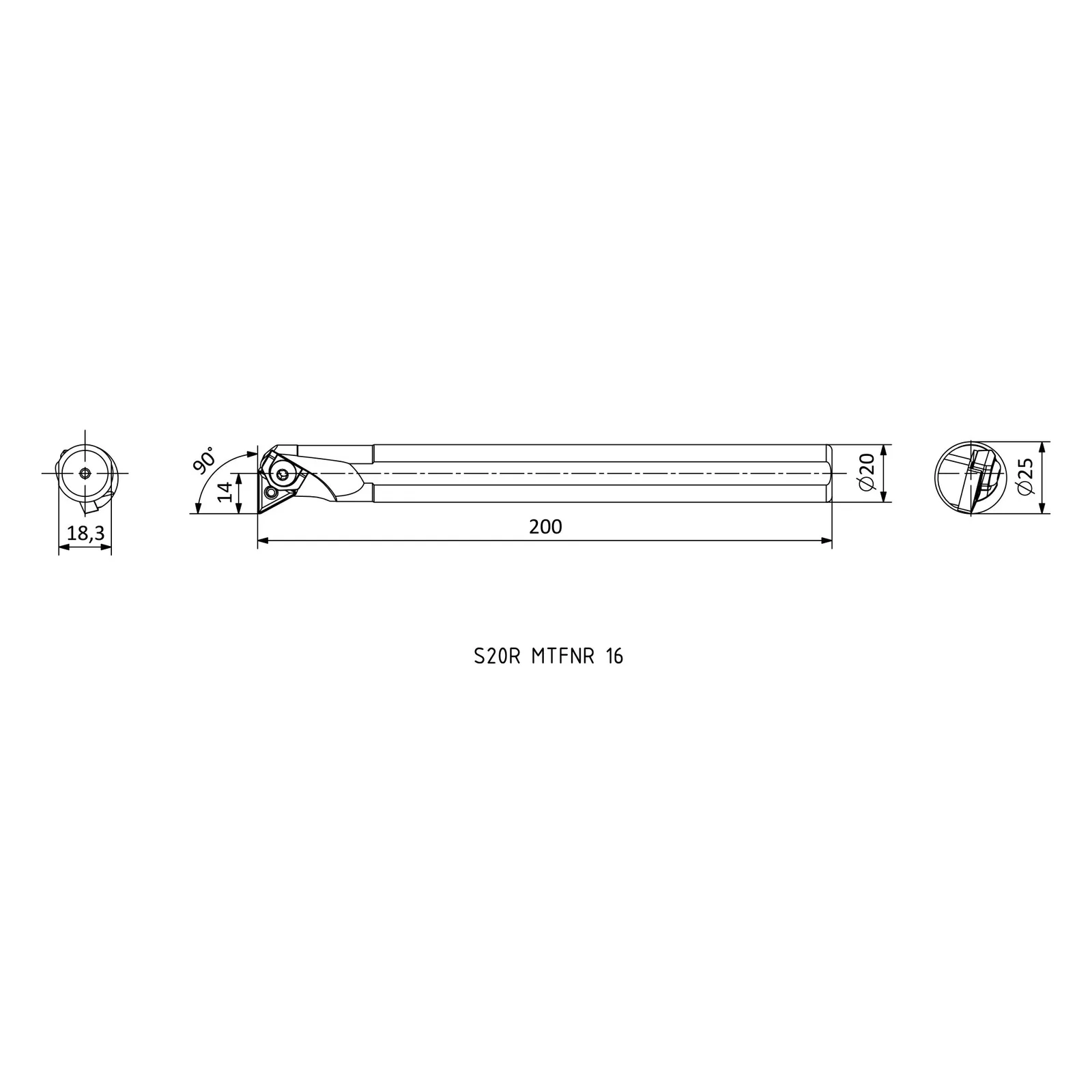

Specifications — S20R MTFNR 16
| Insert Code | Insert designation | TNM. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 200 |
| WF | Functional width (mm) | 14 |
| H | Shank height (mm) | 18.3 |
| D min | Minimum working diameter (mm) | ≥25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in MTFNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S20R MTFNL 16 | L | 20 | 200 | 14 |
| S20R MTFNR 16 | R | 20 | 200 | 14 |
| S25S MTFNL 16 | L | 25 | 250 | 17 |
| S25S MTFNR 16 | R | 25 | 250 | 17 |
| S32T MTFNL 22 | L | 32 | 300 | 22 |
| S32T MTFNR 16 | R | 32 | 300 | 22 |
| S40U MTFNL 16 | L | 40 | 350 | 27 |
| S40U MTFNR 16 | R | 40 | 350 | 27 |
| S32T MTFNL 16 | L | 32 | 300 | 22 |
| S32T MTFNR 22 | R | 32 | 300 | 22 |
| S40U MTFNL 22 | L | 40 | 350 | 27 |
| S40U MTFNR 22 | R | 40 | 350 | 27 |
| S50V MTFNL 22 | L | 50 | 400 | 35 |
| S50V MTFNR 22 | R | 50 | 400 | 35 |
