Tool Holders / M-System Boring Bars
S40U MTFNR 16
MTFNR/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation TNM. 1604 (as listed in the catalogue data).

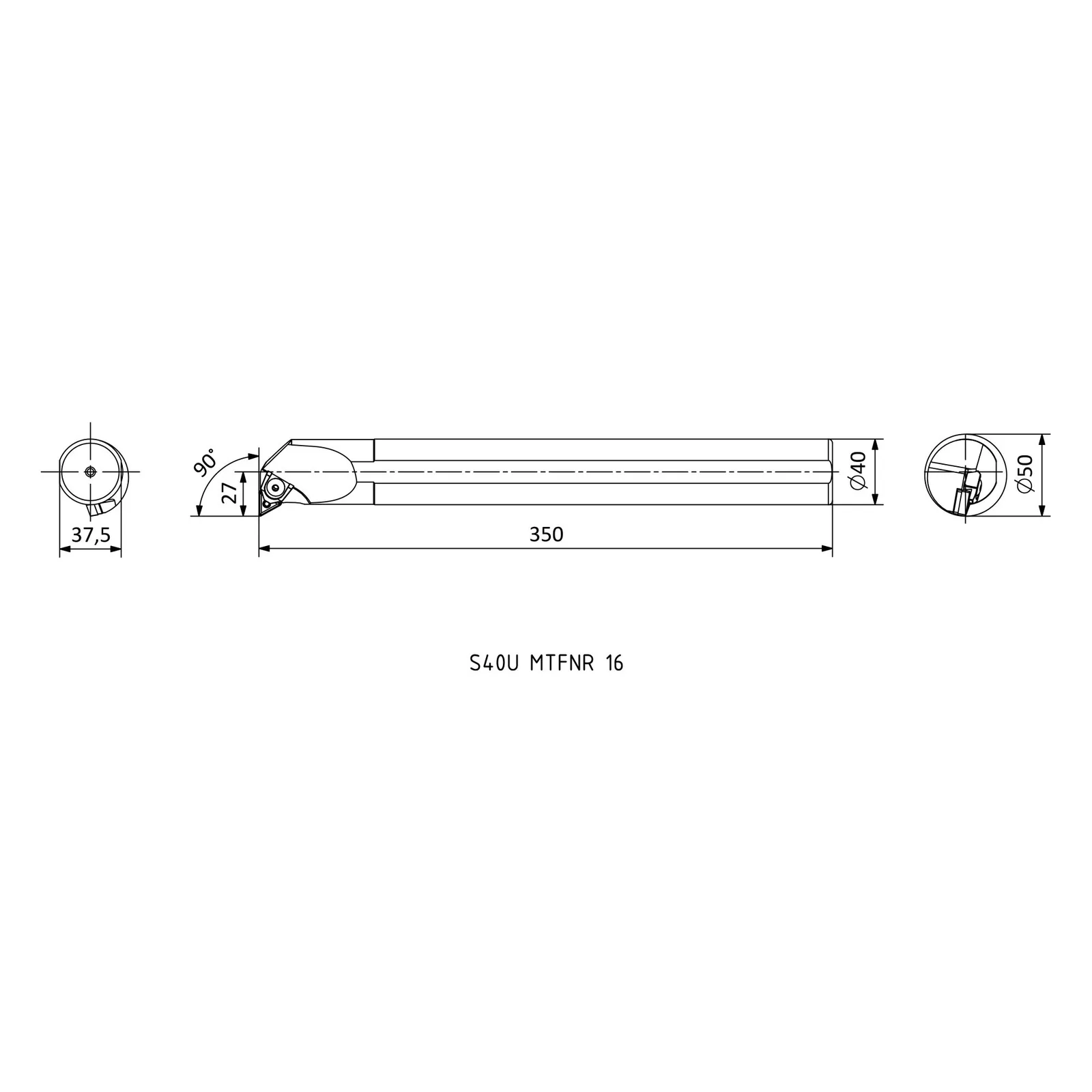

Specifications — S40U MTFNR 16
| Insert Code | Insert designation | TNM. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 350 |
| WF | Functional width (mm) | 27 |
| H | Shank height (mm) | 37.5 |
| D min | Minimum working diameter (mm) | ≥50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
