Tool Holders / M-System Boring Bars
S50V MTFNR 22
MTFNR/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation TNM. 2204 (as listed in the catalogue data).

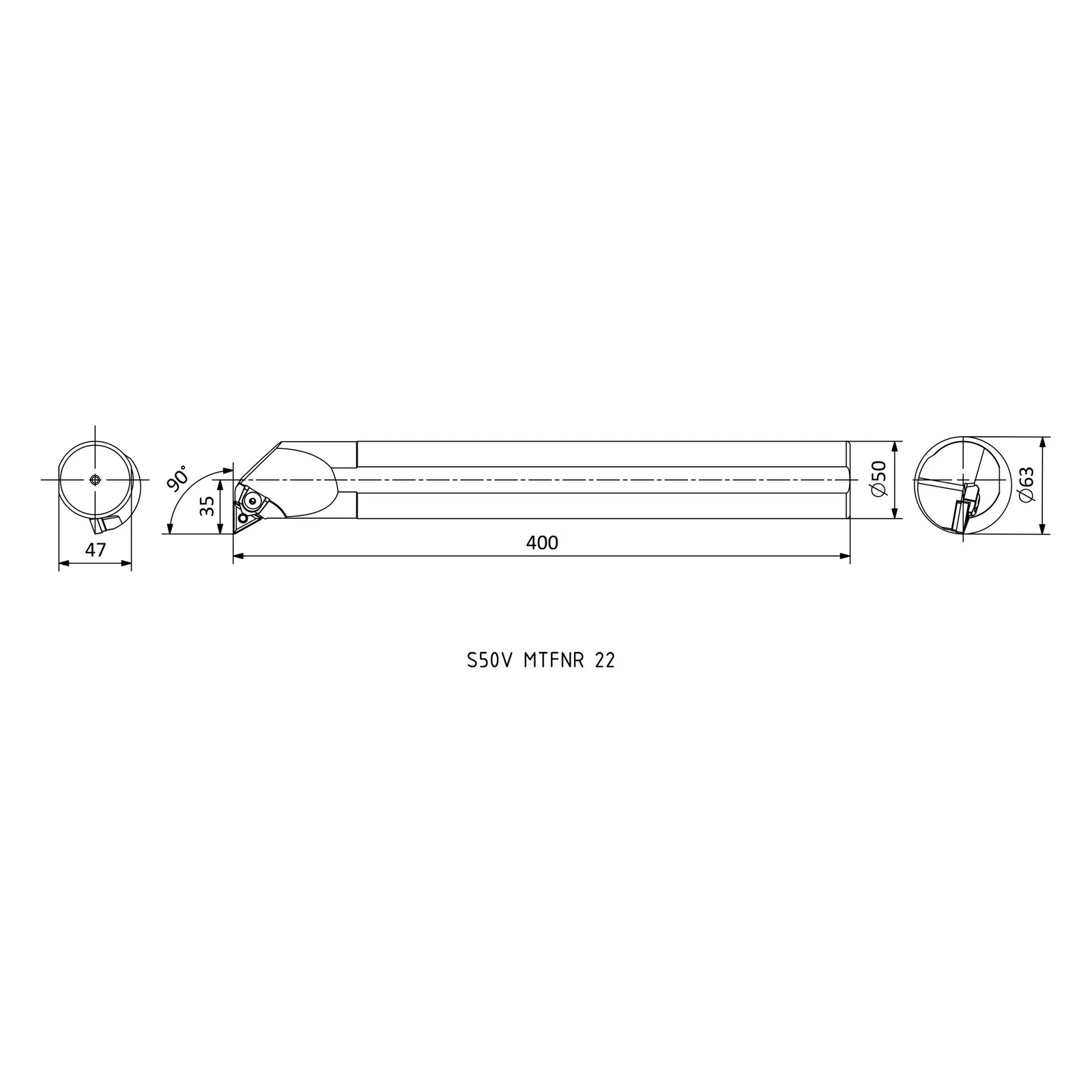

Specifications — S50V MTFNR 22
| Insert Code | Insert designation | TNM. 2204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 50 |
| LF | Functional length (mm) | 400 |
| WF | Functional width (mm) | 35 |
| H | Shank height (mm) | 47 |
| D min | Minimum working diameter (mm) | ≥63 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
