Tool Holders / P-System External Turning Toolholders
PTGNL 1212 F11
PTGNR/L series · see all 20 sizes
Insert compatibility
This size is built for the insert designation TNM. 1103 (as listed in the catalogue data).

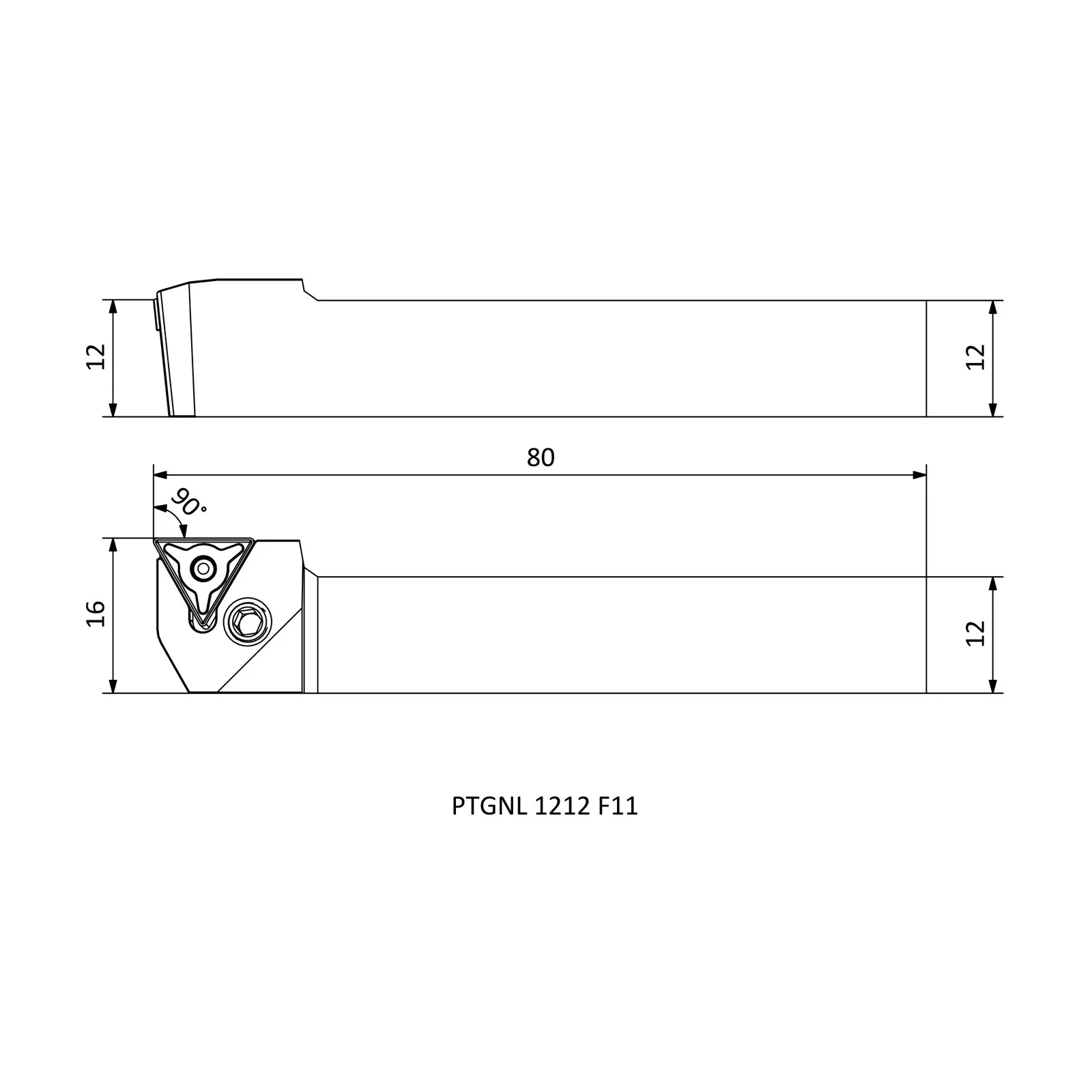

Specifications — PTGNL 1212 F11
| Insert Code | Insert designation | TNM. 1103.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 80 |
| WF | Functional width (mm) | 16 |
| HF=H | Functional height (mm) | 12 |
| B | Shank width (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 20 sizes in PTGNR/L
