Tool Holders / P-System External Turning Toolholders

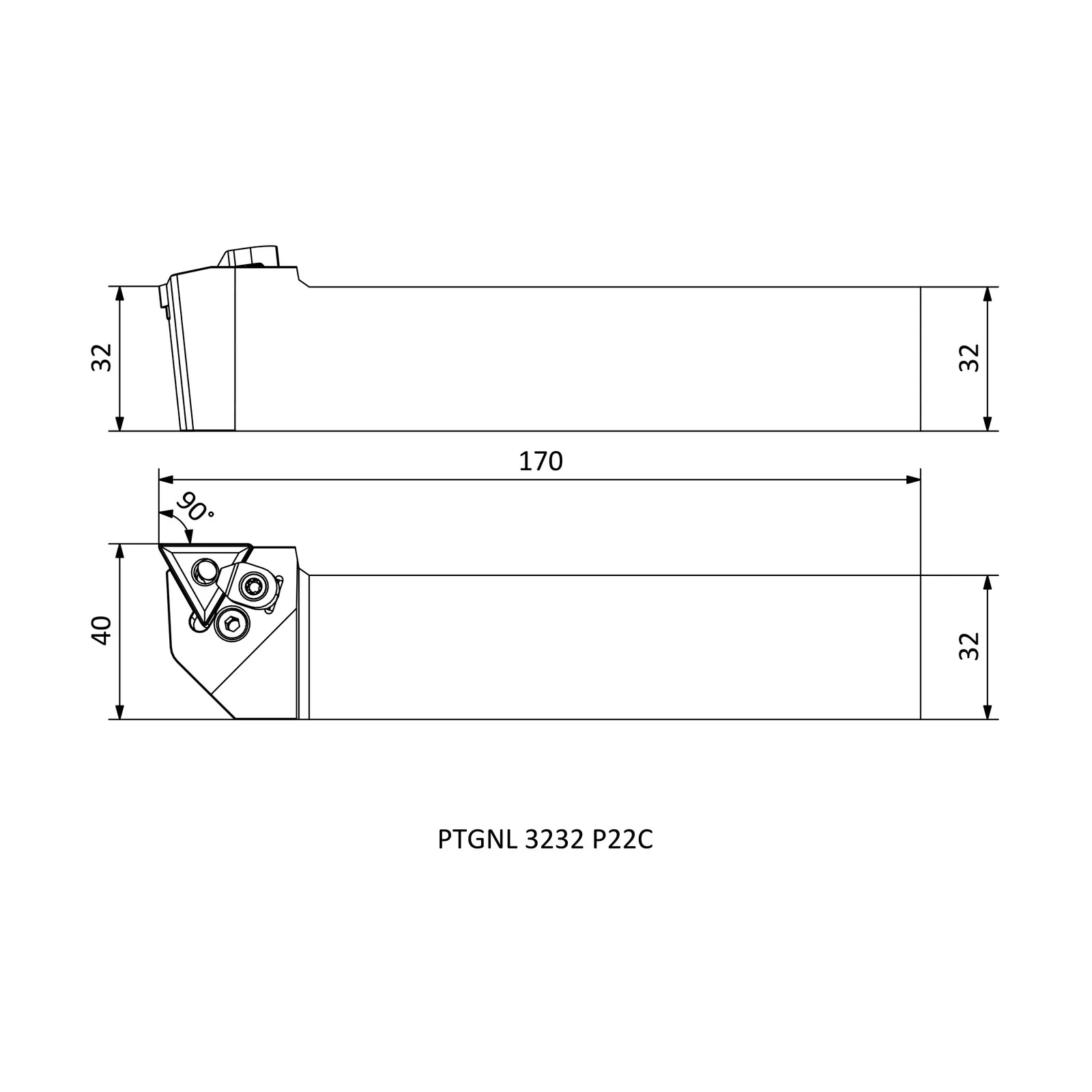

PTGNL 3232 P22C
PTGNR/L series · see all 20 sizes
Insert compatibility
This size is built for the insert designation TNM. 2204 (as listed in the catalogue data).
Specifications — PTGNL 3232 P22C
| Insert Code | Insert designation | TNM. 2204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 40 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 20 sizes in PTGNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PTGNL 1010 E11 | L | 70 | 12 | 10 |
| PTGNR 1010 E11 | R | 70 | 12 | 10 |
| PTGNL 1212 F11 | L | 80 | 16 | 12 |
| PTGNR 1212 F11 | R | 80 | 16 | 12 |
| PTGNL 1616 H11 | L | 100 | 20 | 16 |
| PTGNR 1616 H11 | R | 100 | 20 | 16 |
| PTGNL 1616 H16 | L | 100 | 20 | 16 |
| PTGNR 1616 H16 | R | 100 | 20 | 16 |
| PTGNL 2020 K16 | L | 125 | 25 | 20 |
| PTGNR 2020 K16 | R | 125 | 25 | 20 |
| PTGNL 2525 M16 | L | 150 | 32 | 25 |
| PTGNR 2525 M16 | R | 150 | 32 | 25 |
| PTGNL 3232 P16 | L | 170 | 40 | 32 |
| PTGNR 3232 P16 | R | 170 | 40 | 32 |
| PTGNL 2525 M22C | L | 150 | 32 | 25 |
| PTGNR 2525 M22C | R | 150 | 32 | 25 |
| PTGNL 3232 P22C | L | 170 | 40 | 32 |
| PTGNR 3232 P22C | R | 170 | 40 | 32 |
| PTGNL 4040 S27C | L | 250 | 50 | 40 |
| PTGNR 4040 S27C | R | 250 | 50 | 40 |
