Tool Holders / Rough Boring Bars

ABHR-D50x68-W32-L200-CC12

Name: ABHR-D50x68-W32-L200-CC12
Brand: Axior
SKU: ABHR-D50x68-W32-L200-CC12

ABHR series · see all 31 sizes

This size is built for the insert designation CC.T 1204 (as listed in the catalogue data).

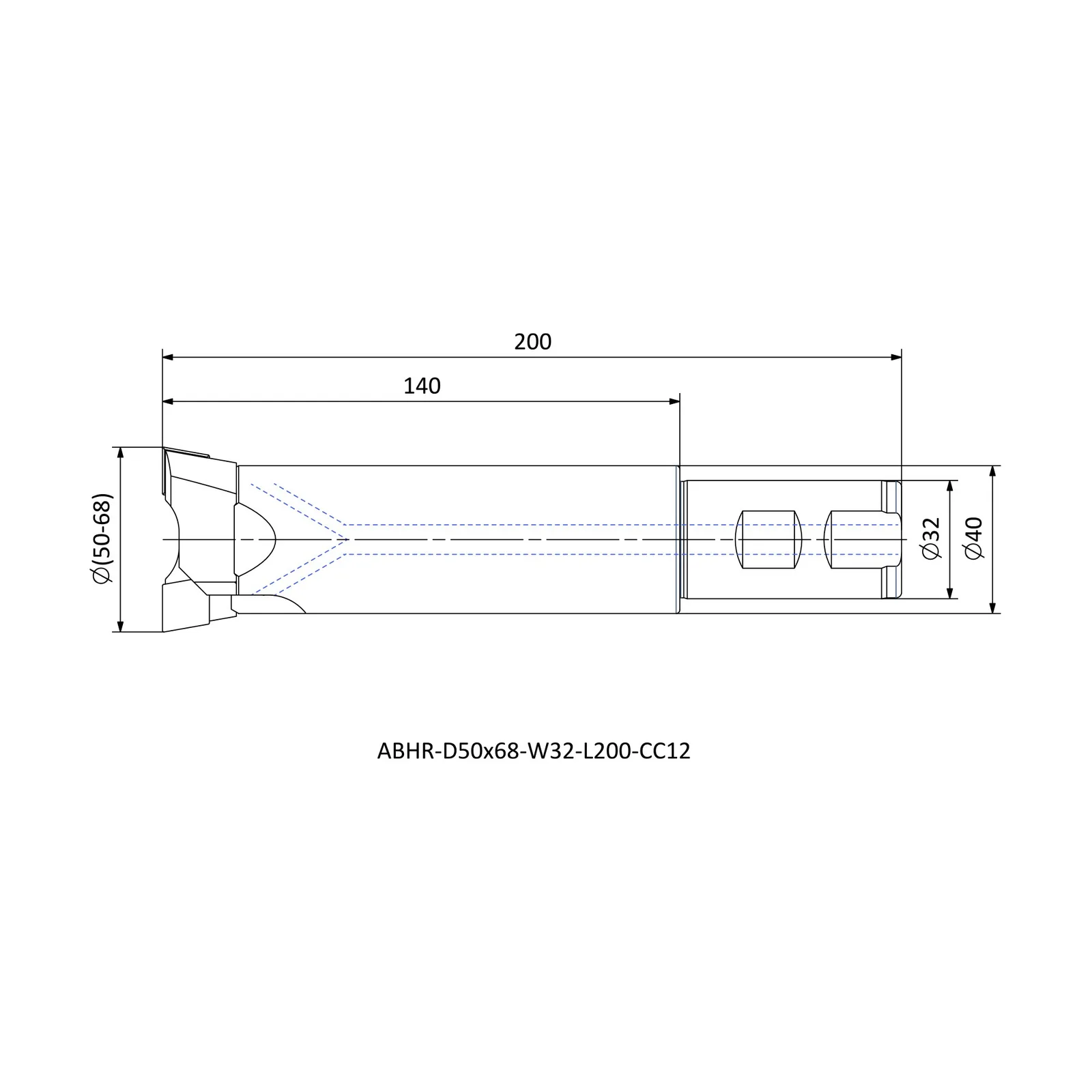

Specifications — ABHR-D50x68-W32-L200-CC12

Insert Code	Insert designation	CC.T 1204..
Product Direction	Cutting direction (hand)	R
DCON	Connection diameter (mm)	32
OAL	Overall length (mm)	200
LF	Functional length (mm)	140
DCN-DCX	Cutting diameter range, DCN-DCX (mm)	50-68
DCONMS	Connection diameter, machine side (mm)	40

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Connection diameter (mm)	Overall length (mm)	Bore diameter (mm)
ABHR-D36x50-W25-L120-CC09	R	25	120	–
ABHR-D36x50-W25-L170-CC09	R	25	170	–
ABHR-D36x50-W25-L250-CC09	R	25	250	–
ABHR-D50x68-W32-L140-CC12	R	32	140	–
ABHR-D50x68-W32-L200-CC12	R	32	200	–
ABHR-D50x68-W32-L280-CC12	R	32	280	–
ABHR-D160x200-W40-L300-B-CC12	R	40	300	95
ABHR-D36x50-W25-L170-CC06	R	25	170	–
ABHR-D50x68-W32-L200-CC09	R	32	200	–
ABHR-D68x90-W32-L210-CC12	R	32	210	54
ABHR-D90x120-W32-L140-CC12	R	32	140	72
ABHR-D18x22-W16-L150-CC06	R	16	150	–
ABHR-D22x28-W20-L150-CC06	R	20	150	–
ABHR-D18x22-W16-L200-CC06	R	16	200	–
ABHR-D28x38-W20-L160-CC06	R	20	160	–
ABHR-D50x68-W32-L140-CC09	R	32	140	–
ABHR-D160x200-W40-L210-B-CC12	R	40	210	95
ABHR-D18x22-W16-L90-CC06	R	16	90	–
ABHR-D36x50-W25-L120-CC06	R	25	120	–
ABHR-D36x50-W25-L250-CC06	R	25	250	–
ABHR-D22x28-W20-L200-CC06	R	20	200	–
ABHR-D68x90-W32-L160-CC12	R	32	160	54
ABHR-D68x90-W32-L280-CC12	R	32	280	54
ABHR-D90x120-W40-L300-CC12	R	40	300	72
ABHR-D120x160-W40-L210-CC12	R	40	210	95
ABHR-D120x160-W40-L300-CC12	R	40	300	95
ABHR-D28x38-W20-L110-CC06	R	20	110	–
ABHR-D90x120-W40-L200-CC12	R	40	200	72
ABHR-D22x28-W20-L100-CC06	R	20	100	–
ABHR-D28x38-W20-L230-CC06	R	20	230	–
ABHR-D50x68-W32-L280-CC09	R	32	280	–
