Tool Holders / Rough Boring Bars

ABHR-D90x120-W32-L140-CC12

Name: ABHR-D90x120-W32-L140-CC12
Brand: Axior
SKU: ABHR-D90x120-W32-L140-CC12

ABHR series · see all 31 sizes

This size is built for the insert designation CC.T 1204 (as listed in the catalogue data).

Specifications — ABHR-D90x120-W32-L140-CC12

Insert Code	Insert designation	CC.T 1204..
Product Direction	Cutting direction (hand)	R
DCON	Connection diameter (mm)	32
OAL	Overall length (mm)	140
BD	Bore diameter (mm)	72
LF	Functional length (mm)	80
DCN-DCX	Cutting diameter range, DCN-DCX (mm)	90-120
DCONMS	Connection diameter, machine side (mm)	63

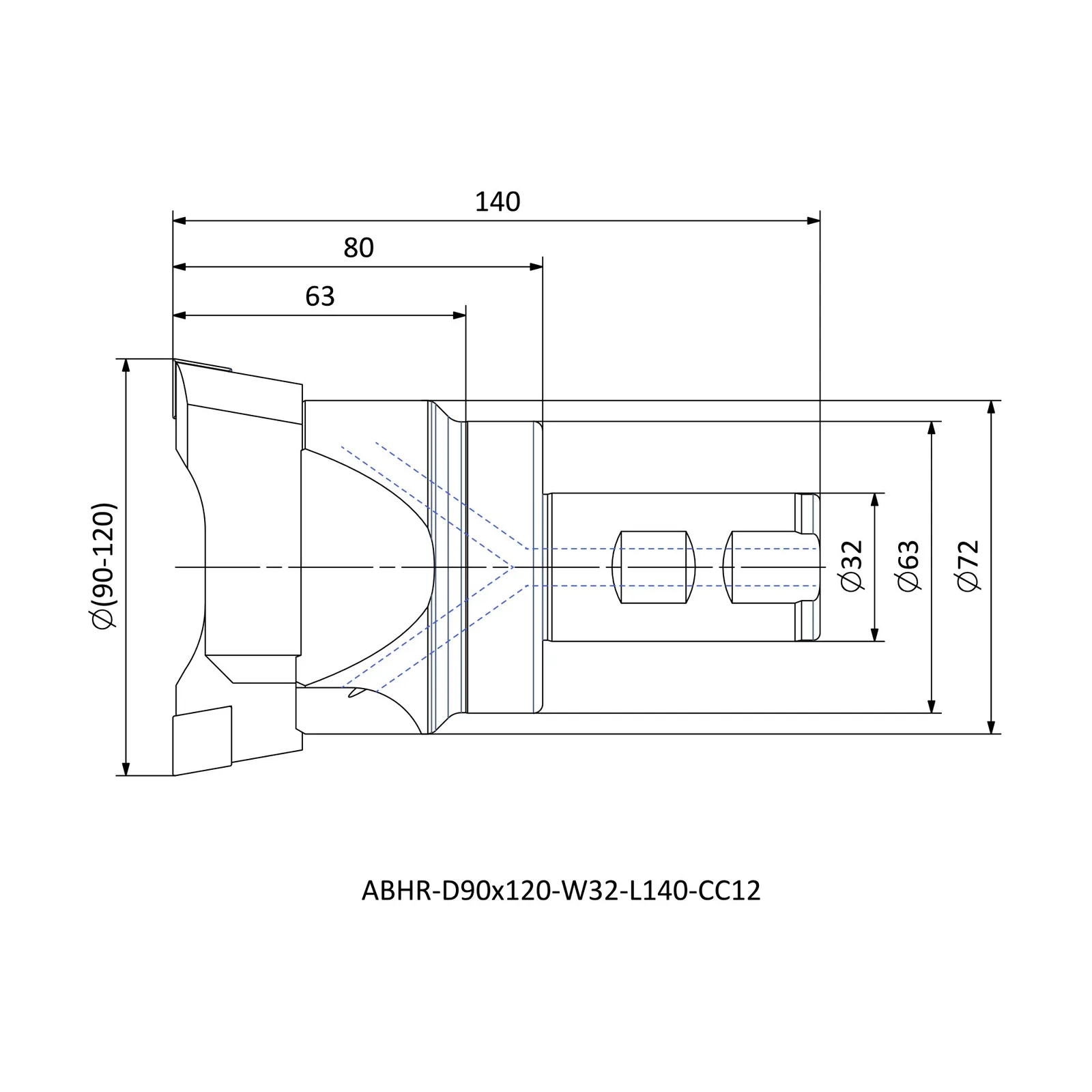

L1	Dimension L1 — see drawing (mm)	63

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Connection diameter (mm)	Overall length (mm)	Bore diameter (mm)
ABHR-D36x50-W25-L120-CC09	R	25	120	–
ABHR-D36x50-W25-L170-CC09	R	25	170	–
ABHR-D36x50-W25-L250-CC09	R	25	250	–
ABHR-D50x68-W32-L140-CC12	R	32	140	–
ABHR-D50x68-W32-L200-CC12	R	32	200	–
ABHR-D50x68-W32-L280-CC12	R	32	280	–
ABHR-D160x200-W40-L300-B-CC12	R	40	300	95
ABHR-D36x50-W25-L170-CC06	R	25	170	–
ABHR-D50x68-W32-L200-CC09	R	32	200	–
ABHR-D68x90-W32-L210-CC12	R	32	210	54
ABHR-D90x120-W32-L140-CC12	R	32	140	72
ABHR-D18x22-W16-L150-CC06	R	16	150	–
ABHR-D22x28-W20-L150-CC06	R	20	150	–
ABHR-D18x22-W16-L200-CC06	R	16	200	–
ABHR-D28x38-W20-L160-CC06	R	20	160	–
ABHR-D50x68-W32-L140-CC09	R	32	140	–
ABHR-D160x200-W40-L210-B-CC12	R	40	210	95
ABHR-D18x22-W16-L90-CC06	R	16	90	–
ABHR-D36x50-W25-L120-CC06	R	25	120	–
ABHR-D36x50-W25-L250-CC06	R	25	250	–
ABHR-D22x28-W20-L200-CC06	R	20	200	–
ABHR-D68x90-W32-L160-CC12	R	32	160	54
ABHR-D68x90-W32-L280-CC12	R	32	280	54
ABHR-D90x120-W40-L300-CC12	R	40	300	72
ABHR-D120x160-W40-L210-CC12	R	40	210	95
ABHR-D120x160-W40-L300-CC12	R	40	300	95
ABHR-D28x38-W20-L110-CC06	R	20	110	–
ABHR-D90x120-W40-L200-CC12	R	40	200	72
ABHR-D22x28-W20-L100-CC06	R	20	100	–
ABHR-D28x38-W20-L230-CC06	R	20	230	–
ABHR-D50x68-W32-L280-CC09	R	32	280	–
