SDUCR/L

58 sizes available · 10 specification fields · standard: ISO

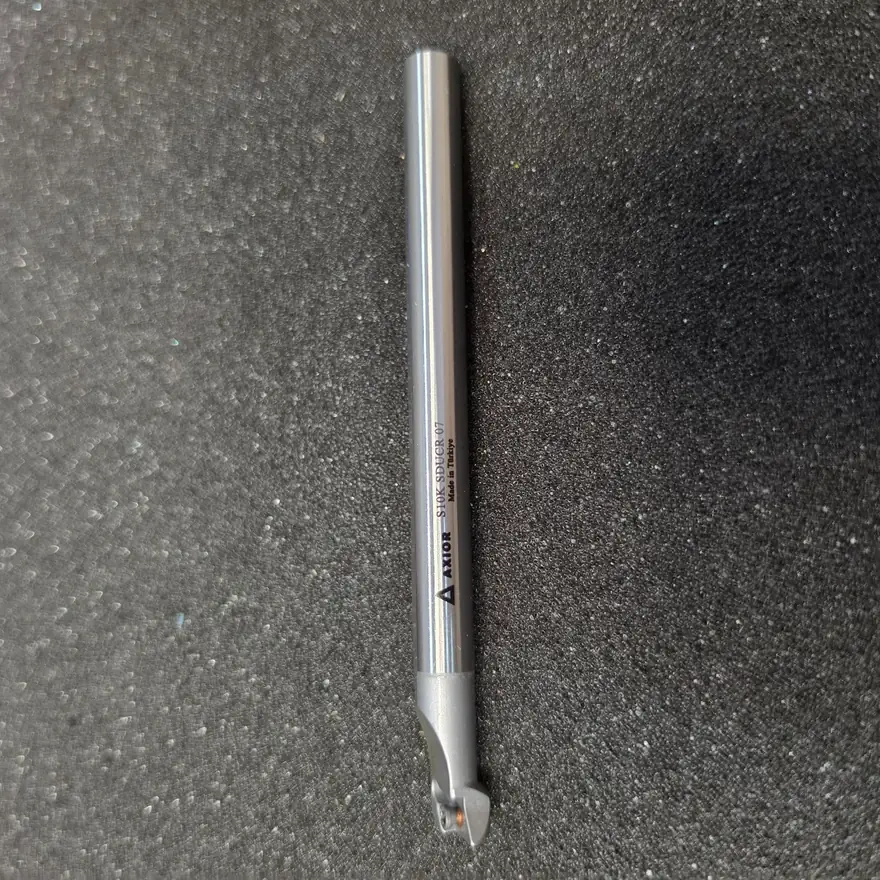

SDUCR/L is a boring bar for internal turning that takes positive 55° rhombic (D-type) inserts. It is listed here in 58 sizes, 9–47 mm shank height, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: boring, internal turning and back-facing.

Insert compatibility

This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.

DC.T 0702..
DC.T 11T3..

Choose a size ↓ Ask about SDUCR/L

Specifications

Product code	Insert designation	Cutting direction (hand)	Connection diameter (mm)	Bore diameter (mm)	Functional length (mm)	Functional width (mm)	Usable length (mm)	Shank height (mm)	Minimum working diameter (mm)
S10K SDUCL 07	DC.T 0702..	L	10	10	125	8	25	9	≥13
S10K SDUCR 07	DC.T 0702..	R	10	10	125	8	25	9	≥13
A12H SDUCR 07	DC.T 0702..	R	12	12	100	9	25	11	≥16
A12H SDUCL 07	DC.T 0702..	L	12	–	100	9	–	11	≥16
A16M SDUCR 07	DC.T 0702..	R	16	16	150	11	35	14.8	≥20
A16M SDUCL 07	DC.T 0702..	L	16	16	150	11	35	14.8	≥20
A40T SDUCR 11	DC.T 11T3..	R	40	40	300	27	70	37.5	≥50
A40T SDUCL 11	DC.T 11T3..	L	40	40	300	27	70	37.5	≥50
S0810M SDUCL 07	DC.T 0702..	L	10	9.5	150	8	30	9	≥13
S0810M SDUCR 07	DC.T 0702..	R	10	9.5	150	8	30	9	≥13
A10H SDUCL 07	DC.T 0702..	L	10	10	100	8	25	9	≥13
A10H SDUCR 07	DC.T 0702..	R	10	–	100	8	25	9	≥13
S12K SDUCL 07	DC.T 0702..	L	12	12	125	9	25	11	≥16
S12K SDUCR 07	DC.T 0702..	R	12	12	125	9	25	11	≥16
S16P SDUCL 07	DC.T 0702..	L	16	16	170	11	35	14.8	≥20
S16P SDUCR 07	DC.T 0702..	R	16	16	170	11	35	14.8	≥20
S0810K SDUCL 07	DC.T 0702..	L	10	8	125	8	30	9	≥13
S0810K SDUCR 07	DC.T 0702..	R	10	8	125	8	30	9	≥13
S1216P SDUCL 07	DC.T 0702..	L	16	11.5	170	9	37	14.8	≥16
S1216P SDUCR 07	DC.T 0702..	R	16	11.5	170	9	37	14.8	≥16
S1416P SDUCL 07	DC.T 0702..	L	16	14	170	9.5	45	14.8	≥17
S1416P SDUCR 07	DC.T 0702..	R	16	14	170	9.5	45	14.8	≥17
S20R SDUCL 07	DC.T 0702..	L	20	20	200	13	40	18.3	≥25
S20R SDUCR 07	DC.T 0702..	R	20	20	200	13	40	18.3	≥25
S1416P SDUCL 11	DC.T 11T3..	L	16	14	170	11	45	14.8	≥18
S1416P SDUCR 11	DC.T 11T3..	R	16	14	170	11	45	14.8	≥18
S16P SDUCL 11	DC.T 11T3..	L	16	16	170	11	35	14.8	≥20
S16P SDUCR 11	DC.T 11T3..	R	16	16	170	11	35	14.8	≥20
S1620R SDUCL 11	DC.T 11T3..	L	20	16	200	11	50	18.3	≥20
S1620R SDUCR 11	DC.T 11T3..	R	20	16	200	11	50	18.3	≥20
S20R SDUCL 11	DC.T 11T3..	L	20	20	200	13	40	18.3	≥25
S20R SDUCR 11	DC.T 11T3..	R	20	20	200	13	40	18.3	≥25
S25S SDUCL 11	DC.T 11T3..	L	25	25	250	17	50	23	≥32
S25S SDUCR 11	DC.T 11T3..	R	25	25	350	17	50	23	≥32
S25T SDUCL 11	DC.T 11T3..	L	25	25	300	17	50	23	≥32
S25T SDUCR 11	DC.T 11T3..	R	25	25	300	17	50	23	≥32
S32T SDUCL 11	DC.T 11T3..	L	32	32	300	22	60	30	≥40
S32T SDUCR 11	DC.T 11T3..	R	32	32	300	22	60	30	≥40
S40U SDUCL 11	DC.T 11T3..	L	40	40	350	27	70	37.5	≥50
S40U SDUCR 11	DC.T 11T3..	R	40	40	350	27	70	37.5	≥50
S50V SDUCL 11	DC.T 11T3..	L	50	50	400	35	80	47	≥63
S50V SDUCR 11	DC.T 11T3..	R	50	50	400	35	80	47	≥63
A0810H SDUCL 07	DC.T 0702..	L	10	8	100	8	30	9	≥13
A0810H SDUCR 07	DC.T 0702..	R	10	8	100	8	30	9	≥13
A16M SDUCL 11	DC.T 11T3..	L	16	16	150	11	35	14.8	≥20
A16M SDUCR 11	DC.T 11T3..	R	16	16	150	11	35	14.8	≥20
A20P SDUCL 07	DC.T 0702..	L	20	20	170	13	40	18.3	≥25
A20P SDUCR 07	DC.T 0702..	R	20	20	170	13	40	18.3	≥25
A20P SDUCL 11	DC.T 11T3..	L	20	20	170	13	40	18.5	≥25
A20P SDUCR 11	DC.T 11T3..	R	20	20	170	13	40	18.5	≥25
A25R SDUCL 11	DC.T 11T3..	L	25	25	200	17	50	23	≥32
A25R SDUCR 11	DC.T 11T3..	R	25	25	200	17	50	23	≥32
A25T SDUCL 11	DC.T 11T3..	L	25	25	300	17	50	23	≥32
A25T SDUCR 11	DC.T 11T3..	R	25	25	300	17	50	23	≥32
A32S SDUCL 11	DC.T 11T3..	L	32	32	250	22	60	30	≥40
A32S SDUCR 11	DC.T 11T3..	R	32	32	250	22	60	30	≥40
A50U SDUCR 11	DC.T 11T3..	R	50	50	350	35	80	47	≥63
A50U SDUCL 11	DC.T 11T3..	L	50	50	350	35	80	47	≥63
