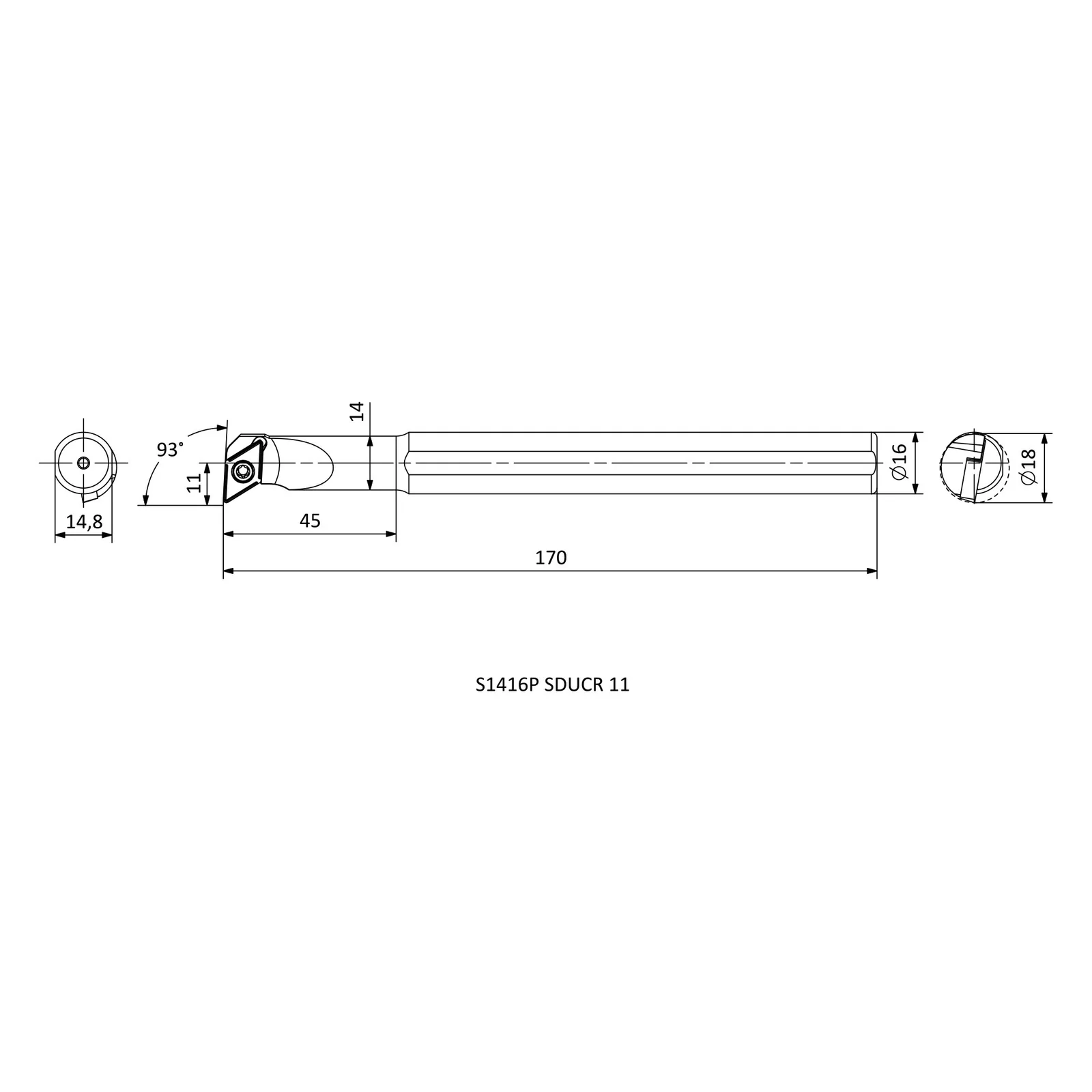

S1416P SDUCR 11

Name: S1416P SDUCR 11
Brand: Axior
SKU: S1416P SDUCR 11

SDUCR/L series · see all 58 sizes

This size is built for the insert designation DC.T 11T3 (as listed in the catalogue data).

Specifications — S1416P SDUCR 11

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Connection diameter (mm)	Bore diameter (mm)	Functional length (mm)
S10K SDUCL 07	L	10	10	125
S10K SDUCR 07	R	10	10	125
A12H SDUCR 07	R	12	12	100
A12H SDUCL 07	L	12	–	100
A16M SDUCR 07	R	16	16	150
A16M SDUCL 07	L	16	16	150
A40T SDUCR 11	R	40	40	300
A40T SDUCL 11	L	40	40	300
S0810M SDUCL 07	L	10	9.5	150
S0810M SDUCR 07	R	10	9.5	150
A10H SDUCL 07	L	10	10	100
A10H SDUCR 07	R	10	–	100
S12K SDUCL 07	L	12	12	125
S12K SDUCR 07	R	12	12	125
S16P SDUCL 07	L	16	16	170
S16P SDUCR 07	R	16	16	170
S0810K SDUCL 07	L	10	8	125
S0810K SDUCR 07	R	10	8	125
S1216P SDUCL 07	L	16	11.5	170
S1216P SDUCR 07	R	16	11.5	170
S1416P SDUCL 07	L	16	14	170
S1416P SDUCR 07	R	16	14	170
S20R SDUCL 07	L	20	20	200
S20R SDUCR 07	R	20	20	200
S1416P SDUCL 11	L	16	14	170
S1416P SDUCR 11	R	16	14	170
S16P SDUCL 11	L	16	16	170
S16P SDUCR 11	R	16	16	170
S1620R SDUCL 11	L	20	16	200
S1620R SDUCR 11	R	20	16	200
S20R SDUCL 11	L	20	20	200
S20R SDUCR 11	R	20	20	200
S25S SDUCL 11	L	25	25	250
S25S SDUCR 11	R	25	25	350
S25T SDUCL 11	L	25	25	300
S25T SDUCR 11	R	25	25	300
S32T SDUCL 11	L	32	32	300
S32T SDUCR 11	R	32	32	300
S40U SDUCL 11	L	40	40	350
S40U SDUCR 11	R	40	40	350
S50V SDUCL 11	L	50	50	400
S50V SDUCR 11	R	50	50	400
A0810H SDUCL 07	L	10	8	100
A0810H SDUCR 07	R	10	8	100
A16M SDUCL 11	L	16	16	150
A16M SDUCR 11	R	16	16	150
A20P SDUCL 07	L	20	20	170
A20P SDUCR 07	R	20	20	170
A20P SDUCL 11	L	20	20	170
A20P SDUCR 11	R	20	20	170
A25R SDUCL 11	L	25	25	200
A25R SDUCR 11	R	25	25	200
A25T SDUCL 11	L	25	25	300
A25T SDUCR 11	R	25	25	300
A32S SDUCL 11	L	32	32	250
A32S SDUCR 11	R	32	32	250
A50U SDUCR 11	R	50	50	350
A50U SDUCL 11	L	50	50	350
