Tool Holders / S-System Boring Bars
S25S SSSCL 09
SSSCR/L series · see all 12 sizes
Insert compatibility
This size is built for the insert designation SC.T 09T3 (as listed in the catalogue data).

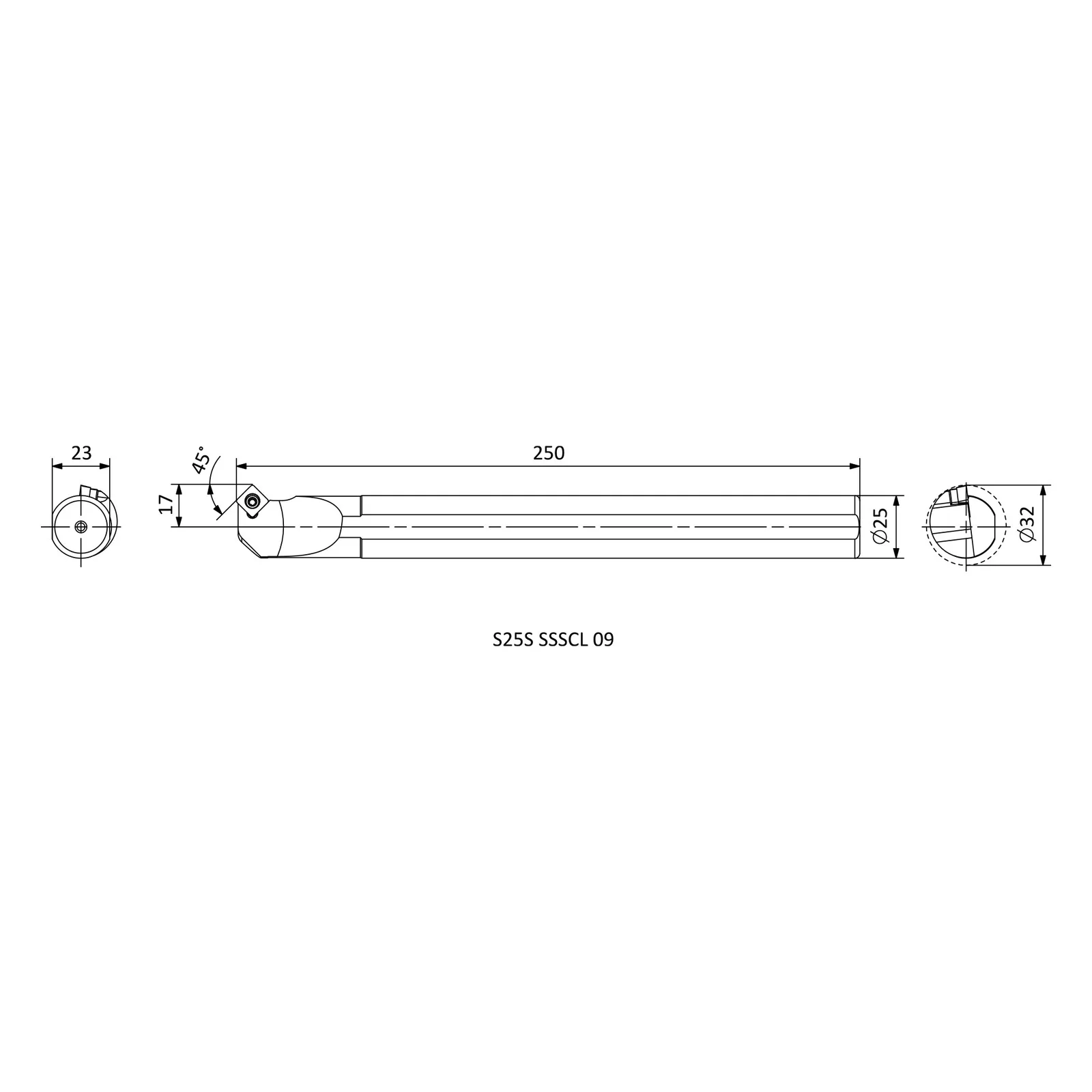

Specifications — S25S SSSCL 09
| Insert Code | Insert designation | SC.T 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 25 |
| LPR | Protruding / projection length (mm) | 250 |
| WF | Functional width (mm) | 17 |
| H | Shank height (mm) | 23 |
| D min | Minimum working diameter (mm) | ≥32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in SSSCR/L
