Tool Holders / S-System Boring Bars

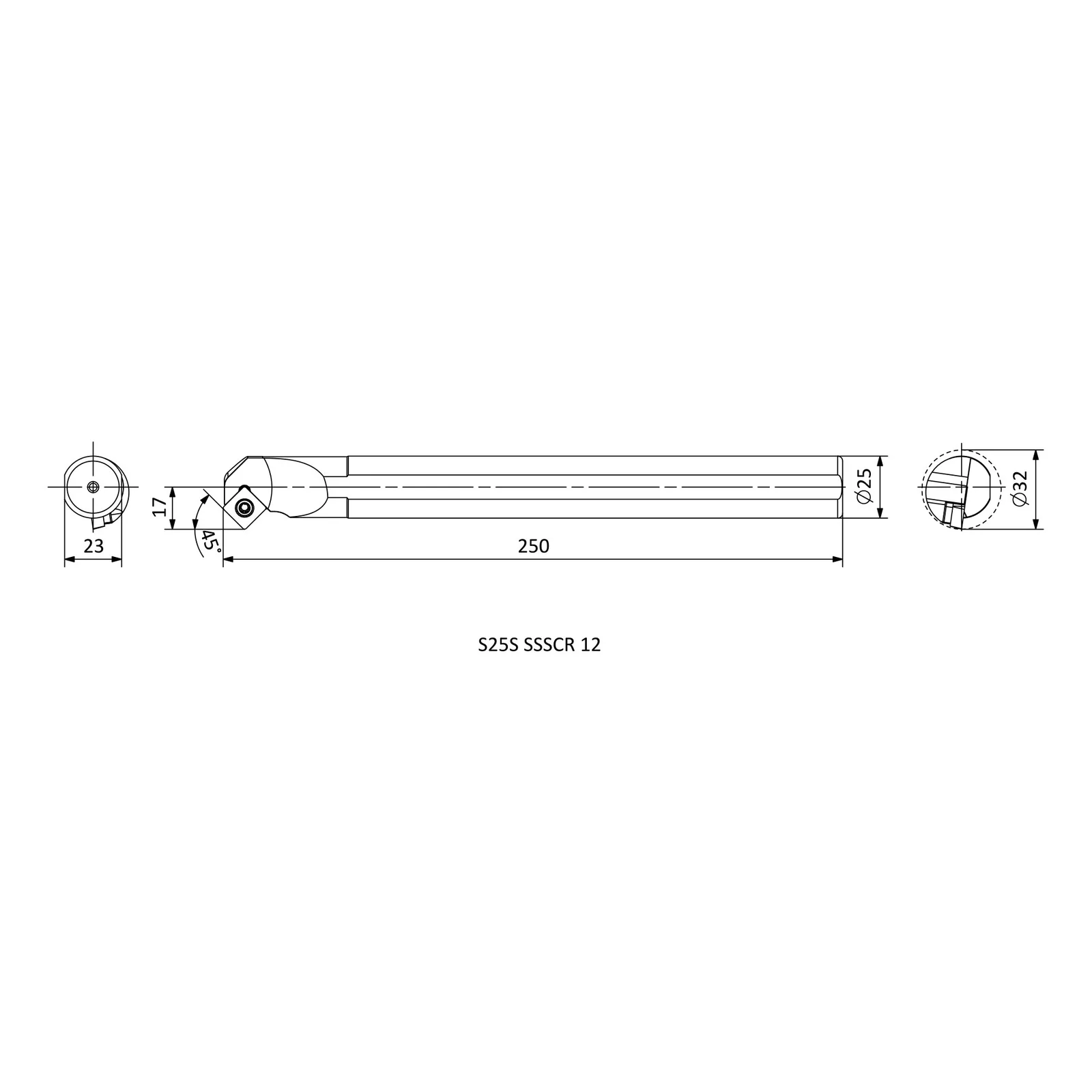

S25S SSSCR 12
SSSCR/L series · see all 12 sizes
Insert compatibility
This size is built for the insert designation SC.T 1204 (as listed in the catalogue data).
Specifications — S25S SSSCR 12
| Insert Code | Insert designation | SC.T 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 25 |
| LPR | Protruding / projection length (mm) | 250 |
| WF | Functional width (mm) | 17 |
| H | Shank height (mm) | 23 |
| D min | Minimum working diameter (mm) | ≥32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in SSSCR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Protruding / projection length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S16P SSSCL 09 | L | 16 | 170 | 11 |
| S16P SSSCR 09 | R | 16 | 170 | 11 |
| S20R SSSCL 09 | L | 20 | 200 | 13 |
| S20R SSSCR 09 | R | 20 | 200 | 13 |
| S25S SSSCL 09 | L | 25 | 250 | 17 |
| S25S SSSCR 09 | R | 25 | 250 | 17 |
| S25S SSSCL 12 | L | 25 | 250 | 17 |
| S25S SSSCR 12 | R | 25 | 250 | 17 |
| S32T SSSCL 12 | L | 32 | 300 | 22 |
| S32T SSSCR 12 | R | 32 | 300 | 22 |
| S40U SSSCL 12 | L | 40 | 350 | 27 |
| S40U SSSCR 12 | R | 40 | 350 | 27 |
