Tool Holders / S-System Highfeed End Mills
AHFM-BN10T3-D25-C25-L140-Z05-H
AHFM-BN series · see all 12 sizes
Insert compatibility
This size is built for the insert designation BNGX 10T3 (as listed in the catalogue data).

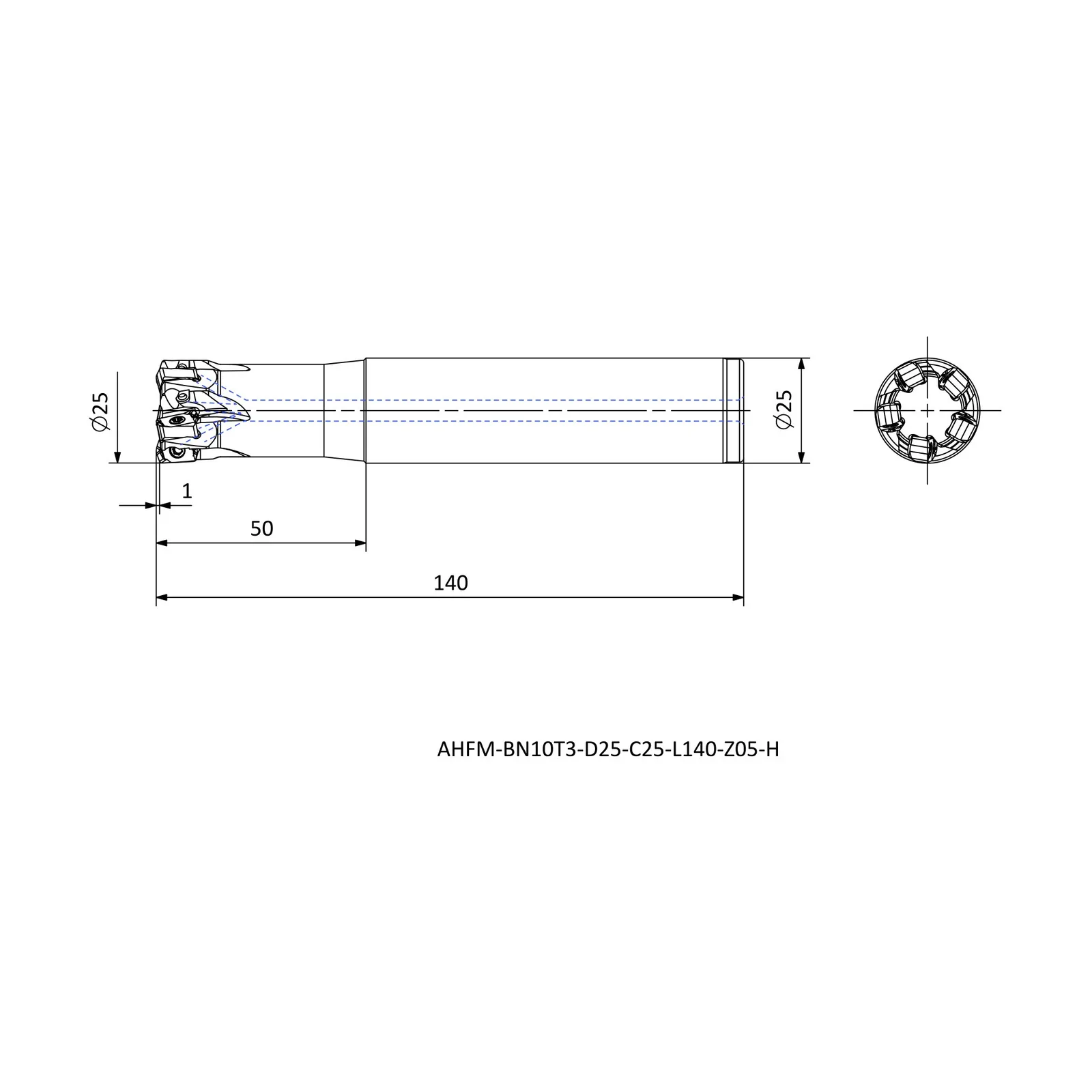

Specifications — AHFM-BN10T3-D25-C25-L140-Z05-H
| Insert Code | Insert designation | BNGX 10T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 140 |
| DCX | Maximum diameter (mm) | 25 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 5 |
| APMX | Depth of cut, maximum (mm) | 1 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in AHFM-BN
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-BN10T3-D20-C20-L130-Z03-H | R | 20 | 130 | 20 |
| AHFM-BN10T3-D25-C25-L180-Z04-H | R | 25 | 180 | 25 |
| AHFM-BN10T3-D25-W25-L140-Z04-H | R | 25 | 140 | 25 |
| AHFM-BN10T3-D16-C16-L150-Z02-H | R | 16 | 150 | 16 |
| AHFM-BN10T3-D16-C16-L100-Z02-H | R | 16 | 100 | 16 |
| AHFM-BN10T3-D20-C20-L130-Z04-H | R | 20 | 130 | 20 |
| AHFM-BN10T3-D25-C25-L140-Z04-H | R | 25 | 140 | 25 |
| AHFM-BN10T3-D32-C32-L150-Z06-H | R | 32 | 150 | 32 |
| AHFM-BN10T3-D20-C20-L160-Z03-H | R | 20 | 160 | 20 |
| AHFM-BN10T3-D25-C25-L140-Z05-H | R | 25 | 140 | 25 |
| AHFM-BN10T3-D35-C32-L200-Z06-H | R | 32 | 200 | 35 |
| AHFM-BN10T3-D32-C32-L150-Z05-H | R | 32 | 150 | 32 |
