Tool Holders / S-System Highfeed End Mills
AHFM-BN10T3-D25-W25-L140-Z04-H
AHFM-BN series · see all 12 sizes
Insert compatibility
This size is built for the insert designation BNGX 10T3 (as listed in the catalogue data).

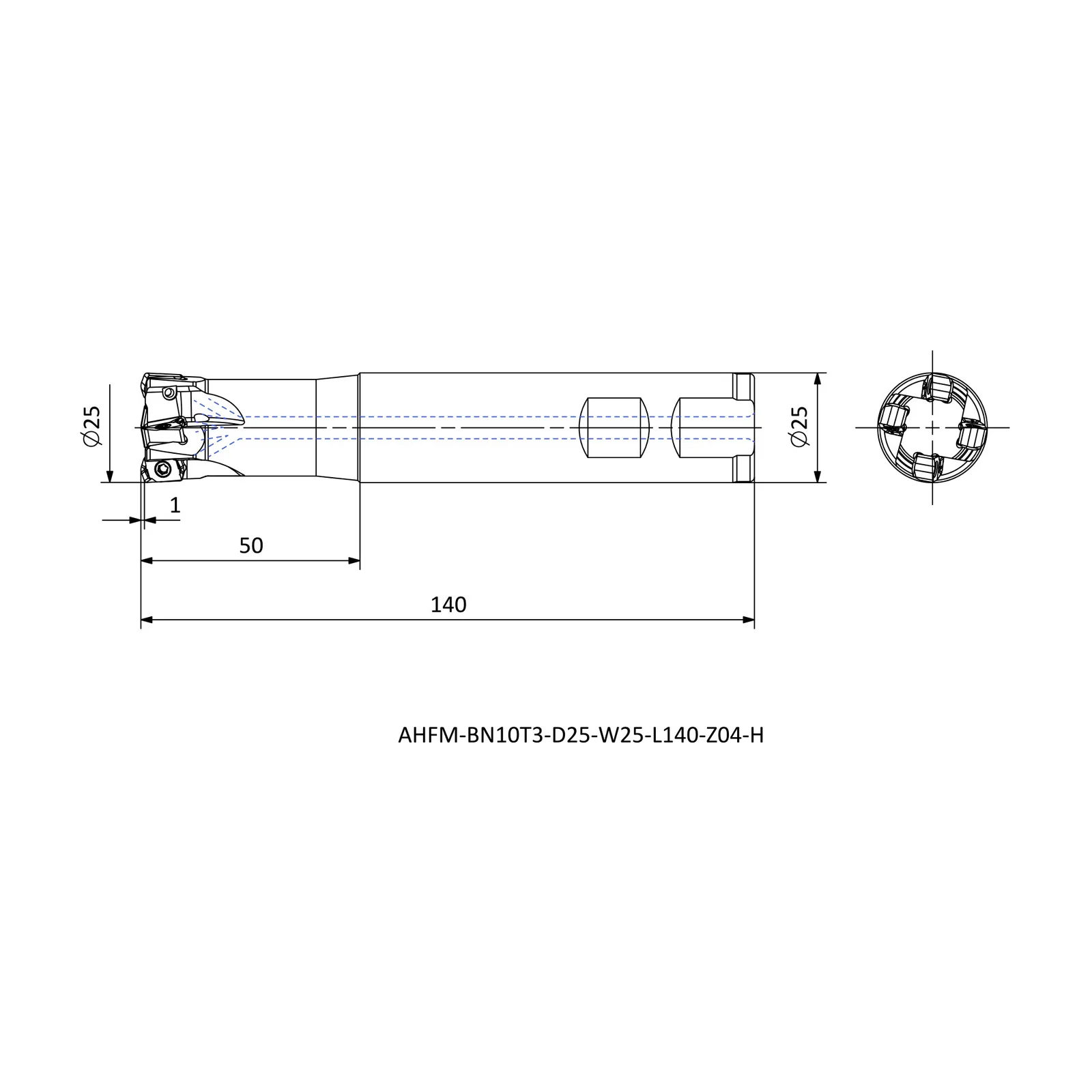

Specifications — AHFM-BN10T3-D25-W25-L140-Z04-H
| Insert Code | Insert designation | BNGX 10T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 140 |
| DCX | Maximum diameter (mm) | 25 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 1 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
