Tool Holders / S-System Highfeed End Mills
AHFM-WN0603-D20-C20-L150-Z02-H
AHFM-WN0603 series · see all 17 sizes
Insert compatibility
This size is built for the insert designation WNMX 0603 (as listed in the catalogue data).

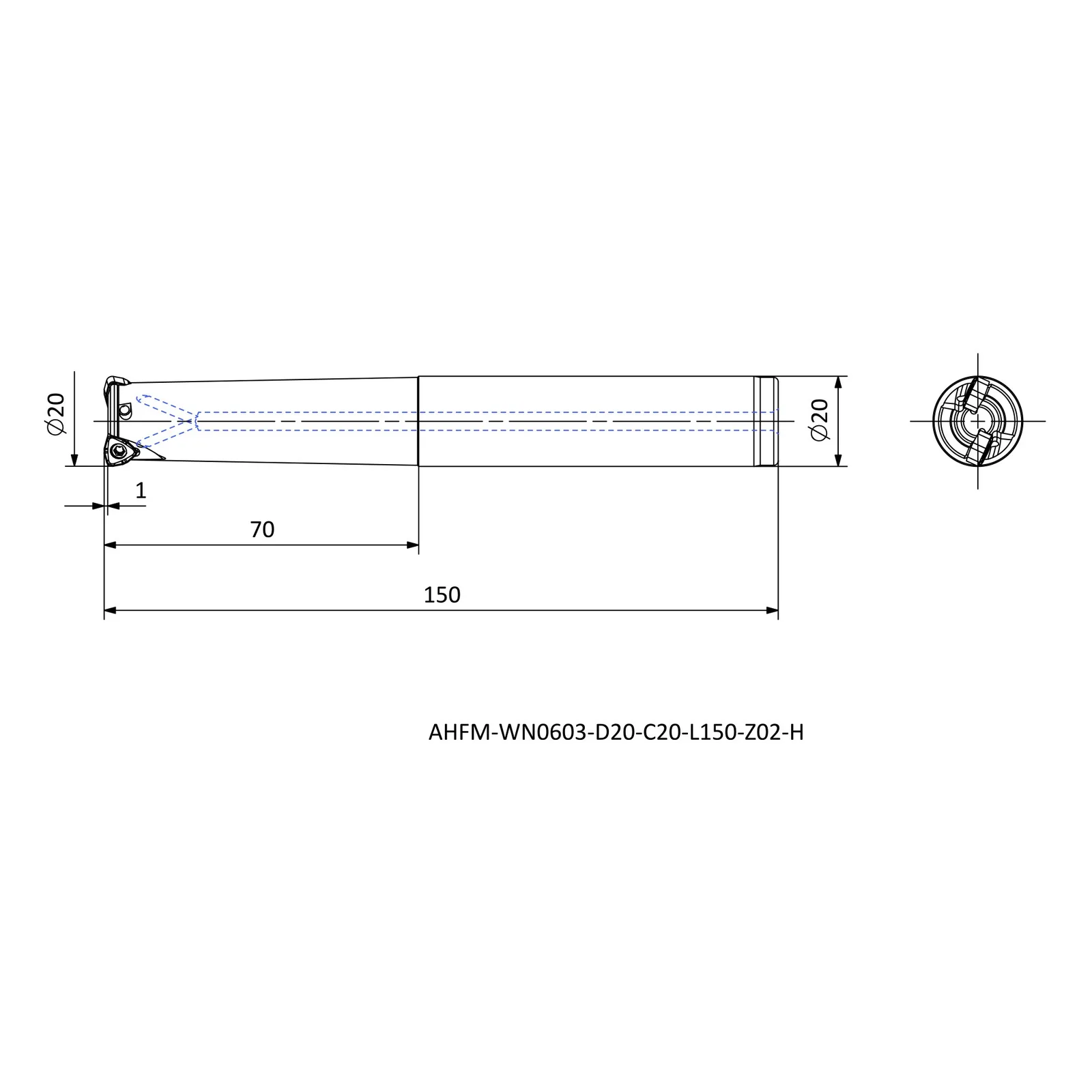

Specifications — AHFM-WN0603-D20-C20-L150-Z02-H
| Insert Code | Insert designation | WNMX 0603.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 20 |
| LH | Head length (mm) | 70 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 1 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 17 sizes in AHFM-WN0603
