Tool Holders / S-System Highfeed End Mills
AHFM-WN09T3-D40-W32-L120-Z04-H
AHFM-WN0603 series · see all 17 sizes
Insert compatibility
This size is built for the insert designation WNMX 09T3 (as listed in the catalogue data).

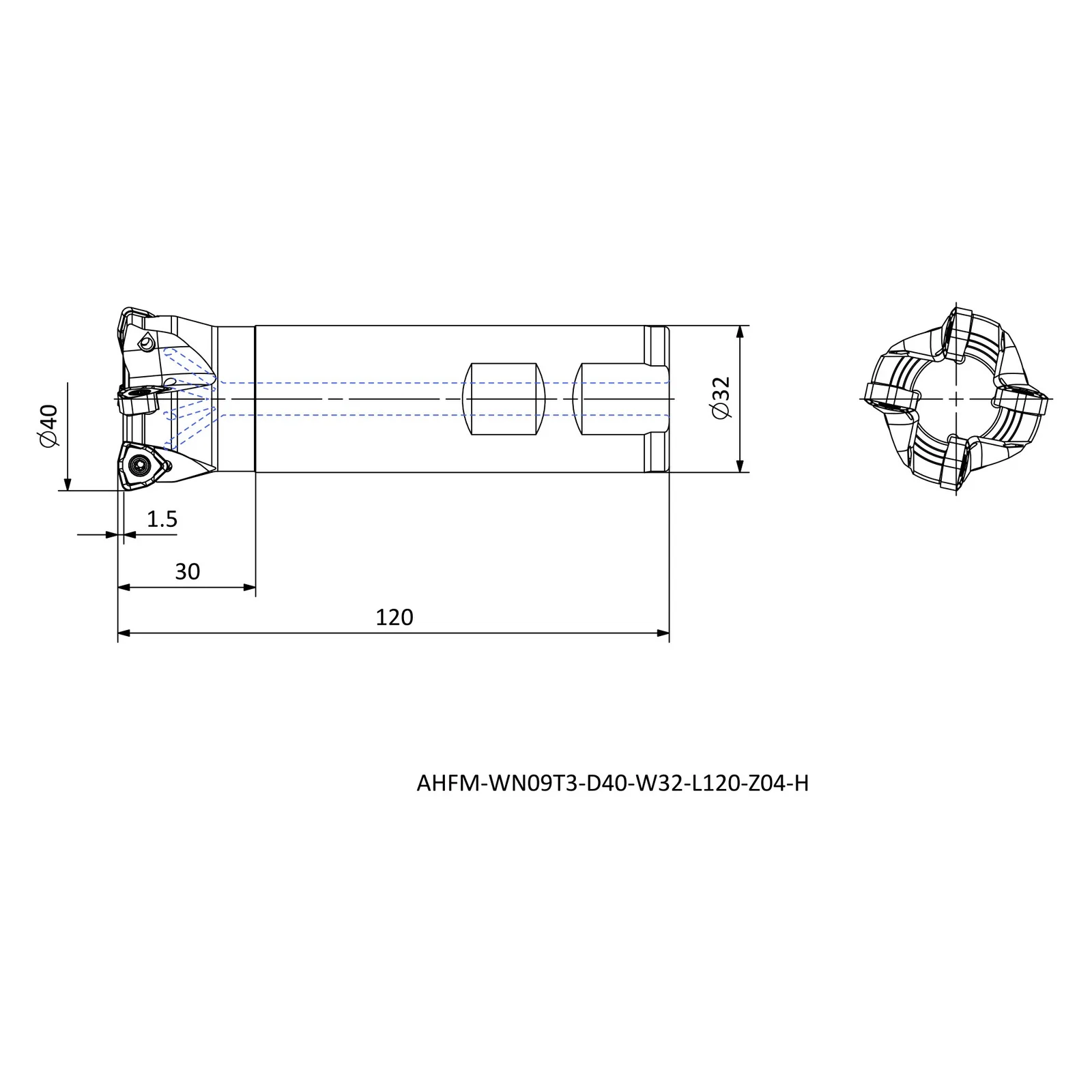

Specifications — AHFM-WN09T3-D40-W32-L120-Z04-H
| Insert Code | Insert designation | WNMX 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 120 |
| DCX | Maximum diameter (mm) | 40 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 1.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 17 sizes in AHFM-WN0603
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-WN0603-D16-C16-L110-Z02-H | R | 16 | 110 | 16 |
| AHFM-WN0603-D17-C16-L150-Z02-H | R | 16 | 150 | 17 |
| AHFM-WN09T3-D25-C25-L200-Z02 | R | 25 | 200 | 25 |
| AHFM-WN0603-D20-C20-L200-Z02-H | R | 20 | 200 | 20 |
| AHFM-WN09T3-D40-C32-L200-Z04 | R | 32 | 200 | 40 |
| AHFM-WN1305-D32-C32-L200-Z02-H | R | 32 | 200 | 32 |
| AHFM-WN0603-D21-C20-L150-Z02-H | R | 20 | 150 | 21 |
| AHFM-WN09T3-D32-W32-L200-Z03-H | R | 32 | 200 | 32 |
| AHFM-WN0603-D16-C16-L150-Z02-H | R | 16 | 150 | 16 |
| AHFM-WN09T3-D25-W25-L120-Z02-H | R | 25 | 120 | 25 |
| AHFM-WN1305-D40-C32-L200-Z03-H | R | 32 | 200 | 40 |
| AHFML-WN09T3-D25-W25-L120-Z02-H | R | 25 | 120 | 25 |
| AHFM-WN0603-D20-C20-L150-Z02-H | R | 20 | 150 | 20 |
| AHFM-WN09T3-D32-W32-L120-Z03-H | R | 32 | 120 | 32 |
| AHFM-WN09T3-D35-W32-L200-Z04-H | R | 32 | 200 | 35 |
| AHFM-WN09T3-D40-W32-L120-Z04-H | R | 32 | 120 | 40 |
| AHFM-WN1305-D32-C32-L150-Z02-H | R | 32 | 150 | 32 |
