Tool Holders / S-System Highfeed End Mills
AHFM-WN09T3-D25-C25-L200-Z02
AHFM-WN0603 series · see all 17 sizes
Insert compatibility
This size is built for the insert designation WNMX 09T3 (as listed in the catalogue data).

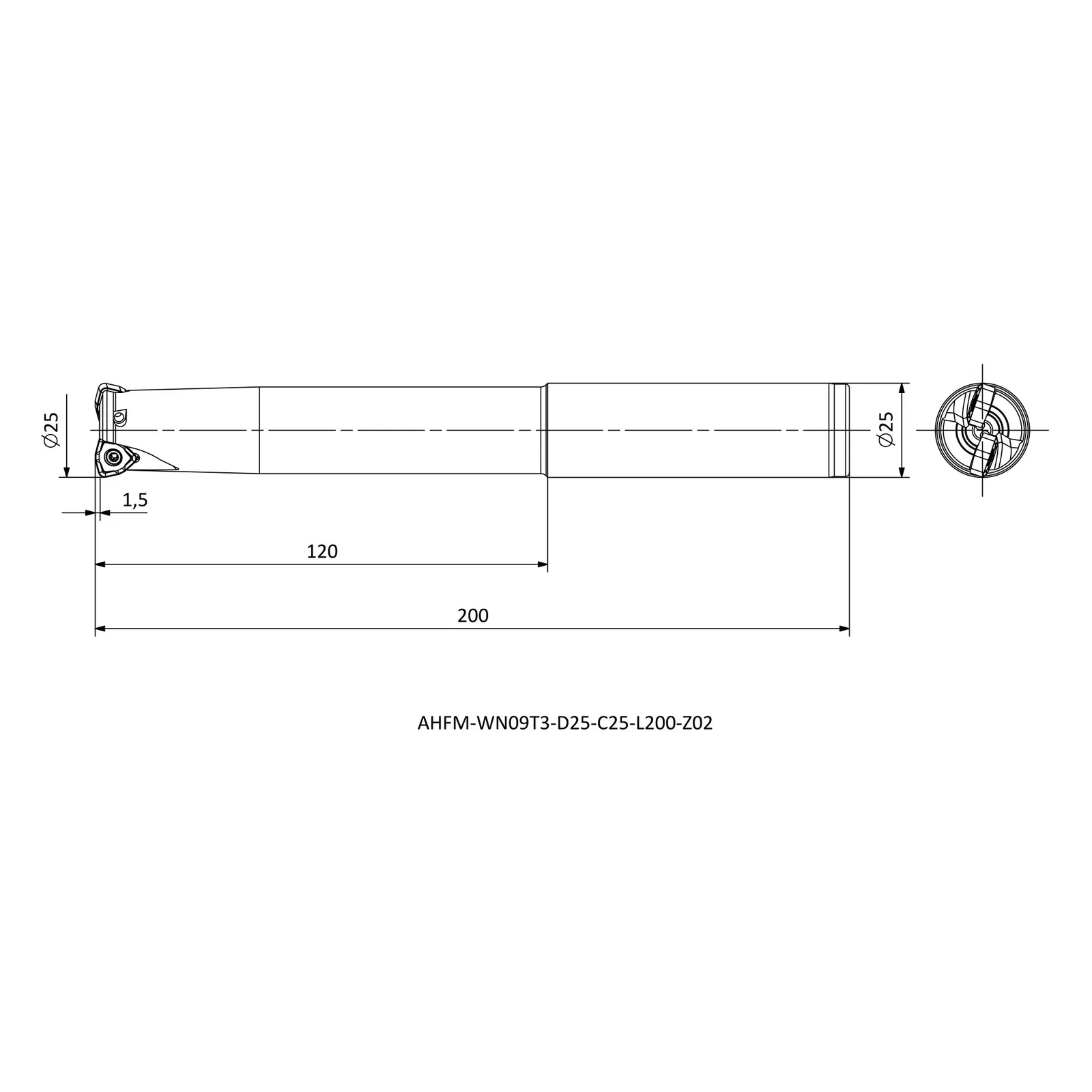

Specifications — AHFM-WN09T3-D25-C25-L200-Z02
| Insert Code | Insert designation | WNMX 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 200 |
| DCX | Maximum diameter (mm) | 25 |
| LH | Head length (mm) | 120 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 1.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 17 sizes in AHFM-WN0603
