Tool Holders / S-Type Engine Overhaul Cartridge
S1018 SCACR 06
SCACR/L series · see all 58 sizes
Insert compatibility
This size is built for the insert designation CC.T 0602 (as listed in the catalogue data).

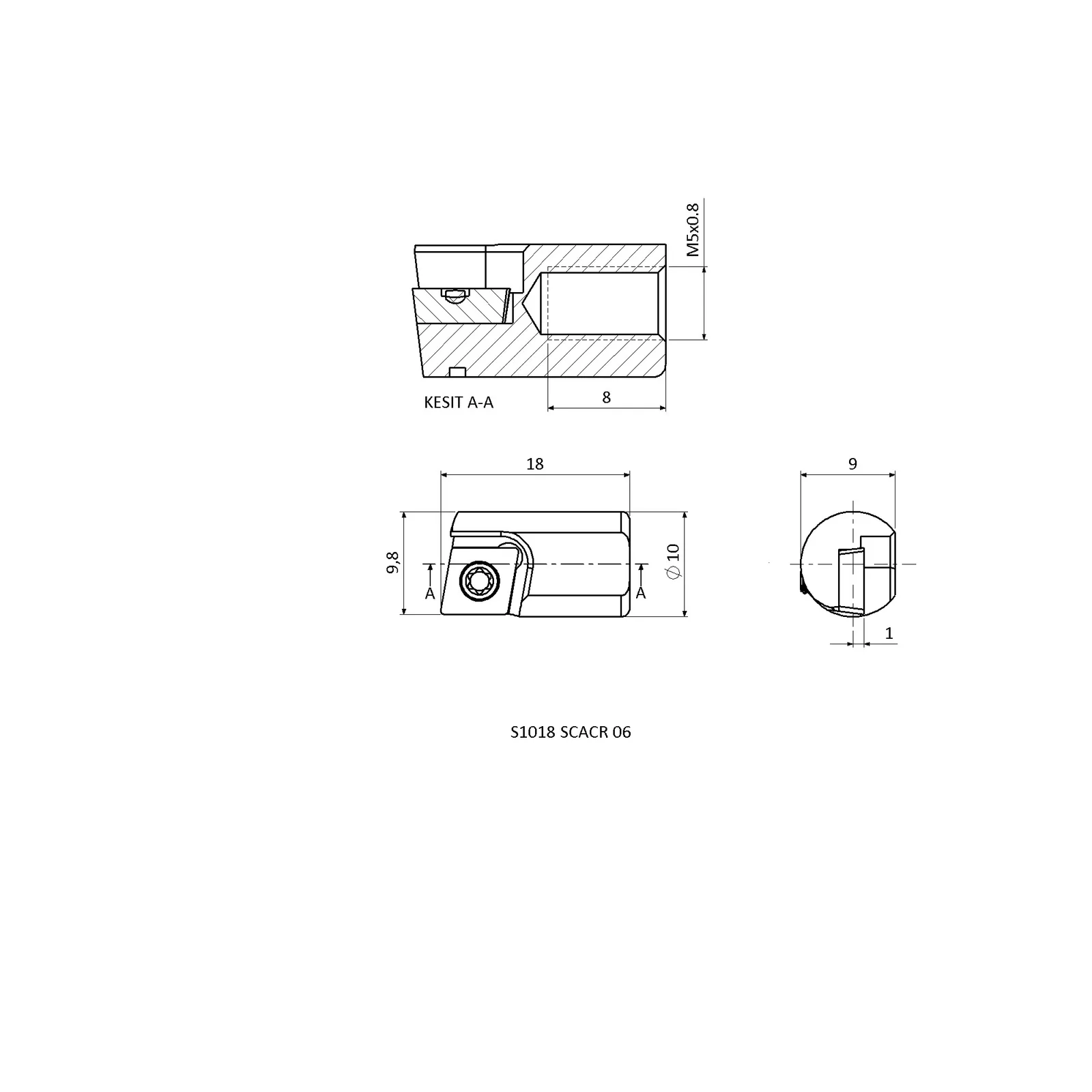

Specifications — S1018 SCACR 06
| Insert Code | Insert designation | CC.T 0602.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 10 |
| LF | Functional length (mm) | 18 |
| WF | Functional width (mm) | 9.8 |
| H | Shank height (mm) | 9 |
| THL | Thread length (mm) | 8 |
| TD | TD | M5x0.8 |
| HF | Functional height (mm) | 1 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
