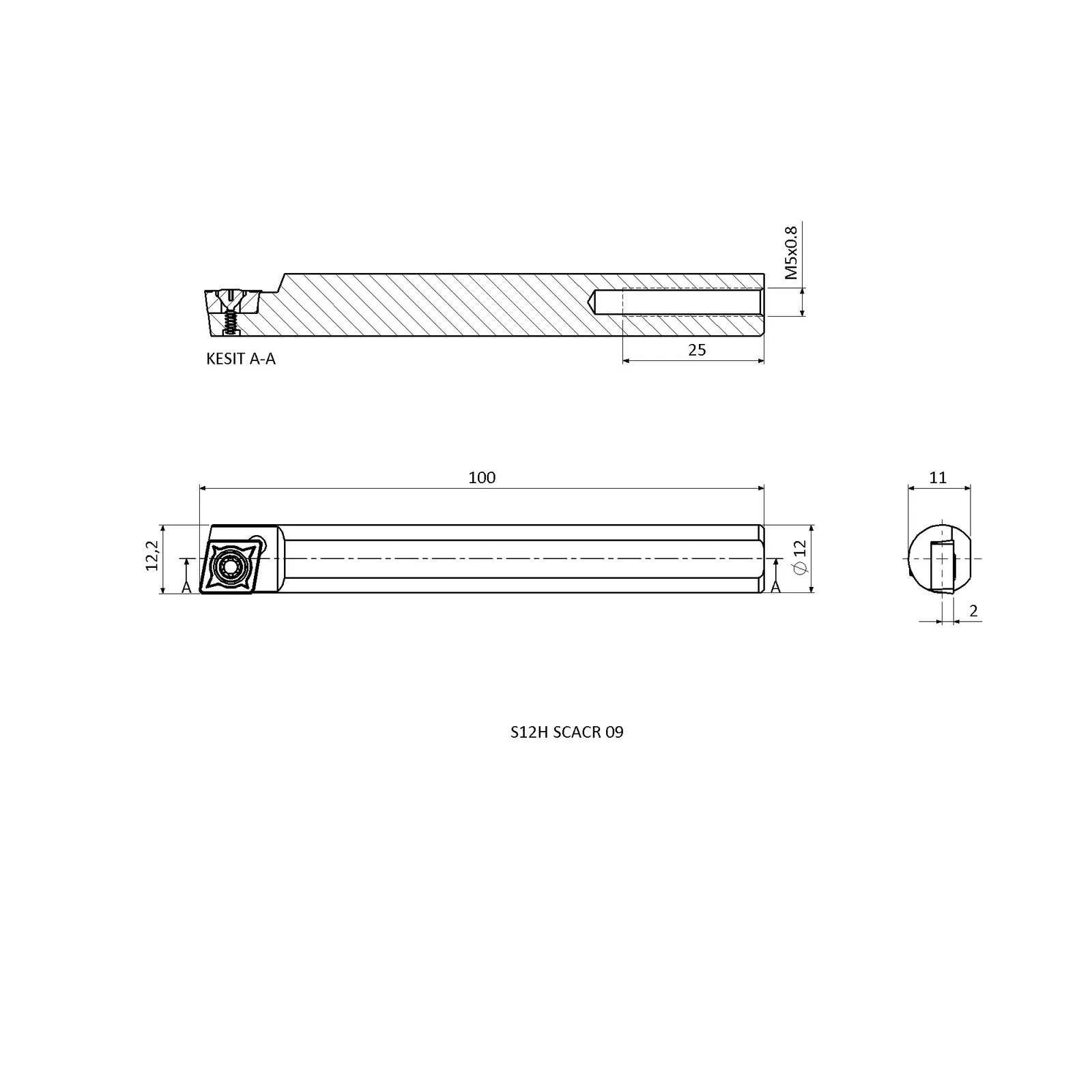

S12H SCACR 09

Name: S12H SCACR 09
Brand: Axior
SKU: S12H SCACR 09

SCACR/L series · see all 58 sizes

This size is built for the insert designation CC.T 09T3 (as listed in the catalogue data).

Specifications — S12H SCACR 09

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Connection diameter (mm)	Functional length (mm)	Functional width (mm)
S12D SCACR 06	R	12	60	12.3
S12D SCACL 06	L	12	60	12.3
S10X SCACL 06	L	10	25	10.3
S10X SCACR 06	R	10	25	10.3
S10A SCACL 06	L	10	32	10.3
S10A SCACR 06	R	10	32	10.3
S1018 SCACL 06	L	10	18	9.8
S1018 SCACR 06	R	10	18	9.8
S1065 SCACL 06	L	10	65	10.3
S1065 SCACR 06	R	10	65	10.3
S10C SCACL 06	L	10	50	10.3
S10C SCACR 06	R	10	50	10.3
S12B SCACL 06	L	12	40	12.3
S12B SCACR 06	R	12	40	12.3
S12D SCACL 09	L	12	60	12.2
S12D SCACR 09	R	12	60	12.3
S1265 SCACL 09	L	12	65	12.3
S1265 SCACR 09	R	12	65	12.3
S12H SCACL 09	L	12	100	12.2
S12H SCACR 09	R	12	100	12.2
S15C SCACL 09	L	15	50	15.3
S15C SCACR 09	R	15	50	15.3
S1554 SCACL 09	L	15	54	15.3
S1554 SCACR 09	R	15	54	15.3
S15E SCACL 09	L	15	70	15.3
S15E SCACR 09	R	15	70	15.3
S15D SCACL 09	L	15	60	15.3
S15D SCACR 09	R	15	60	15.3
S16A SCACL 09	L	16	32	16.5
S16A SCACR 09	R	16	32	16.5
S16B SCACL 09	L	16	40	16.5
S16B SCACR 09	R	16	40	16.5
S16C SCACL 09	L	16	50	16.5
S16C SCACR 09	R	16	50	16.5
S16D SCACL 09	L	16	60	16.5
S16D SCACR 09	R	16	60	16.5
S16E SCACL 09	L	16	70	16.5
S16E SCACR 09	R	16	70	16.5
S16G SCACL 09	L	16	90	16.5
S16G SCACR 09	R	16	90	16.5
S16H SCACL 09	L	16	100	16.5
S16H SCACR 09	R	16	100	16.5
S1868 SCACL 09	L	18	68	18.5
S1868 SCACR 09	R	18	68	18.5
S18E SCACL 09	L	18	70	18.5
S18E SCACR 09	R	18	70	18.5
S1888 SCACL 09	L	18	88	18.5
S1888 SCACR 09	R	18	88	18.5
S18105 SCACL 09	L	18	105	18.5
S18105 SCACR 09	R	18	105	18.5
S18175 SCACL 09	L	18	175	18.5
S18175 SCACR 09	R	18	175	18.5
S20E SCACL 09	L	20	70	20.5
S20E SCACR 09	R	20	70	20.5
S20E SCACL 12	L	20	70	20.5
S20E SCACR 12	R	20	70	20.5
S20H SCACL 12	L	20	100	20.5
S20H SCACR 12	R	20	100	20.5
