Rotating Tools / JIS B 6339 (MAS 403 BT) / BT Collet Chucks ER

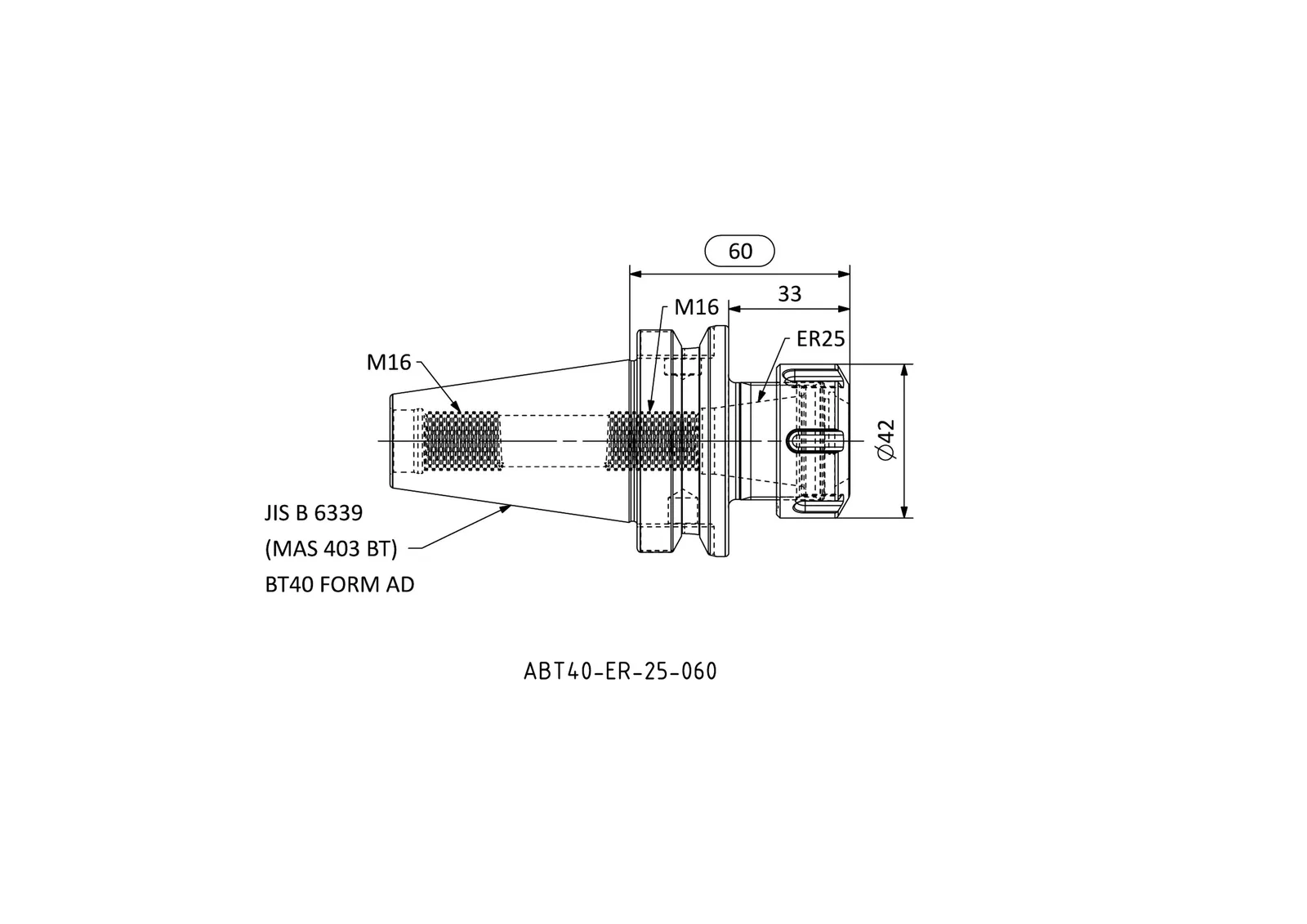

ABT40-ER-25-060

ABT-ER series · see all 30 sizes

Specifications — ABT40-ER-25-060

SS	Spindle / taper size	40
CRKS	Clamping / retention thread	M16
BD	Bore diameter (mm)	42
LB	Body length (mm)	33
CSI	CSI	ER25
DCONNWS	Connection diameter, neck, workpiece side (mm)	1
DCONXWS	Connection diameter, max, workpiece side (mm)	16
LPR	Protruding / projection length (mm)	60
THID	Thread inside diameter (mm)	M16
KG	Weight (kg)	1.09

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
