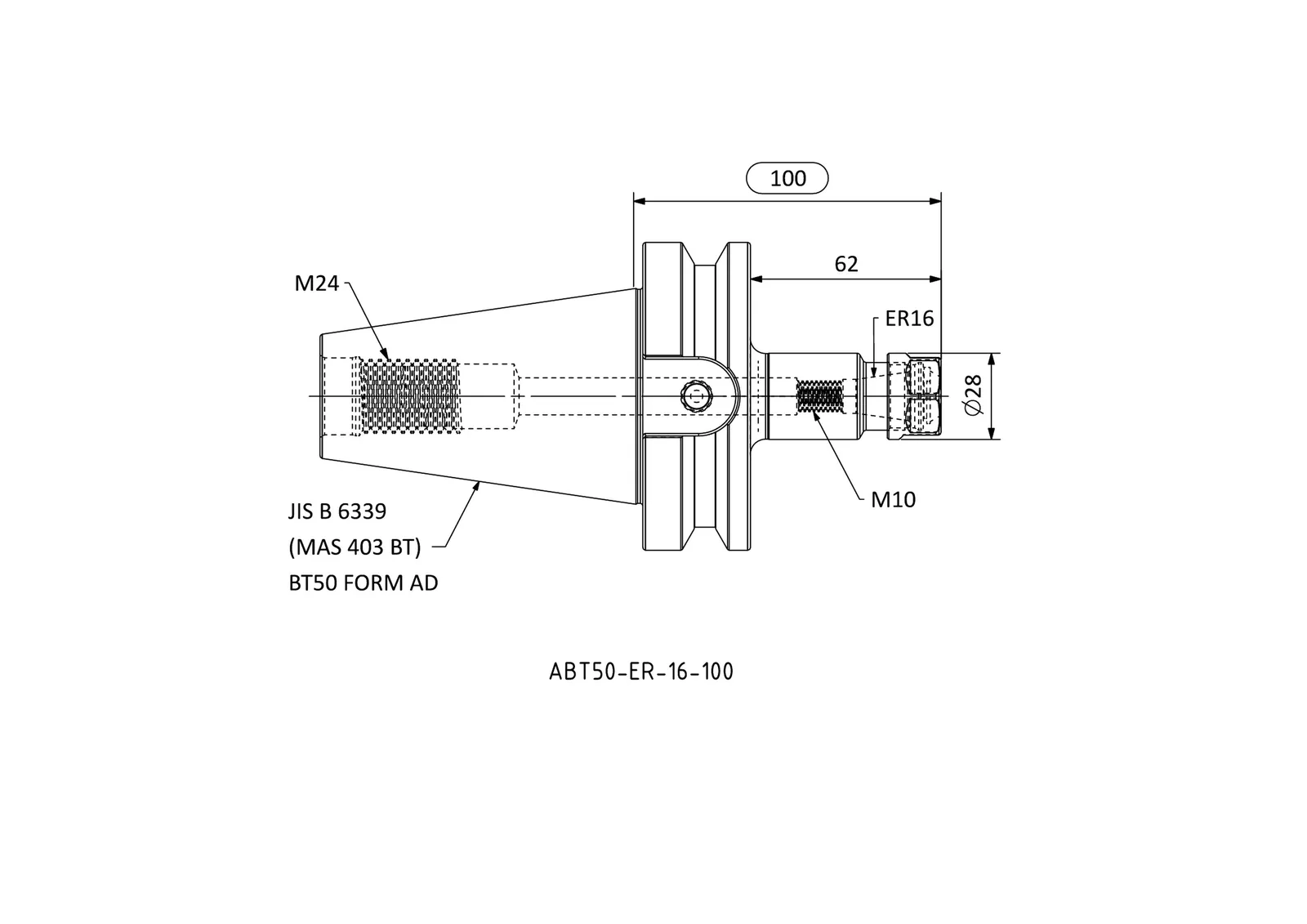

ABT50-ER-16-100

ABT-ER series · see all 30 sizes

Specifications — ABT50-ER-16-100

SS	Spindle / taper size	50
CRKS	Clamping / retention thread	M24
BD	Bore diameter (mm)	28
LB	Body length (mm)	73
CSI	CSI	ER16
DCONNWS	Connection diameter, neck, workpiece side (mm)	0.5
DCONXWS	Connection diameter, max, workpiece side (mm)	10
LPR	Protruding / projection length (mm)	100
THID	Thread inside diameter (mm)	M10
KG	Weight (kg)	3.81

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Spindle / taper size	Clamping / retention thread	Bore diameter (mm)	Body length (mm)
ABT30-ER-16-060	30	M12	28	33
ABT30-ER-16-100	30	M12	28	73
ABT30-ER-25-060	30	M12	42	33
ABT30-ER-25-100	30	M12	42	73
ABT40-ER-16-063	40	M16	28	36
ABT40-ER-16-100	40	M16	28	73
ABT40-ER-16-130	40	M16	28	103
ABT40-ER-25-060	40	M16	42	33
ABT40-ER-25-100	40	M16	42	73
ABT40-ER-25-130	40	M16	42	103
ABT40-ER-32-070	40	M16	50	43
ABT40-ER-32-100	40	M16	50	73
ABT40-ER-32-160	40	M16	50	133
ABT40-ER-40-080	40	M16	63	53
ABT40-ER-40-100	40	M16	63	73
ABT40-ER-40-160	40	M16	63	133
ABT50-ER-16-070	50	M24	28	43
ABT50-ER-16-100	50	M24	28	73
ABT50-ER-16-160	50	M24	28	133
ABT50-ER-25-070	50	M24	42	43
ABT50-ER-25-100	50	M24	42	73
ABT50-ER-25-130	50	M24	42	103
ABT50-ER-25-160	50	M24	42	133
ABT50-ER-32-070	50	M24	50	43
ABT50-ER-32-100	50	M24	50	73
ABT50-ER-32-130	50	M24	50	103
ABT50-ER-32-160	50	M24	50	133
ABT50-ER-40-080	50	M24	63	53
ABT50-ER-40-100	50	M24	63	73
ABT50-ER-40-160	50	M24	63	133
