Rotating Tools / JIS B 6339 (MAS 403 BT) / BT Collet Chucks ER

ABT40-ER-40-100

ABT-ER series · see all 30 sizes

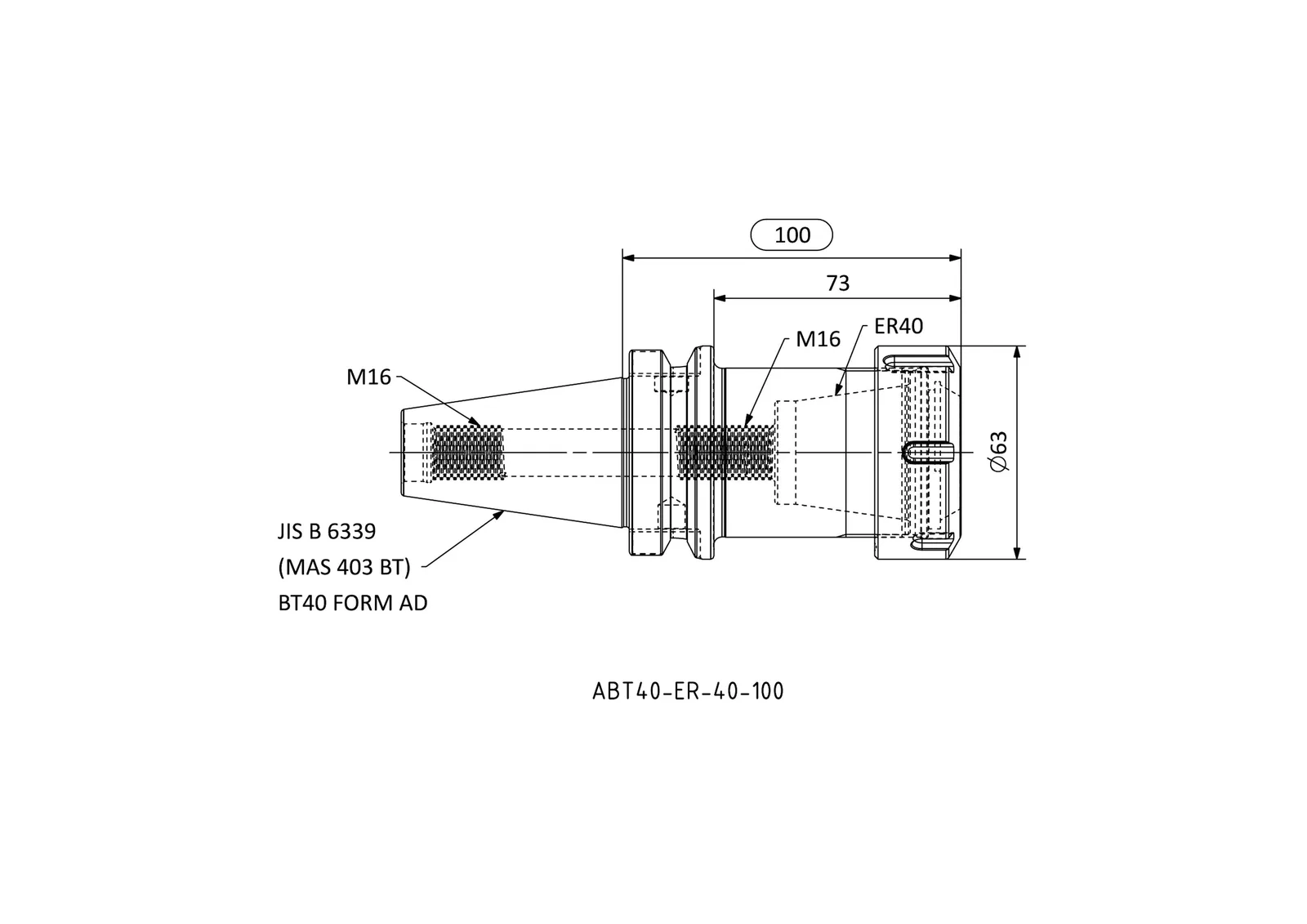

Specifications — ABT40-ER-40-100

SS	Spindle / taper size	40
CRKS	Clamping / retention thread	M16
BD	Bore diameter (mm)	63
LB	Body length (mm)	73
CSI	CSI	ER40
DCONNWS	Connection diameter, neck, workpiece side (mm)	3
DCONXWS	Connection diameter, max, workpiece side (mm)	26
LPR	Protruding / projection length (mm)	100
THID	Thread inside diameter (mm)	M16
KG	Weight (kg)	2.08

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
