Tool Holders / Economic Cutting Tools
AEKR-D2.25X10 XC.. 050204
AEKR/L series · see all 18 sizes
Insert compatibility
This size is built for the insert designation XC.. 050204 (as listed in the catalogue data).

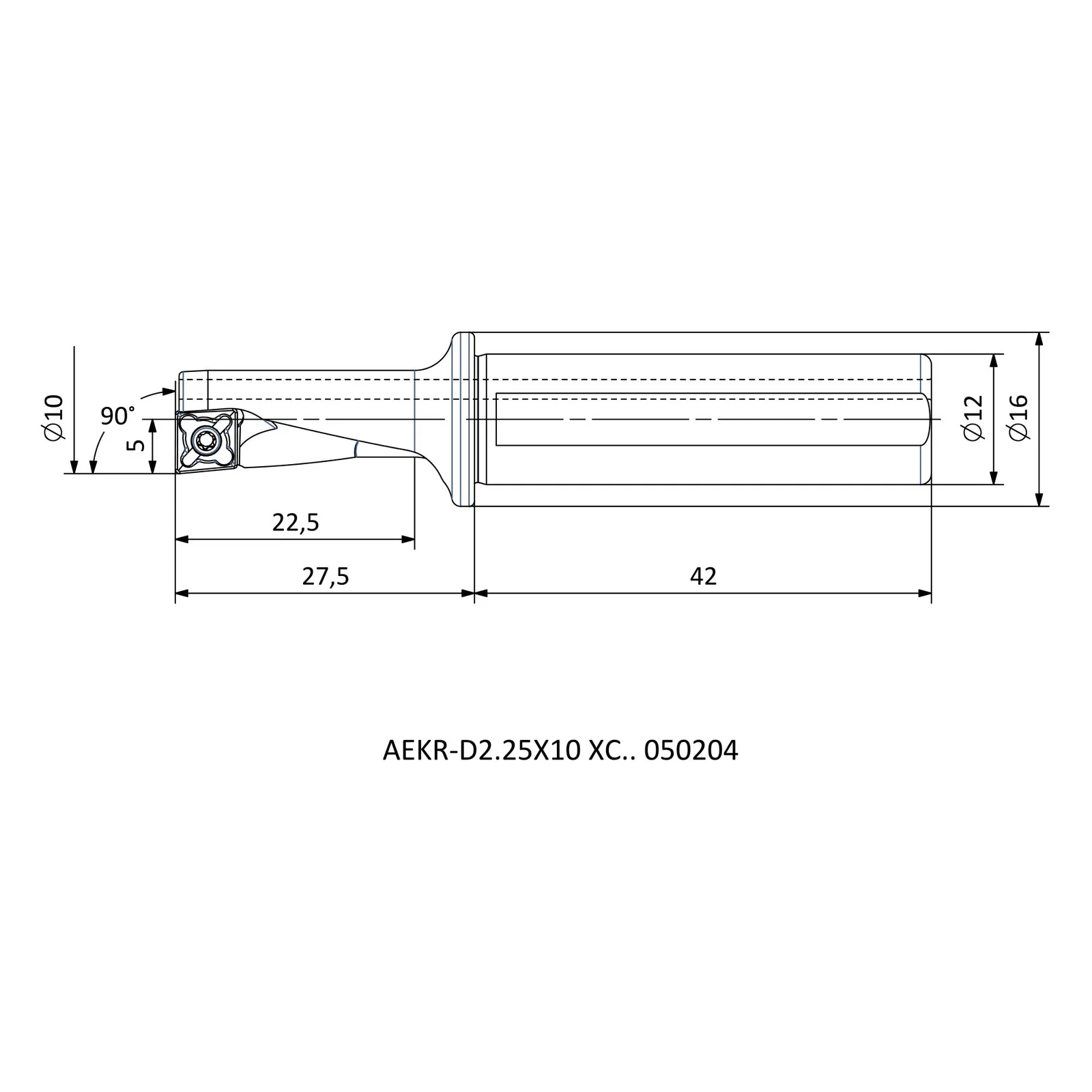

Specifications — AEKR-D2.25X10 XC.. 050204
| Insert Code | Insert designation | XC.. 050204 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 10 |
| DCON | Connection diameter (mm) | 12 |
| DCSFMS | Contact-face diameter, machine side (mm) | 16 |
| LU | Usable length (mm) | 22.5 |
| LPR | Protruding / projection length (mm) | 27.5 |
| LS | Shank length (mm) | 42 |
| WF | Functional width (mm) | 5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in AEKR/L
