AEKR-D2.25X16 XC.. 080304
AEKR/L series · see all 18 sizes
Insert compatibility
This size is built for the insert designation XC.. 080304 (as listed in the catalogue data).

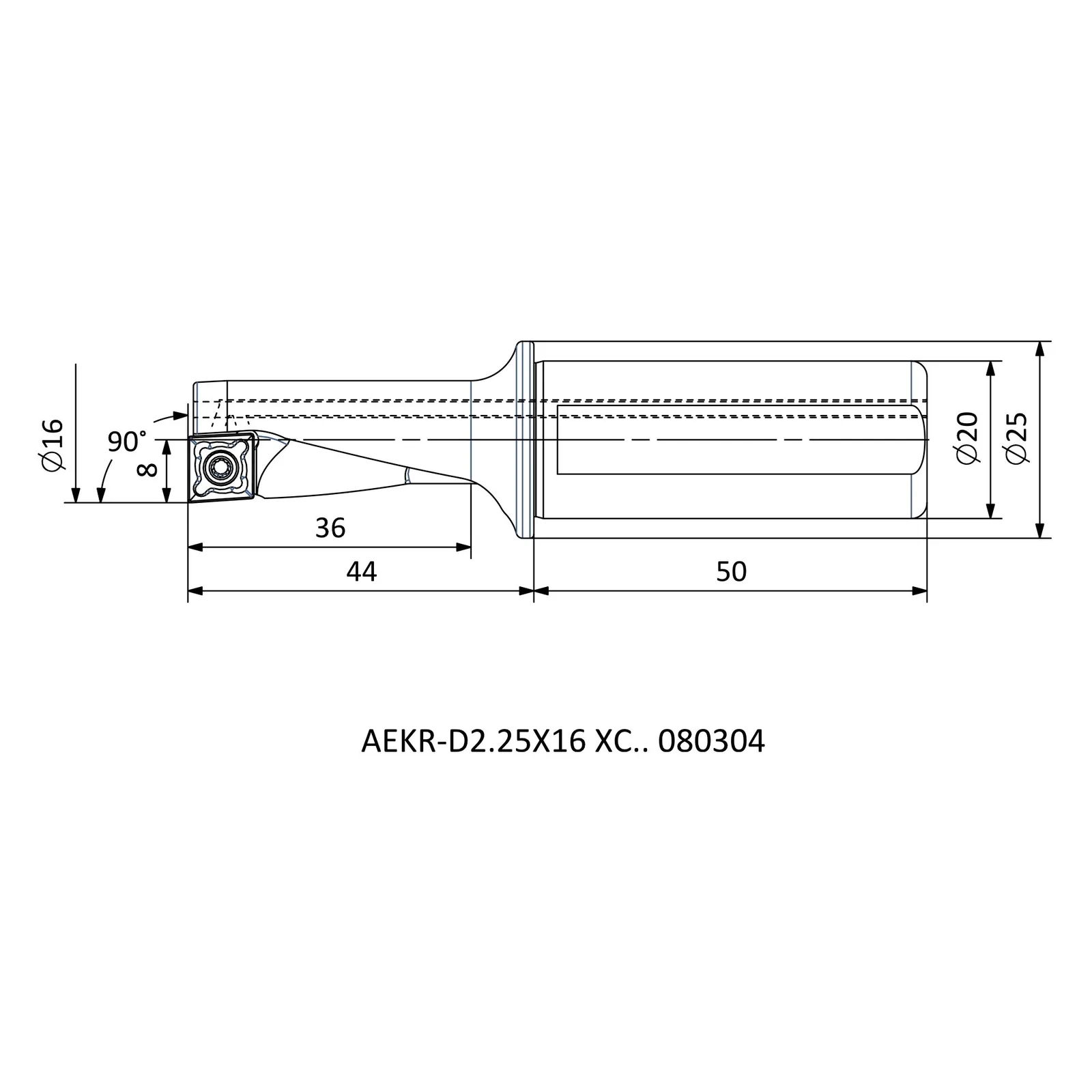

Specifications — AEKR-D2.25X16 XC.. 080304
| Insert Code | Insert designation | XC.. 080304 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 16 |
| DCON | Connection diameter (mm) | 20 |
| DCSFMS | Contact-face diameter, machine side (mm) | 25 |
| LU | Usable length (mm) | 36 |
| LPR | Protruding / projection length (mm) | 44 |
| LS | Shank length (mm) | 50 |
| WF | Functional width (mm) | 8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in AEKR/L
