Tool Holders / Economic Cutting Tools
AEKR-D2.25X18 XC.. 09T304
AEKR/L series · see all 18 sizes
Insert compatibility
This size is built for the insert designation XC.. 09T304 (as listed in the catalogue data).

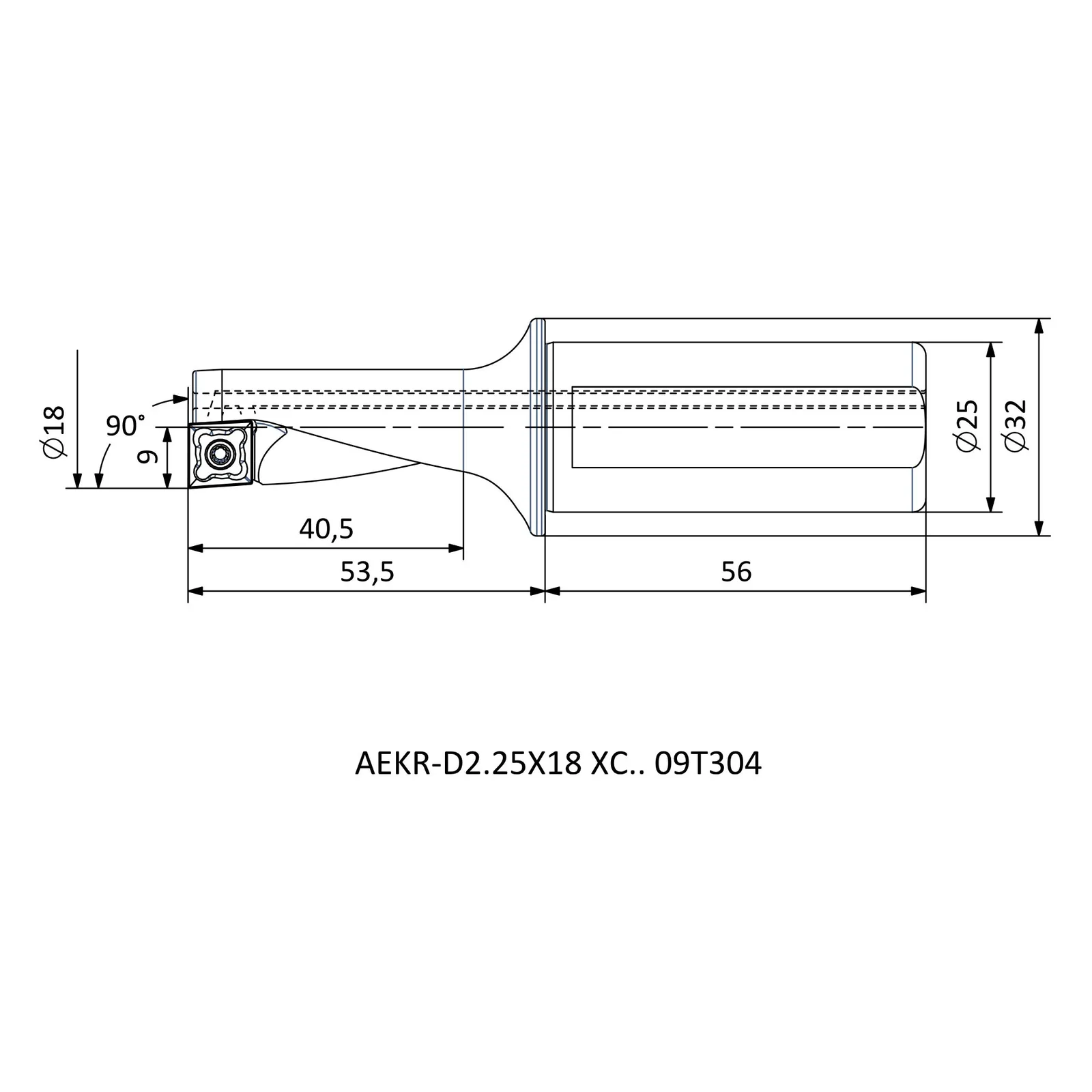

Specifications — AEKR-D2.25X18 XC.. 09T304
| Insert Code | Insert designation | XC.. 09T304 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 18 |
| DCON | Connection diameter (mm) | 25 |
| DCSFMS | Contact-face diameter, machine side (mm) | 32 |
| LU | Usable length (mm) | 40.5 |
| LPR | Protruding / projection length (mm) | 53.5 |
| LS | Shank length (mm) | 56 |
| WF | Functional width (mm) | 9 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 18 sizes in AEKR/L
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Contact-face diameter, machine side (mm) |
|---|---|---|---|---|
| AEKL-D2.25X8 XC.. 040104 | L | 8 | 10 | 12 |
| AEKR-D2.25X8 XC.. 040104 | R | 8 | 10 | 12 |
| AEKL-D2.25X10 XC.. 050204 | L | 10 | 12 | 16 |
| AEKR-D2.25X10 XC.. 050204 | R | 10 | 12 | 16 |
| AEKL-D2.25X12 XC.. 060204 | L | 12 | 16 | 20 |
| AEKR-D2.25X12 XC.. 060204 | R | 12 | 16 | 20 |
| AEKL-D2.25X14 XC.. 070304 | L | 14 | 16 | 20 |
| AEKR-D2.25X14 XC.. 070304 | R | 14 | 16 | 20 |
| AEKL-D2.25X16 XC.. 080304 | L | 16 | 20 | 25 |
| AEKR-D2.25X16 XC.. 080304 | R | 16 | 20 | 25 |
| AEKL-D2.25X18 XC.. 09T304 | L | 18 | 25 | 32 |
| AEKR-D2.25X18 XC.. 09T304 | R | 18 | 25 | 32 |
| AEKL-D2.25X20 XC.. 10T304 | L | 20 | 25 | 32 |
| AEKR-D2.25X20 XC.. 10T304 | R | 20 | 25 | 32 |
| AEKL-D2.25X25 XC.. 130404 | L | 25 | 32 | 40 |
| AEKR-D2.25X25 XC.. 130404 | R | 25 | 32 | 40 |
| AEKL-D2.25X32 XC.. 170504 | L | 32 | 32 | 50 |
| AEKR-D2.25X32 XC.. 170504 | R | 32 | 32 | 50 |
