Tool Holders / S-System Boring Bars
SCLCR/L
52 sizes available · 10 specification fields · standard: ISO
SCLCR/L is a boring bar for internal turning that takes positive 80° rhombic (C-type) inserts. It is listed here in 52 sizes, 7.3–37.5 mm shank height, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: boring, internal turning and back-facing.
Insert compatibility
This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.
- CC.. 0602..
- CC.T 030102
- CC.T 09T3..
- CC.T 0602..
- CC.T 1204..
- CC.. 09T3..
Specifications
| Product code | Insert designation | Cutting direction (hand) | Connection diameter (mm) | Bore diameter (mm) | Functional length (mm) | Functional width (mm) | Usable length (mm) | Shank height (mm) | Minimum working diameter (mm) |
|---|---|---|---|---|---|---|---|---|---|

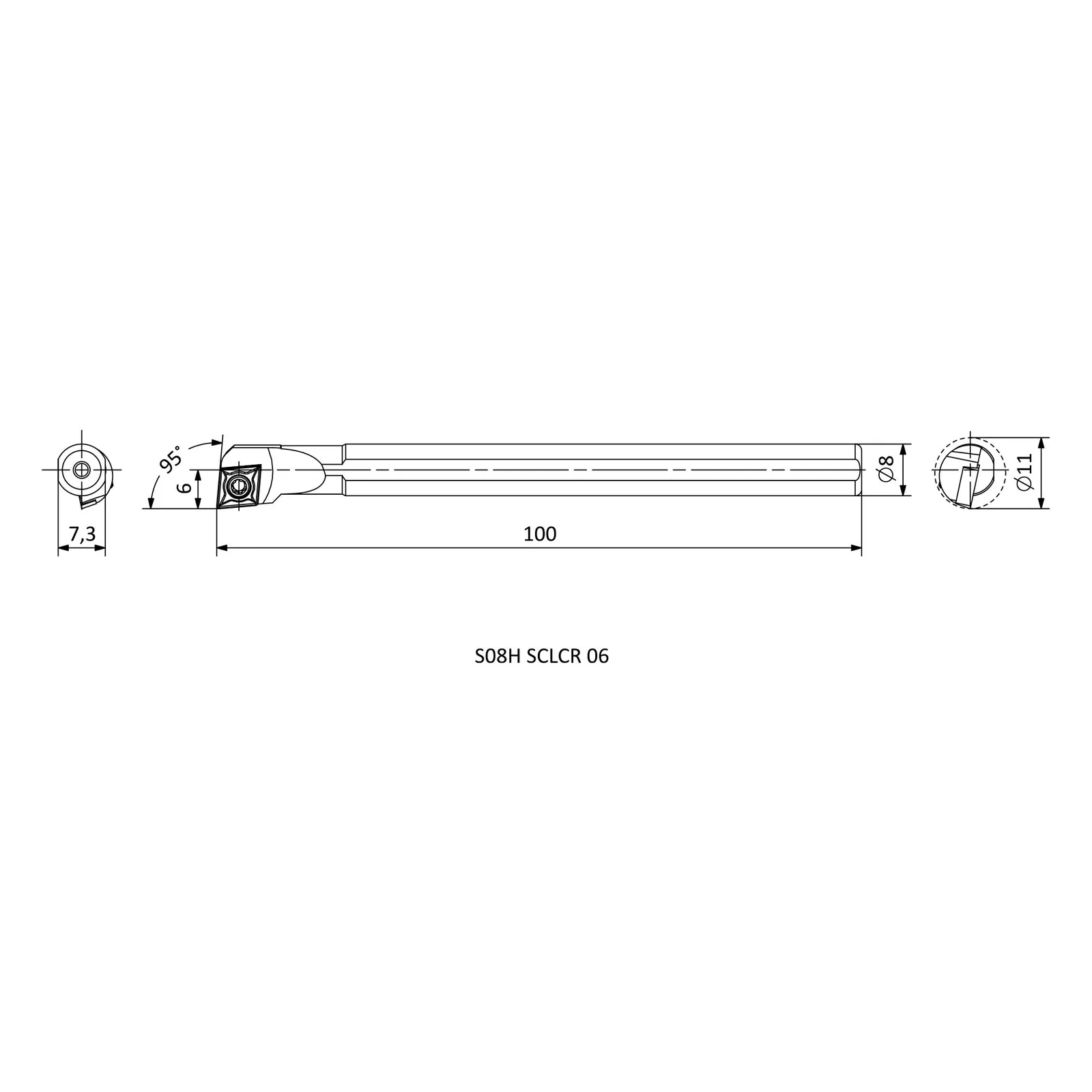

| S08H SCLCR 06 | CC.. 0602.. | R | 8 | 8 | 100 | 6 | 20 | 7.3 | ≥11 |
| S08H SCLCL 06 | CC.. 0602.. | L | 8 | 8 | 100 | 6 | 20 | 7.3 | ≥11 |
| S10K SCLCR 06 | CC.. 0602.. | R | 10 | 10 | 125 | 7 | 25 | 9 | ≥13 |
| S10K SCLCL 06 | CC.. 0602.. | L | 10 | 10 | 125 | 7 | 25 | 9 | ≥13 |
| S12K SCLCR 06 | CC.. 0602.. | R | 12 | 12 | 125 | 9 | 25 | 11 | ≥16 |
| S12K SCLCL 06 | CC.. 0602.. | L | 12 | 12 | 125 | 9 | 25 | 11 | ≥16 |
| S0508H SCLCL 03 | CC.T 030102 | L | 8 | 5 | 100 | 3 | 18 | 7.3 | ≥6 |
| S16P SCLCR 09 | CC.T 09T3.. | R | 16 | 16 | 170 | 11 | 35 | 14.8 | ≥20 |
| S16P SCLCL 09 | CC.T 09T3.. | L | 16 | 16 | 170 | 11 | 35 | 14.8 | ≥20 |
| S20S SCLCL 09 | CC.T 09T3.. | L | 20 | 19.5 | 250 | 13 | 40 | 18.3 | ≥25 |
| S20S SCLCR 09 | CC.T 09T3.. | R | 20 | 19.5 | 250 | 13 | 40 | 18.3 | ≥25 |
| S16R SCLCL 09 | CC.T 09T3.. | L | 16 | 15.5 | 200 | 11 | 35 | 14.8 | ≥20 |
| S16R SCLCR 09 | CC.T 09T3.. | R | 16 | 15.5 | 200 | 11 | 35 | 14.8 | ≥20 |
| S12M SCLCL 09 | CC.T 09T3.. | L | 12 | 11.5 | 150 | 9 | 30 | 11 | ≥16 |
| S12M SCLCR 09 | CC.T 09T3.. | R | 112 | 11.5 | 150 | 9 | 30 | 11 | ≥16 |
| S08M SCLCL 06 | CC.T 0602.. | L | 8 | 7.5 | 150 | 6 | 20 | 7.3 | ≥11 |
| S08M SCLCR 06 | CC.T 0602.. | R | 8 | 7.5 | 150 | 6 | 20 | 7.3 | ≥11 |
| S08K SCLCL 06 | CC.T 0602.. | L | 8 | 7.5 | 125 | 6 | 20 | 7.3 | ≥11 |
| S08K SCLCR 06 | CC.T 0602.. | R | 8 | 7.5 | 125 | 6 | 20 | 7.3 | ≥11 |
| S0508H SCLCR 03 | CC.T 030102 | R | 8 | 5 | 100 | 3 | 18 | 7.3 | ≥6 |
| S0608H SCLCL 06 | CC.T 0602.. | L | 8 | 6 | 100 | 4.5 | 25 | 7.3 | ≥8 |
| S0608H SCLCR 06 | CC.T 0602.. | R | 8 | 6 | 100 | 4.5 | 25 | 7.3 | ≥8 |
| A32S SCLCR 09 | CC.T 09T3.. | R | 32 | 32 | 250 | 22 | 60 | 30 | ≥40 |
| A20P SCLCR 09 | CC.T 09T3.. | R | 20 | 20 | 170 | 13 | 40 | 18.3 | ≥25 |
| A25R SCLCR 12 | CC.T 1204.. | L | 25 | 25 | 200 | 17 | 50 | 23 | ≥32 |
| A20P SCLCL 09 | CC.T 09T3.. | L | 20 | 20 | 170 | 13 | 40 | 18.3 | ≥25 |
| A25R SCLCL 12 | CC.T 1204.. | R | 25 | 25 | 200 | 17 | 50 | 23 | ≥32 |
| A25R SCLCR 09 | CC.T 09T3.. | R | 25 | 25 | 200 | 17 | 50 | 23 | ≥32 |
| A32S SCLCL 09 | CC.T 09T3.. | L | 32 | 32 | 250 | 22 | 60 | 30 | ≥40 |
| A25R SCLCL 09 | CC.T 09T3.. | L | 25 | 25 | 200 | 17 | 50 | 23 | ≥32 |
| S20R SCLCR 09 | CC.T 09T3.. | R | 20 | 20 | 200 | 13 | 40 | 18.3 | ≥25 |
| S25S SCLCL 12 | CC.T 1204.. | L | 25 | 25 | 250 | 17 | 50 | 23 | ≥32 |
| S12K SCLCR 09 | CC.T 09T3.. | R | 12 | 12 | 125 | 9 | 30 | 11 | ≥16 |
| S25S SCLCR 09 | CC.. 09T3.. | R | 25 | 25 | 250 | 17 | 50 | 23 | ≥32 |
| S25S SCLCL 09 | CC.. 09T3.. | L | 25 | – | 250 | 17 | – | 23 | – |
| S32T SCLCR 12 | CC.T 1204.. | R | 32 | 32 | 300 | 22 | 60 | 30 | ≥40 |
| S40U SCLCL 12 | CC.T 1204.. | L | 40 | 40 | 350 | 27 | 70 | 37.5 | ≥50 |
| S40U SCLCR 12 | CC.T 1204.. | R | 40 | 40 | 350 | 27 | 70 | 37.5 | ≥50 |
| S12K SCLCL 09 | CC.T 09T3.. | L | 12 | 12 | 125 | 9 | 30 | 11 | ≥16 |
| S1416P SCLCL 09 | CC.T 09T3.. | L | 16 | 14 | 170 | 9.5 | 45 | 14.8 | ≥17 |
| S1620R SCLCR 09 | CC.T 09T3.. | R | 20 | 16 | 200 | 11 | 50 | 18.3 | ≥20 |
| S16P SCLCL 06 | CC.T 0602.. | L | 16 | 16 | 170 | 11 | 35 | 14.8 | ≥20 |
| S20R SCLCL 09 | CC.T 09T3.. | L | 20 | 20 | 200 | 13 | 40 | 18.3 | ≥25 |
| S32T SCLCL 12 | CC.T 1204.. | L | 32 | 32 | 300 | 22 | 60 | 30 | ≥40 |
| S1620R SCLCL 09 | CC.T 09T3.. | L | 20 | 16 | 200 | 11 | 50 | 18.3 | ≥20 |
| S16P SCLCR 06 | CC.T 0602.. | R | 16 | 16 | 170 | 11 | 35 | 14.8 | ≥20 |
| S1216P SCLCL 06 | CC.T 0602.. | L | 16 | 11.5 | 170 | 9 | 37 | 14.8 | ≥16 |
| S1216P SCLCR 06 | CC.T 0602.. | R | 16 | 11.5 | 170 | 9 | 37 | 14.8 | ≥16 |
| S32T SCLCL 09 | CC.T 09T3.. | L | 32 | 32 | 300 | 22 | 60 | 30 | ≥40 |
| S1416P SCLCR 09 | CC.T 09T3.. | R | 16 | 14 | 170 | 9.5 | 45 | 14.8 | ≥17 |
| S25S SCLCR 12 | CC.T 1204.. | R | 25 | 25 | 250 | 17 | 50 | 23 | ≥32 |
| S32T SCLCR 09 | CC.T 09T3.. | R | 32 | 32 | 300 | 22 | 60 | 30 | ≥40 |
Column codes
- Insert Code — Insert designation
- Product Direction — Cutting direction (hand)
- DCON — Connection diameter (mm)
- BD — Bore diameter (mm)
- LF — Functional length (mm)
- WF — Functional width (mm)
- LU=OHN — Usable length (mm)
- H — Shank height (mm)
- D min — Minimum working diameter (mm)
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
