Tool Holders / S-System Boring Bars

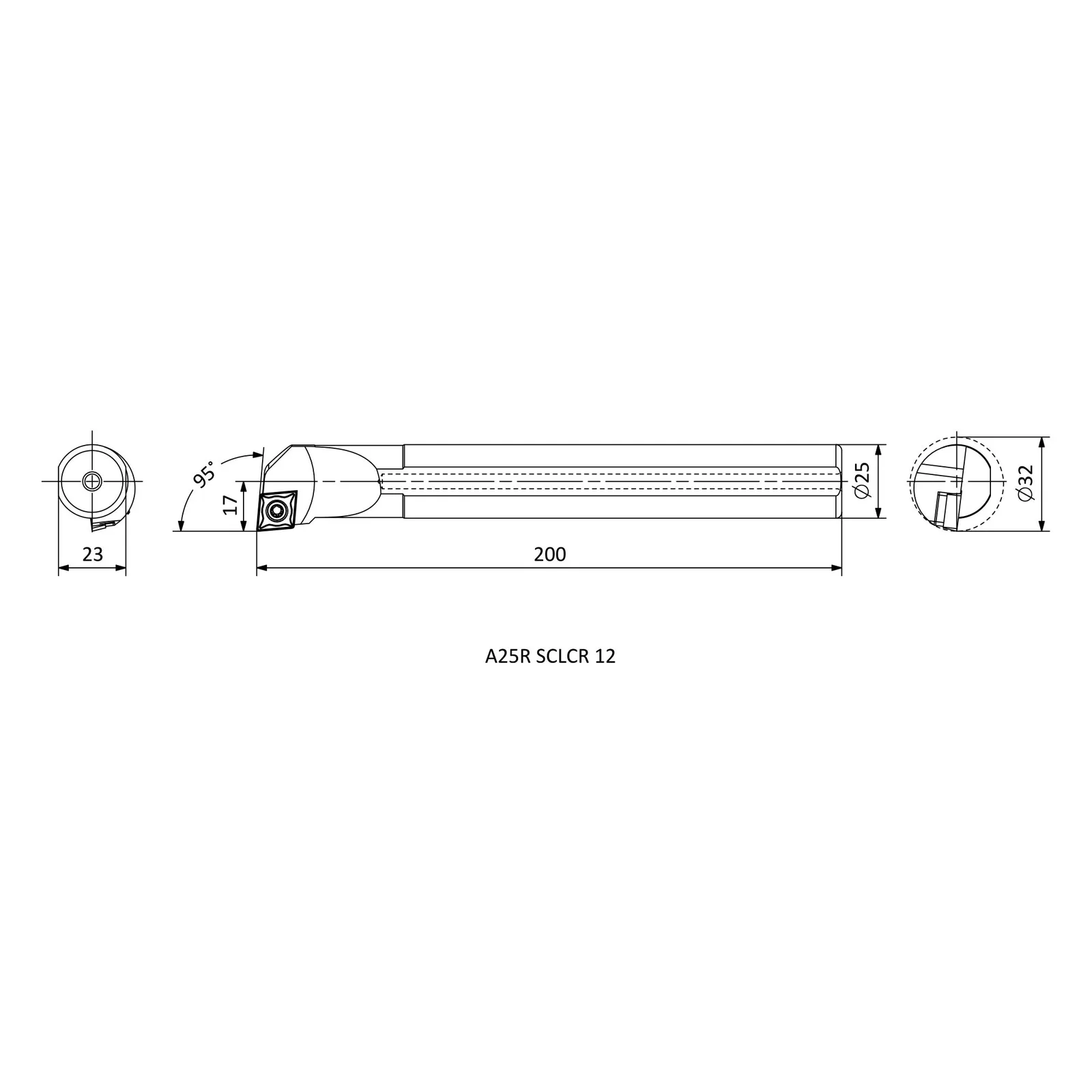

A25R SCLCR 12

Name: A25R SCLCR 12
Brand: Axior
SKU: A25R SCLCR 12

SCLCR/L series · see all 52 sizes

This size is built for the insert designation CC.T 1204 (as listed in the catalogue data).

Specifications — A25R SCLCR 12

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Connection diameter (mm)	Bore diameter (mm)	Functional length (mm)
S08H SCLCR 06	R	8	8	100
S08H SCLCL 06	L	8	8	100
S10K SCLCR 06	R	10	10	125
S10K SCLCL 06	L	10	10	125
S12K SCLCR 06	R	12	12	125
S12K SCLCL 06	L	12	12	125
S0508H SCLCL 03	L	8	5	100
S16P SCLCR 09	R	16	16	170
S16P SCLCL 09	L	16	16	170
S20S SCLCL 09	L	20	19.5	250
S20S SCLCR 09	R	20	19.5	250
S16R SCLCL 09	L	16	15.5	200
S16R SCLCR 09	R	16	15.5	200
S12M SCLCL 09	L	12	11.5	150
S12M SCLCR 09	R	112	11.5	150
S08M SCLCL 06	L	8	7.5	150
S08M SCLCR 06	R	8	7.5	150
S08K SCLCL 06	L	8	7.5	125
S08K SCLCR 06	R	8	7.5	125
S0508H SCLCR 03	R	8	5	100
S0608H SCLCL 06	L	8	6	100
S0608H SCLCR 06	R	8	6	100
A32S SCLCR 09	R	32	32	250
A20P SCLCR 09	R	20	20	170
A25R SCLCR 12	L	25	25	200
A20P SCLCL 09	L	20	20	170
A25R SCLCL 12	R	25	25	200
A25R SCLCR 09	R	25	25	200
A32S SCLCL 09	L	32	32	250
A25R SCLCL 09	L	25	25	200
S20R SCLCR 09	R	20	20	200
S25S SCLCL 12	L	25	25	250
S12K SCLCR 09	R	12	12	125
S25S SCLCR 09	R	25	25	250
S25S SCLCL 09	L	25	–	250
S32T SCLCR 12	R	32	32	300
S40U SCLCL 12	L	40	40	350
S40U SCLCR 12	R	40	40	350
S12K SCLCL 09	L	12	12	125
S1416P SCLCL 09	L	16	14	170
S1620R SCLCR 09	R	20	16	200
S16P SCLCL 06	L	16	16	170
S20R SCLCL 09	L	20	20	200
S32T SCLCL 12	L	32	32	300
S1620R SCLCL 09	L	20	16	200
S16P SCLCR 06	R	16	16	170
S1216P SCLCL 06	L	16	11.5	170
S1216P SCLCR 06	R	16	11.5	170
S32T SCLCL 09	L	32	32	300
S1416P SCLCR 09	R	16	14	170
S25S SCLCR 12	R	25	25	250
S32T SCLCR 09	R	32	32	300
