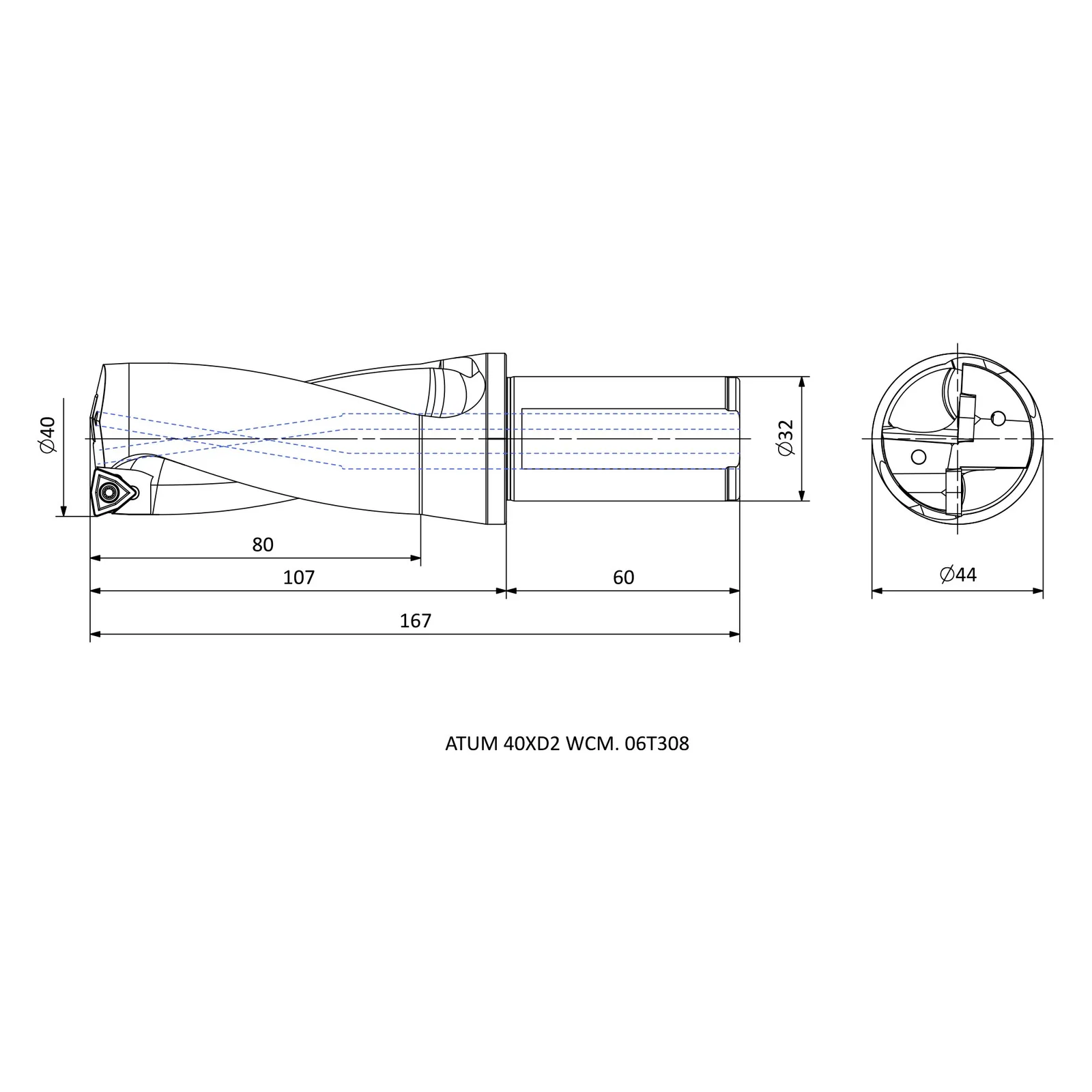

ATUM 40XD2 WCM. 06T308

Name: ATUM 40XD2 WCM. 06T308
Brand: Axior
SKU: ATUM 40XD2 WCM. 06T308

ATUM XD2 WCM1 series · see all 32 sizes

This size is built for the insert designation WCM. 06T308 (as listed in the catalogue data).

Specifications — ATUM 40XD2 WCM. 06T308

Insert Code	Insert designation	WCM. 06T308
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	40
DCON	Connection diameter (mm)	32
DCSFMS	Contact-face diameter, machine side (mm)	44
OAL	Overall length (mm)	167
LU	Usable length (mm)	80
LPR	Protruding / projection length (mm)	107
LS	Shank length (mm)	60
X max [mm]	Adjustment range, max (mm)	1
X min [mm]	Adjustment range, min (mm)	42

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
