ATUM 47XD2 WCM. 080412

Name: ATUM 47XD2 WCM. 080412
Brand: Axior
SKU: ATUM 47XD2 WCM. 080412

ATUM XD2 WCM1 series · see all 32 sizes

This size is built for the insert designation WCM. 080412 (as listed in the catalogue data).

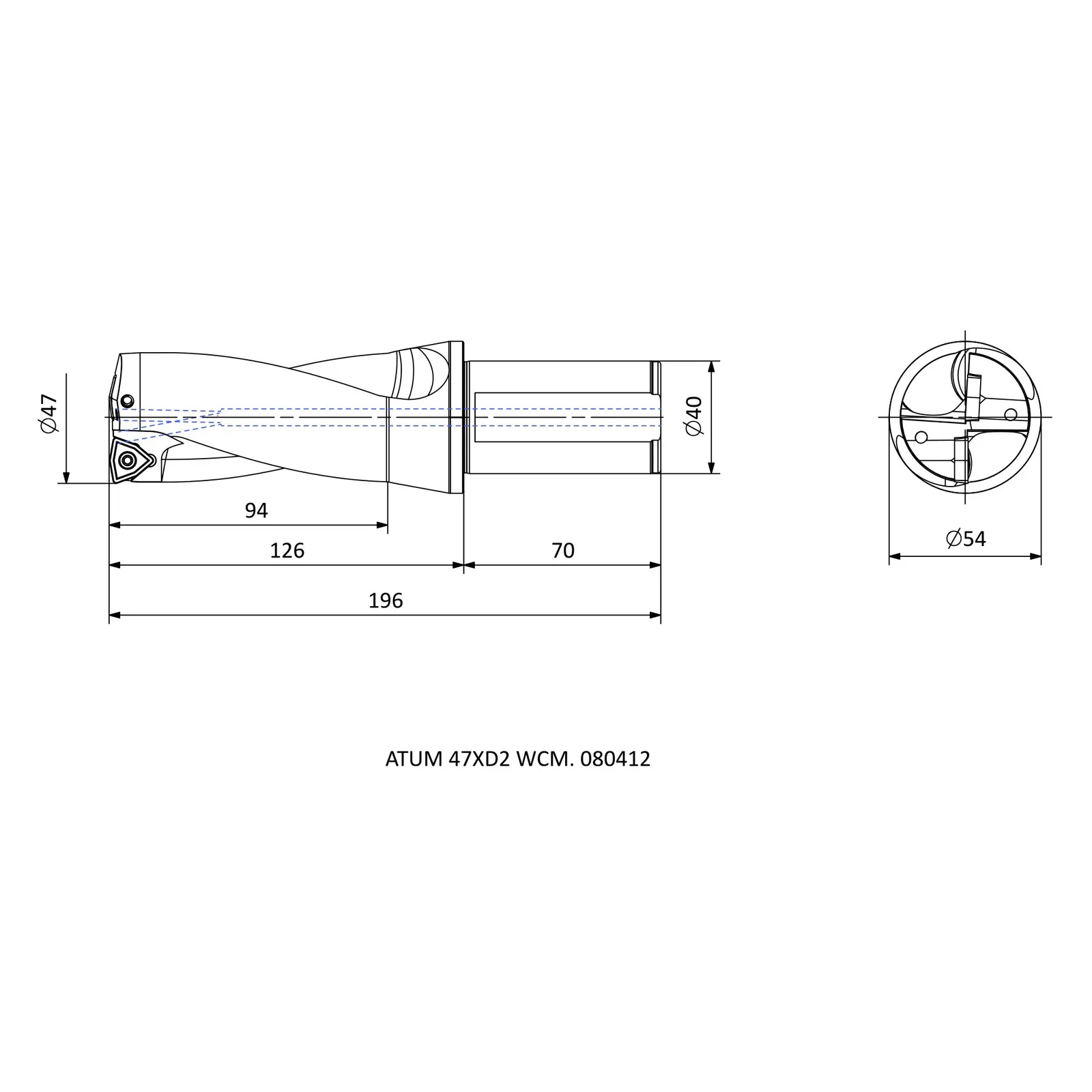

Specifications — ATUM 47XD2 WCM. 080412

Insert Code	Insert designation	WCM. 080412
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	47
DCON	Connection diameter (mm)	40
DCSFMS	Contact-face diameter, machine side (mm)	54
OAL	Overall length (mm)	196
LU	Usable length (mm)	94
LPR	Protruding / projection length (mm)	126
LS	Shank length (mm)	70
X max [mm]	Adjustment range, max (mm)	2.8
X min [mm]	Adjustment range, min (mm)	52.6

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 30.5XD2 WCM. 06T308	R	30.5	32	44
ATUM 30XD2 WCM. 06T308	R	30	32	44
ATUM 31XD2 WCM. 06T308	R	31	32	44
ATUM 32XD2 WCM. 06T308	R	32	32	44
ATUM 33XD2 WCM. 06T308	R	33	32	44
ATUM 34XD2 WCM. 06T308	R	34	32	44
ATUM 35XD2 WCM. 06T308	R	35	32	44
ATUM 36XD2 WCM. 06T308	R	36	32	44
ATUM 37XD2 WCM. 06T308	R	37	32	44
ATUM 38XD2 WCM. 06T308	R	38	32	44
ATUM 39XD2 WCM. 06T308	R	39	32	44
ATUM 40XD2 WCM. 06T308	R	40	32	44
ATUM 41XD2 WCM. 06T308	R	41	32	44
ATUM 42XD2 WCM. 06T308	R	42	32	44
ATUM 43XD2 WCM. 06T308	R	43	32	44
ATUM 44XD2 WCM. 06T308	R	44	32	44
ATUM 45XD2 WCM. 080412	R	45	40	54
ATUM 46XD2 WCM. 080412	R	46	40	54
ATUM 47XD2 WCM. 080412	R	47	40	54
ATUM 48XD2 WCM. 080412	R	48	40	54
ATUM 49XD2 WCM. 080412	R	49	40	54
ATUM 50XD2 WCM. 080412	R	50	40	54
ATUM 51XD2 WCM. 080412	R	51	40	54
ATUM 52XD2 WCM. 080412	R	52	40	54
ATUM 53XD2 WCM. 080412	R	53	40	54
ATUM 54XD2 WCM. 080412	R	54	40	54
ATUM 55XD2 WCM. 080412	R	55	40	54
ATUM 56XD2 WCM. 080412	R	56	40	64
ATUM 57XD2 WCM. 080412	R	57	40	64
ATUM 58XD2 WCM. 080412	R	58	40	64
ATUM 59XD2 WCM. 080412	R	59	40	64
ATUM 60XD2 WCM. 080412	R	60	40	64
