ATUM 48XD2 WCM. 080412

Name: ATUM 48XD2 WCM. 080412
Brand: Axior
SKU: ATUM 48XD2 WCM. 080412

ATUM XD2 WCM1 series · see all 32 sizes

This size is built for the insert designation WCM. 080412 (as listed in the catalogue data).

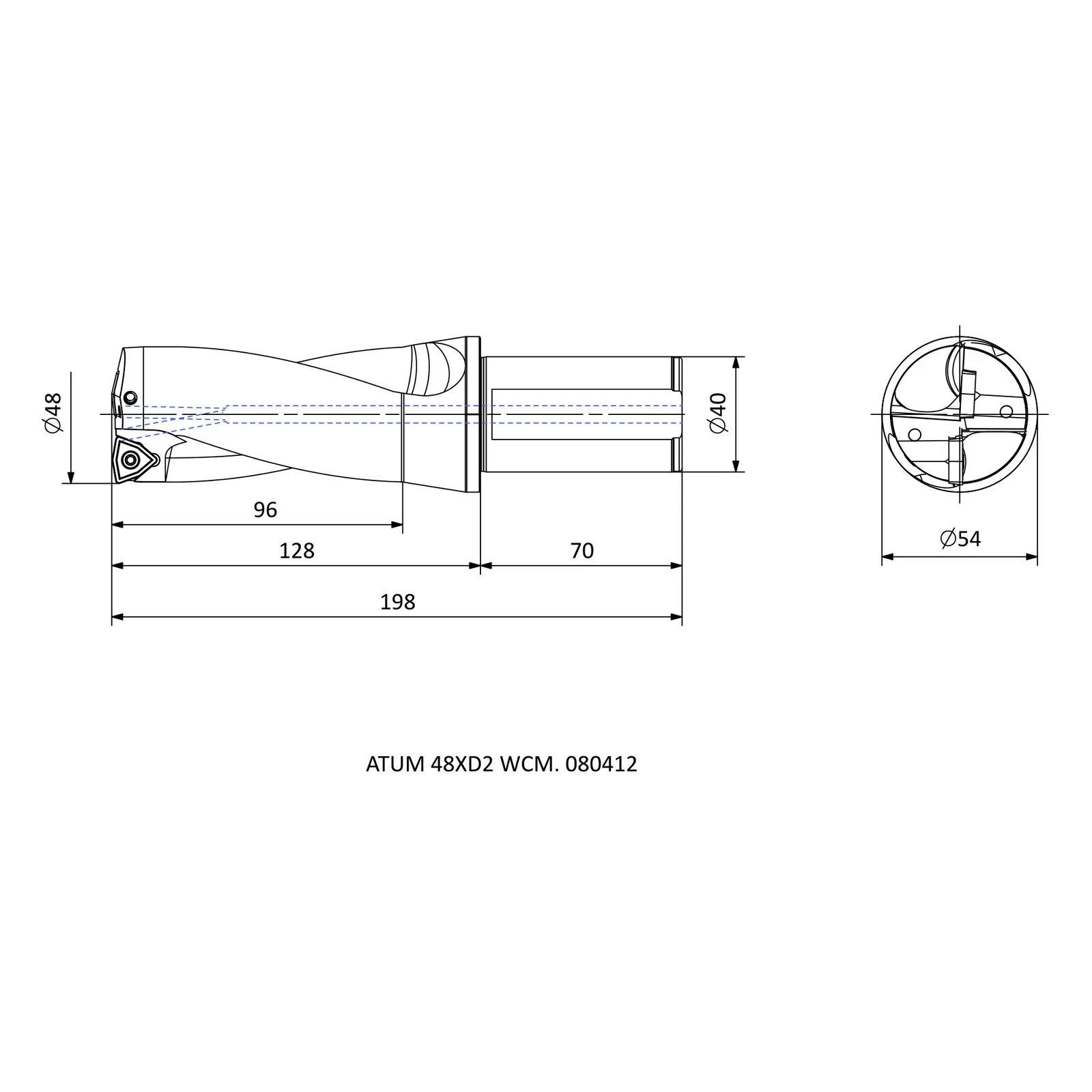

Specifications — ATUM 48XD2 WCM. 080412

Insert Code	Insert designation	WCM. 080412
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	48
DCON	Connection diameter (mm)	40
DCSFMS	Contact-face diameter, machine side (mm)	54
OAL	Overall length (mm)	198
LU	Usable length (mm)	96
LPR	Protruding / projection length (mm)	128
LS	Shank length (mm)	70
X max [mm]	Adjustment range, max (mm)	2.5
X min [mm]	Adjustment range, min (mm)	53

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
