Tool Holders / Atum Drill

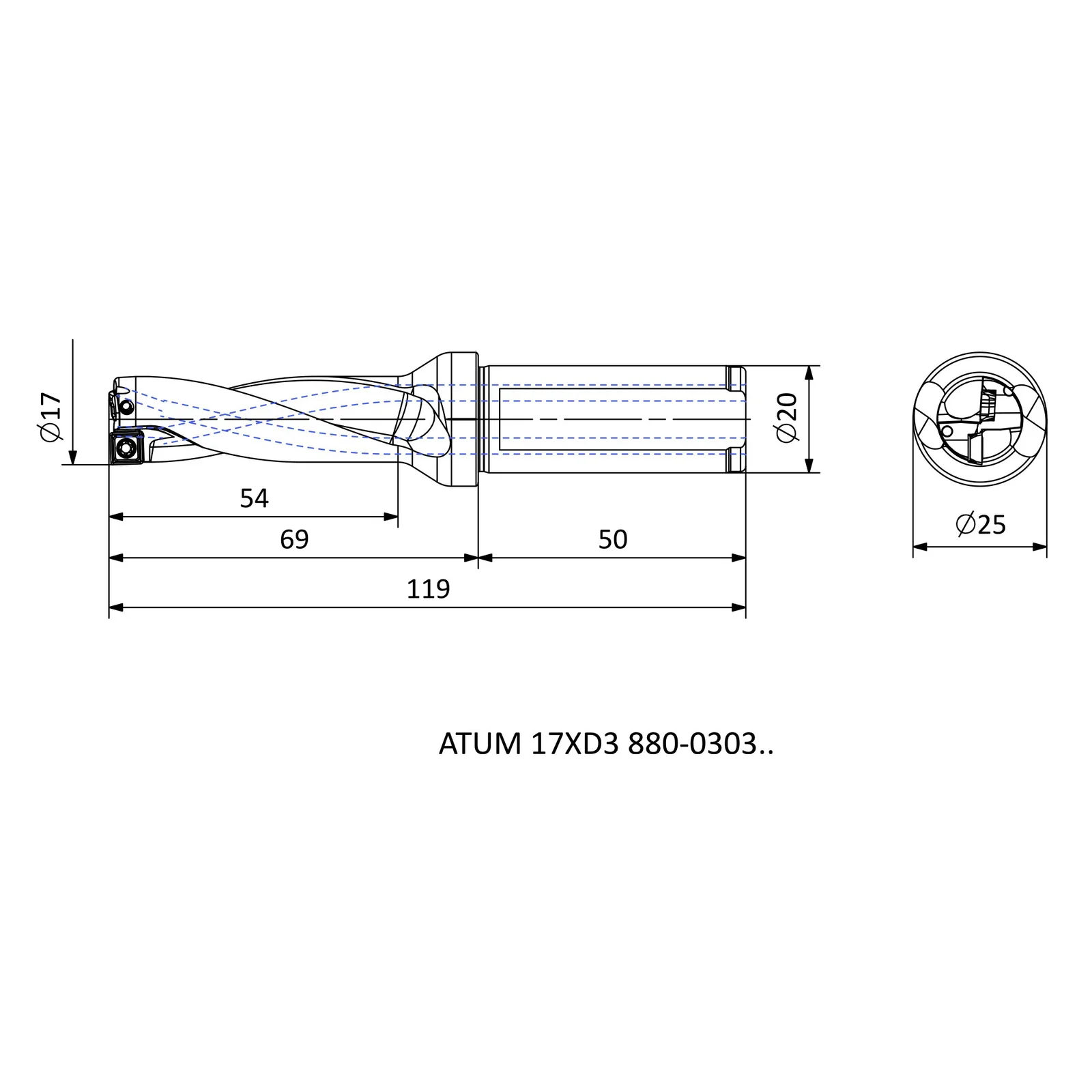

ATUM 17XD3 880-0303..
ATUM XD3 880 series · see all 42 sizes
Insert compatibility
This size is built for the insert designation 880 (as listed in the catalogue data).
Specifications — ATUM 17XD3 880-0303..
| Insert Code | Insert designation | 880-03…C / P |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 17 |
| DCON | Connection diameter (mm) | 20 |
| DCSFMS | Contact-face diameter, machine side (mm) | 25 |
| OAL | Overall length (mm) | 119 |
| LU | Usable length (mm) | 54 |
| LPR | Protruding / projection length (mm) | 69 |
| LS | Shank length (mm) | 50 |
| X max [mm] | Adjustment range, max (mm) | 0.6 |
| X min [mm] | Adjustment range, min (mm) | 18.2 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
