ATUM 48XD3 880-0805..

Name: ATUM 48XD3 880-0805..
Brand: Axior
SKU: ATUM 48XD3 880-0805..

ATUM XD3 880 series · see all 42 sizes

This size is built for the insert designation 880 (as listed in the catalogue data).

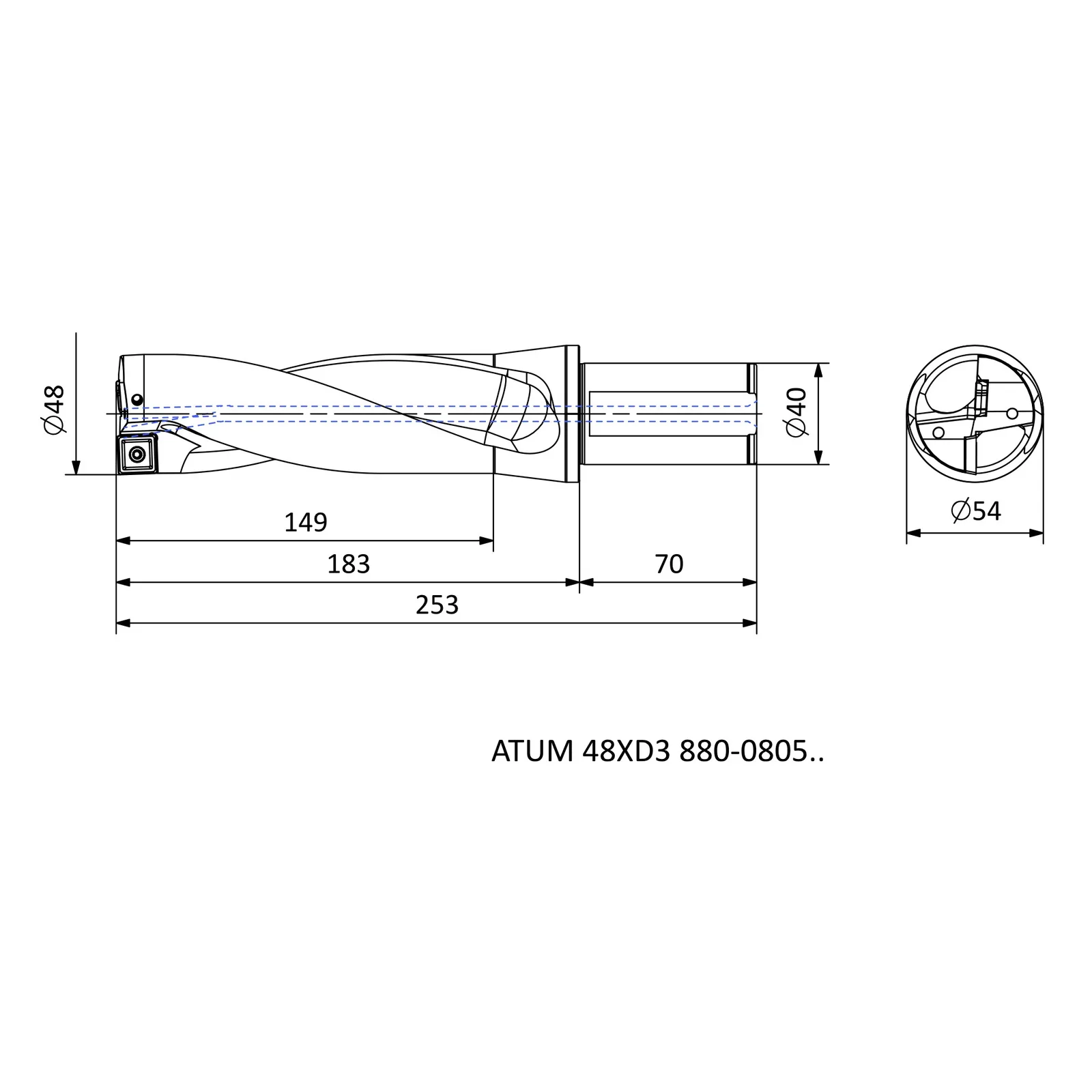

Specifications — ATUM 48XD3 880-0805..

Insert Code	Insert designation	880-08…C / P
Product Direction	Cutting direction (hand)	R
DC	Cutting diameter (mm)	48
DCON	Connection diameter (mm)	40
DCSFMS	Contact-face diameter, machine side (mm)	54
OAL	Overall length (mm)	253
LU	Usable length (mm)	149
LPR	Protruding / projection length (mm)	183
LS	Shank length (mm)	70
X max [mm]	Adjustment range, max (mm)	1
X min [mm]	Adjustment range, min (mm)	50

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Contact-face diameter, machine side (mm)
ATUM 14XD3 880-0202..	R	14	20	25
ATUM 14.5XD3 880-0202	R	14.5	20	25
ATUM 15XD3 880-0202..	R	15	20	25
ATUM 15.5XD3 880-0202..	R	15.5	20	25
ATUM 16XD3 880-0202..	R	16	20	25
ATUM 16.5XD3 880-0303..	R	16.5	20	25
ATUM 17XD3 880-0303..	R	17	20	25
ATUM 17.5XD3 880-0303..	R	17.5	25	32
ATUM 18XD3 880-0303..	R	18	25	32
ATUM 18.5XD3 880-0303..	R	18.5	25	32
ATUM 19XD3 880-0303..	R	19	25	32
ATUM 19.5XD3 880-0303..	R	19.5	25	32
ATUM 20XD3 880-0403..	R	20	25	32
ATUM 20.5XD3 880-0403..	R	20.5	25	32
ATUM 21XD3 880-0403..	R	21	25	32
ATUM 21.5XD3 880-0403..	R	21.5	25	32
ATUM 22XD3 880-0403..	R	22	25	32
ATUM 22.5XD3 880-0403..	R	22.5	25	32
ATUM 23XD3 880-0403..	R	23	25	32
ATUM 23.5XD3 880-0403..	R	23.5	25	34
ATUM 24XD3 880-0503..	R	24	25	32
ATUM 25XD3 880-0503..	R	25	25	32
ATUM 26XD3 880-0503..	R	26	32	44
ATUM 27XD3 880-0503..	R	27	32	44
ATUM 28XD3 880-0503..	R	28	32	44
ATUM 29XD3 880-0503..	R	29	32	44
ATUM 30XD3 880-0604..	R	30	32	44
ATUM 31XD3 880-0604..	R	31	40	54
ATUM 32XD3 880-0604..	R	32	40	54
ATUM 33XD3 880-0604..	R	33	40	54
ATUM 34XD3 880-0604..	R	34	40	54
ATUM 35XD3 880-0604..	R	35	40	54
ATUM 36XD3 880-0704..	R	36	40	54
ATUM 38XD3 880-0704..	R	38	40	54
ATUM 39XD3 880-0704..	R	39	40	54
ATUM 40XD3 880-0704..	R	40	40	54
ATUM 41XD3 880-0704..	R	41	40	54
ATUM 42XD3 880-0704..	R	42	40	54
ATUM 45XD3 880-0805..	R	45	40	54
ATUM 46XD3 880-0805..	R	46	40	54
ATUM 48XD3 880-0805..	R	48	40	54
ATUM 50XD3 880-0805..	R	50	40	54
